The gearbox (Olympus Part No. ZJ856500 + rack AB024100) is a critical component in the back of the BH‑2’s focus system (Microscope Marketplace). It transfers the turning of the coarse-focus knob into smooth, precise wheel movement of the focus rack, which vertically adjusts the stage or body tube. Essentially, it's the central gear train underpinning both coarse and fine focusing on the microscope.

🛠️ Why Gearboxes Wear Out

Over time, the grease inside the gearbox dries up or thickens, especially in older microscopes that haven't been serviced (Microbehunter, YouTube). This causes increased friction, stiffness, and even gear teeth misalignment or damage.

From maintenance forums:

“The lubricant … would have become dry, gluing the collar in place… The gears in this box will become damaged if too much force is applied…” (Microbehunter)

When users force the knobs—often under frustration—it exacerbates wear, cracks gear teeth, and damages the fine-focus planetary assembly. This leads to “hysteresis” (lag/backlash) and stiff operation .

⚠️ Why You Should Never Force It

• Forcing the gears can permanently damage them or strip teeth
• The gearbox is meant to spin freely—stiffness indicates dry or hardened grease
• Forced motion affects both accuracy and repeatability in focusing, critical for microscopy work

If your focus feels stiff, gritty, or jumpy, it's a sign to service or replace the gearbox—don’t power through it.

🎥 How to Replace the Gearbox

Step-by-step overview from the official Munday Scientific video:

Olympus BH2 Gearbox Replacement | Munday Scientific

• Access the rear panel of the microscope

• Remove the old gearbox (held by four small screws)

• Clean internal parts and inspect gear teeth and shims

• Install the new gearbox, ensuring rack-and-gear alignment

• Lubricate properly before reassembly

Watch the video in full for visual guidance and expert tips.

🛒 Where to Buy a Quality Replacement

We stock the OEM-quality kit that comes cleaned, lubricated, and shimmed—ready for reliable operation:

Olympus Microscope BH‑2 Gear Box – $195.00

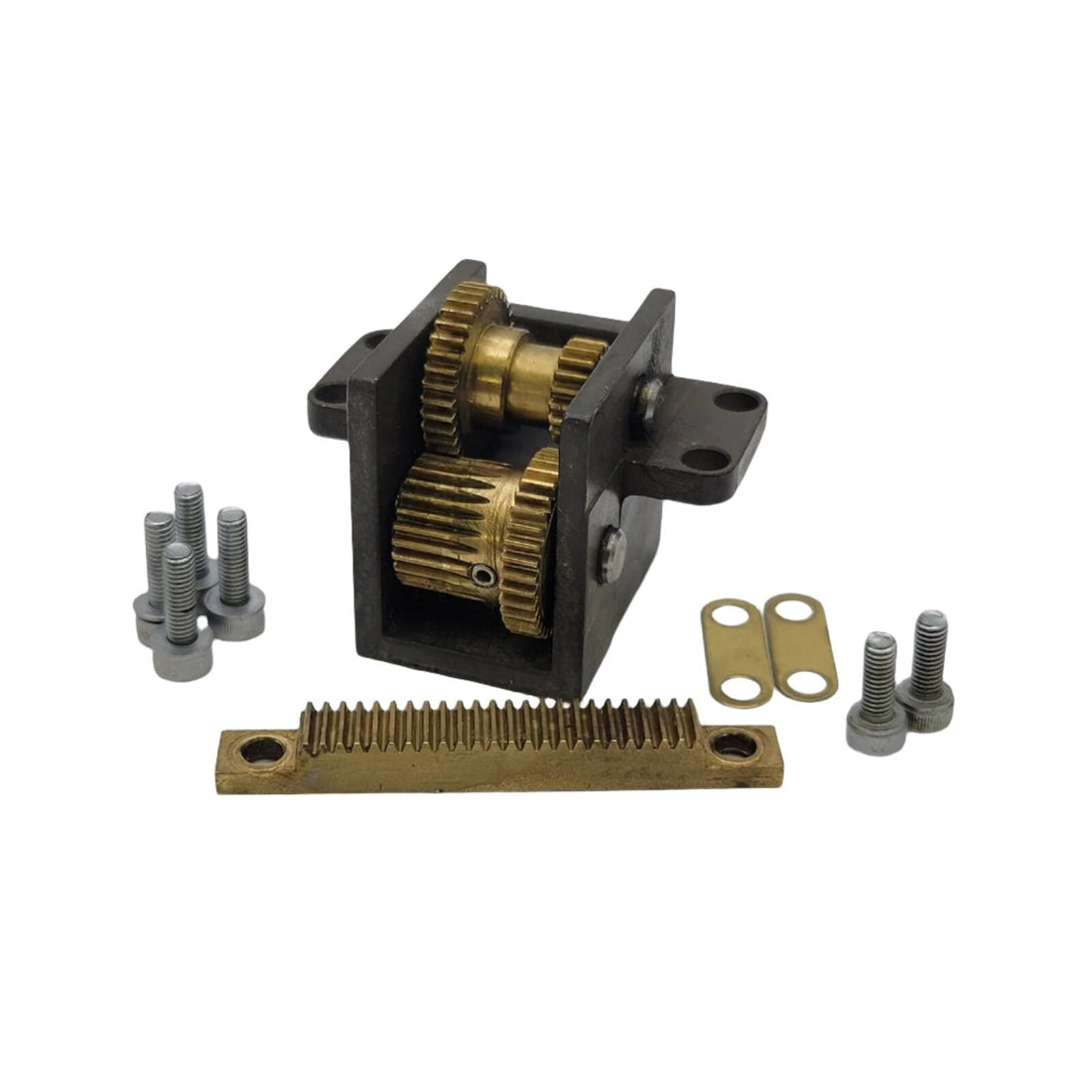

This includes the gearbox, rack, screws, and shims. Installed by a factory-trained Olympus technician, it ensures a precise fit and smooth focus performance.

🧼 Pro Tips for Long-Term Focus Mechanism Health

• Inspect annually: Open the back, check for dry grease or damage

• Clean & lubricate: Use light machine oil; re-grease cleaned gears

• Replace gearbox: If gears are chipped or excessively stiff, swap it out

• Avoid forcing the mechanism—smooth operation is key

📝 Conclusion

The BH‑2 focus gearbox is absolutely essential for maintaining sharp, accurate control of your microscope. When its internal grease dries out, the system stiffens and can fail completely—especially under stress. With routine service or timely replacement using our pre-lubricated kit, you’ll keep the BH‑2 performing reliably for years to come.

If you’re seeing stiffness, backlash, or grinding in your focus turns, start with this gearbox replacement. And remember: don’t force it—smooth focus is the sign of healthy mechanics.

Let us know if you need assistance—your BH‑2 deserves to feel this good again!
