A Great Microscope for Neuroscience, Electrophysiology, and Patch-Clamp Research

If you've ever worked in an electrophysiology laboratory, you know just how specialized some of these microscope setups can be. Between the microscope, water-immersion objectives, micromanipulators, cameras, stages, and all the other accessories, building a complete patch-clamp rig can get expensive in a hurry!

But here's the good news: you don't necessarily have to start with a brand-new microscope.

At Munday Scientific and Microscope Marketplace, we regularly work with Olympus BX51WI water-immersion microscopes. These are excellent platforms for electrophysiology and patch-clamp applications, and one of our favorite things about them is how customizable they are.

We have a large selection of Olympus microscope parts, components, objectives, stages, condensers, and accessories that can help researchers build or upgrade a system without spending a fortune.

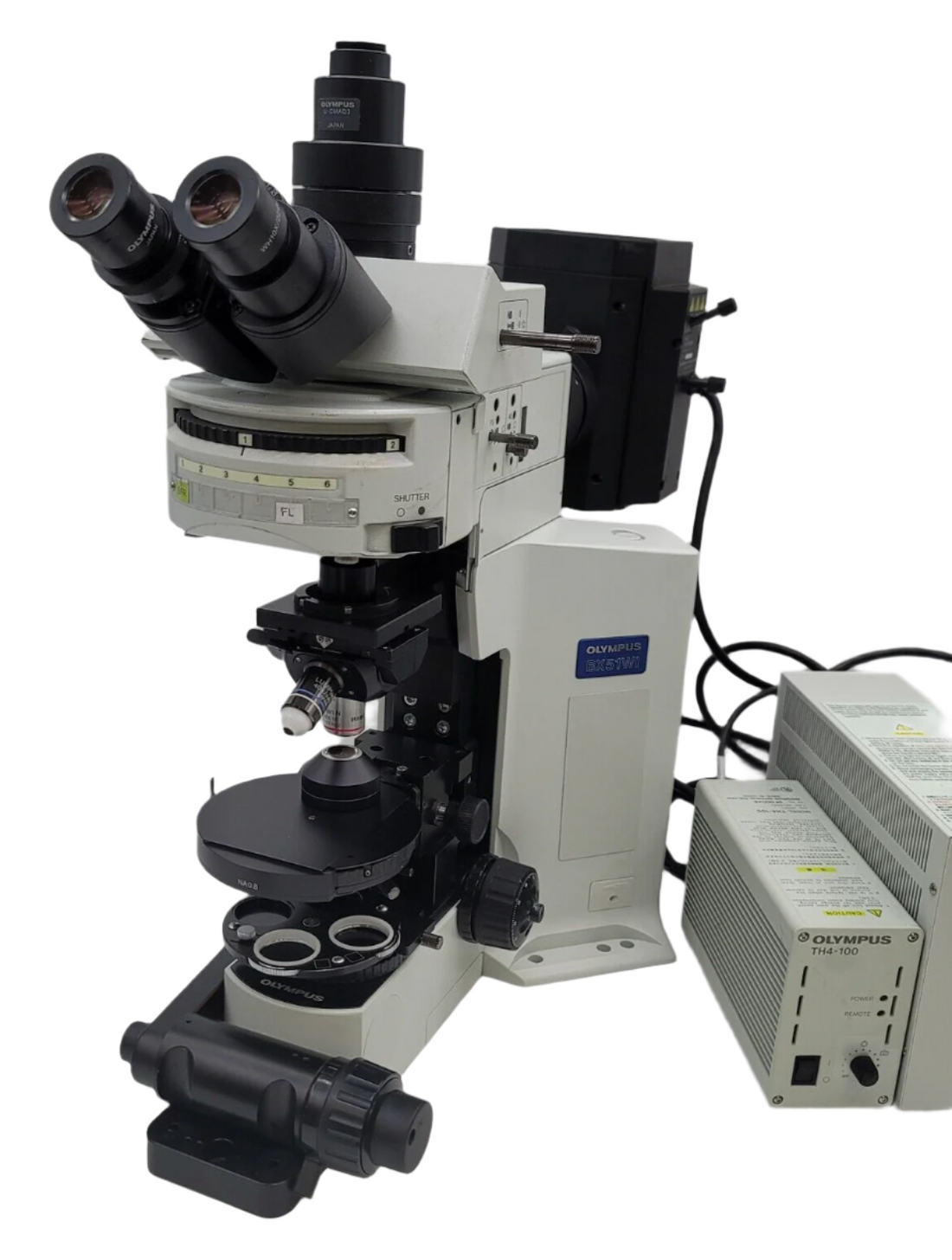

Today, we're showing off an Olympus BX51WI microscope that we're configuring for a customer. It's a great example of how you can build a specialized research microscope around a proven platform.

Watch Our Olympus BX51WI Electrophysiology Microscope Walkthrough

In our video, Chad takes you through an Olympus BX51 water-immersion microscope and discusses the components used to build a custom electrophysiology setup.

Watch the video here:

We enjoy putting these microscopes together because no two research laboratories need exactly the same configuration.

Some customers already have their micromanipulators and recording equipment and just need a microscope frame. Others need the observation head, stage, condenser, water-immersion objectives, or additional optical components.

That's where having access to a large inventory of individual microscope parts can really make a difference.

What Is Electrophysiology?

Electrophysiology is the study of the electrical properties of biological cells and tissues.

Researchers use electrophysiology techniques to understand how cells generate, transmit, and respond to electrical signals.

It's particularly important in neuroscience, where scientists study neurons and how they communicate with one another.

Electrophysiology is also used in cardiac research, ion-channel studies, pharmacology, and other areas of biological science.

One of the most widely used electrophysiology techniques is patch-clamp recording.

What Is Patch-Clamp Microscopy?

Patch-clamp recording allows researchers to measure electrical currents across cell membranes or changes in membrane voltage.

In a typical experiment, a researcher uses a microscope to identify a cell and carefully position a very fine glass recording pipette against its membrane.

The pipette is connected to specialized electronic recording equipment.

With the proper setup, researchers can investigate ion channels, membrane potentials, synaptic activity, and other electrical properties of cells.

Imagine a neuroscience laboratory studying how individual neurons respond to different chemical compounds.

The researcher needs to locate a particular neuron, position the recording pipette precisely, and maintain a stable view of the sample.

That's where a properly configured electrophysiology microscope becomes so important.

The microscope provides the optical access needed to identify and approach cells, while the recording electronics measure their electrical activity.

Why Water-Immersion Microscopy Is Important

Water-immersion and water-dipping objectives are commonly used in electrophysiology because researchers often observe living specimens in aqueous solutions.

Unlike conventional dry objectives, appropriate water-dipping objectives are designed to image specimens through water-based media.

These objectives can provide the working distance and optical access needed for experiments involving brain slices, neurons, and other living tissue preparations.

The Olympus BX51WI is particularly useful because its design accommodates specialized water-dipping objectives and the additional equipment commonly found around an electrophysiology recording chamber.

Advantages of Water-Immersion Microscopy

• Suitable for observing specimens in aqueous media

• Long-working-distance objective options

• Optical access for positioning recording electrodes

• Compatibility with specialized electrophysiology stages

• Options for infrared imaging and differential interference contrast

• Useful for neuroscience and live-tissue research

For many laboratories, a 40X or 60X water-dipping objective is an important component of the setup.

The exact objective should be selected based on the specimen, working distance, numerical aperture, imaging technique, and recording chamber.

Why the Olympus BX51WI Is Such a Popular Electrophysiology Platform

The Olympus BX51WI is an upright fixed-stage microscope designed for demanding research applications.

It's a well-established platform that has been used in neuroscience and electrophysiology laboratories for years.

One of its biggest advantages is its modular design.

Researchers can configure the microscope with different optical components, stages, illumination systems, objectives, and observation heads.

The microscope is designed to provide access around the specimen for equipment such as micromanipulators, recording electrodes, and perfusion systems.

Common Olympus BX51WI Components

Depending on the application, a BX51WI setup may include:

• Olympus BX51WI microscope frame

• Trinocular observation head

• Water-dipping objectives

• Fixed or specialized bridge stage

• Condenser assembly

• Nosepiece or swing-slide objective holder

• Transmitted-light illumination

• Infrared imaging components

• DIC optical components

• Camera adapter and microscope camera

• Intermediate optical components, including compatible dual-port units

For example, Olympus U-DP-series dual-port components may be useful in certain custom imaging configurations, but the correct part depends on the optical path and camera arrangement.

The key is making sure all the components work together.

Building a Patch-Clamp Microscope on a Budget

Here's where things get interesting.

Many laboratories assume that purchasing a patch-clamp microscope means buying an entirely new system.

That isn't always necessary.

The Olympus BX51WI has been around long enough that refurbished frames, optical components, and accessories can provide a practical alternative to purchasing all-new microscope hardware.

At Munday Scientific, we frequently work with customers who already have part of their electrophysiology setup.

Maybe they have the microscope but need a different stage.

Maybe they have the objectives but need a compatible condenser.

Or perhaps they're putting together a new research laboratory and need the microscope portion of the rig without purchasing every accessory at once.

Our inventory of Olympus components allows us to help customers explore different configurations based on their research requirements and budget.

Start with the Microscope Frame

A good BX51WI frame is the foundation of the system.

If you're building from scratch, selecting the correct frame and focusing mechanism is one of the first steps.

Choose the Right Stage

Electrophysiology often requires a stable specimen platform with enough room for micromanipulators and other equipment.

Depending on the application, a fixed stage or specialized bridge stage may be appropriate.

Select Your Objectives

Water-dipping objectives are often among the most important and expensive components.

Choosing the right magnification, numerical aperture, and working distance can make a major difference in the system's usefulness.

Add the Appropriate Condenser and Imaging Components

Depending on the experiment, you may need transmitted-light observation, oblique illumination, infrared DIC, or fluorescence.

These techniques require different optical components.

For example, a complete DIC configuration requires compatible prisms and polarization optics. Simply installing a DIC-capable condenser does not automatically make the microscope a complete DIC system.

Add a Camera

Many electrophysiology applications benefit from a camera that allows the researcher to view the specimen and recording pipette on a monitor.

For infrared imaging, the camera must be appropriately sensitive to the wavelengths used.

Integrate the Recording Equipment

A complete patch-clamp rig also requires components beyond the microscope, such as micromanipulators, an amplifier, digitizer, pipette holder, vibration isolation, and often a Faraday cage.

The microscope is one major part of the overall electrophysiology workstation.

By separating the microscope components from the rest of the recording equipment, laboratories can often make more informed purchasing decisions.

Can You Use Refurbished Microscope Parts for Electrophysiology?

Absolutely, provided the parts are compatible, properly inspected, and suitable for the intended application.

One of the benefits of working with a company that specializes in microscope service and refurbishment is having access to equipment that may otherwise be difficult to locate.

We regularly handle Olympus microscope frames, observation heads, condensers, stages, objectives, illumination components, and accessories.

Some parts may no longer be readily available through conventional new-equipment channels.

A refurbished component can be an excellent option when it provides the correct optical and mechanical performance.

However, it's important to remember that electrophysiology systems can be sensitive to mechanical vibration, electrical interference, and alignment problems.

A component should be evaluated for the intended application rather than selected on price alone.

What About IR-DIC Microscopy?

Infrared differential interference contrast, commonly called IR-DIC, is frequently used in electrophysiology laboratories.

It helps researchers visualize structures in relatively thick or low-contrast biological specimens, including certain brain-slice preparations.

IR-DIC can be especially valuable when identifying cells and positioning patch pipettes.

The Olympus BX51WI supports specialized configurations for infrared observation and DIC imaging.

A complete IR-DIC setup generally requires compatible objectives, condenser optics, DIC prisms, polarizer and analyzer components, an appropriate infrared light source, and a suitable camera.

Not every BX51WI microscope includes all of these parts.

That's one reason we encourage customers to discuss their intended imaging method before ordering.

We can help identify which microscope components are present and which additional parts may be required.

What If You Already Have an Olympus BX51WI?

You may not need an entirely different microscope.

Depending on your existing configuration, it may be possible to upgrade or replace specific components.

Common requests include:

• Water-dipping objectives

• Observation heads

• Camera adapters

• Microscope cameras

• Condensers and condenser components

• DIC prisms and related optics

• Stages and stage accessories

• Nosepieces

• Illumination components

• Replacement mechanical parts

We can also help researchers who have purchased incomplete microscopes through surplus sales, auctions, or other secondary markets.

Sometimes a microscope is missing only a few important components.

Other times, the cost of completing a particular configuration may make a different refurbished system the better choice.

Either way, we're happy to help you evaluate your options.

How Much Does an Electrophysiology Microscope Cost?

The cost can vary significantly depending on what is included.

A basic BX51WI microscope frame with a head and stage is very different from a complete imaging configuration with premium water-dipping objectives, IR-DIC optics, fluorescence, and a camera.

A full electrophysiology workstation with micromanipulators and recording electronics represents an even larger investment.

That's why we encourage researchers to start by identifying what they already own and what they actually need.

You may be able to reuse certain components, purchase refurbished microscope hardware, or build the system in stages.

Our goal is to help customers put together a functional, compatible microscope configuration without paying for unnecessary equipment.

Why Work with Munday Scientific?

At Munday Scientific and Microscope Marketplace, microscopes are our specialty.

We work with research laboratories, universities, medical facilities, and scientific institutions across the country.

Our team has extensive experience with Olympus microscope systems, including older platforms that remain valuable in modern research laboratories.

We understand how difficult it can be to locate a specific microscope component, especially when you're trying to match an existing system.

Rather than simply selling a microscope, we want to help you find the right configuration for your application.

Whether you need a complete Olympus BX51WI, a replacement condenser, a water-dipping objective, or a handful of parts to finish your existing rig, we'd love to help.

Frequently Asked Questions

Is the Olympus BX51WI good for patch-clamp electrophysiology?

Yes. The Olympus BX51WI is a well-established upright microscope platform designed for applications including electrophysiology and water-immersion microscopy. The appropriate optical, stage, and recording components must be selected for the experiment.

What is the difference between an Olympus BX51 and BX51WI?

The BX51WI is a specialized configuration designed for water-immersion and electrophysiology applications, with mechanical and optical features intended to provide specimen access and support compatible research accessories. A standard BX51 should not be assumed to offer the same configuration.

Can I use a 40X water-dipping objective for patch-clamp recording?

Yes, suitable 40X water-dipping objectives are commonly used in electrophysiology. Working distance, numerical aperture, optical compatibility, and chamber access should be checked.

Does an Olympus BX51WI come with IR-DIC?

Not necessarily. IR-DIC requires additional compatible components, and microscope configurations vary.

Can I build a patch-clamp microscope using refurbished parts?

Yes. Compatible, properly serviced refurbished components can be a cost-effective way to build or upgrade a microscope. The completed system should be evaluated for optical alignment, stability, and suitability for the intended application.

Does Munday Scientific sell individual BX51WI parts?

Yes. We stock and source a variety of Olympus microscope components and can help customers identify compatible parts for their existing systems.

Can Munday Scientific help me build a custom electrophysiology microscope?

Absolutely. Tell us what microscope components you already have, what imaging techniques you need, and what you're trying to accomplish. We can help identify suitable options for your budget.

Looking to Build an Olympus BX51WI Patch-Clamp Rig?

Whether you're setting up a new neuroscience laboratory, replacing an aging microscope, or upgrading an existing electrophysiology workstation, we'd love to help.

We have a large inventory of Olympus microscope components and experience putting together customized systems.

Don't assume you have to buy everything brand new.
