Olympus BX43 vs. BX46: What’s the Difference?

At Munday Scientific and Microscope Marketplace, one of the most common questions we hear is:

“What’s the difference between the Olympus BX43 and BX46?”

Both models are excellent clinical microscopes used in hospitals, pathology labs, and research facilities. They share many of the same features, but the biggest differences come down to stage ergonomics and condenser design.

Olympus BX43: Versatile and Application-Friendly

The Olympus BX43 is one of the most versatile clinical microscopes available, with flexibility that goes beyond routine use.

• Condenser Options: The BX43 has a removable condenser, which makes it compatible with a wide range of options depending on your application.

  • U-SC3 flip-out condenser for lower-power objectives (like 1.25x or 2x).

  • Abbe condenser for standard brightfield.

  • Universal DIC condenser for advanced differential interference contrast.

  • U-PCD phase condenser for phase contrast applications.

• Stage: Standard height, built for comfortable everyday use.

• Coding: Works with coded nosepieces that allow the Light Intensity Management (LIM) system to automatically adjust illumination when objectives are changed.

• Heads: Compatible with all Olympus BX series heads, including tilting, trinocular, telescoping, and fixed.

• Accessories: Easily accommodates beam splitters (U-TRU or U-TRUS), right- or left-handed stages, and fixed stages.

• Polarizers/Analyzers: Fully compatible with Olympus polarizer and analyzer sets for polarized light applications.

• Lighting: Equipped with LED illumination for long-lasting, stable lighting.

• Fluorescence Capability: One big advantage of the BX43 is that you can add fluorescence—a feature not available on the BX46. This makes it more versatile for labs that need both clinical and research flexibility.

In short: The BX43 shines as a flexible, multi-application microscope. It’s not only clinical-ready but can also be adapted for teaching, research, and specialty imaging. Plus, its serviceability makes it a favorite among labs that value long-term reliability.

👉 Shop Olympus BX43 microscopes here

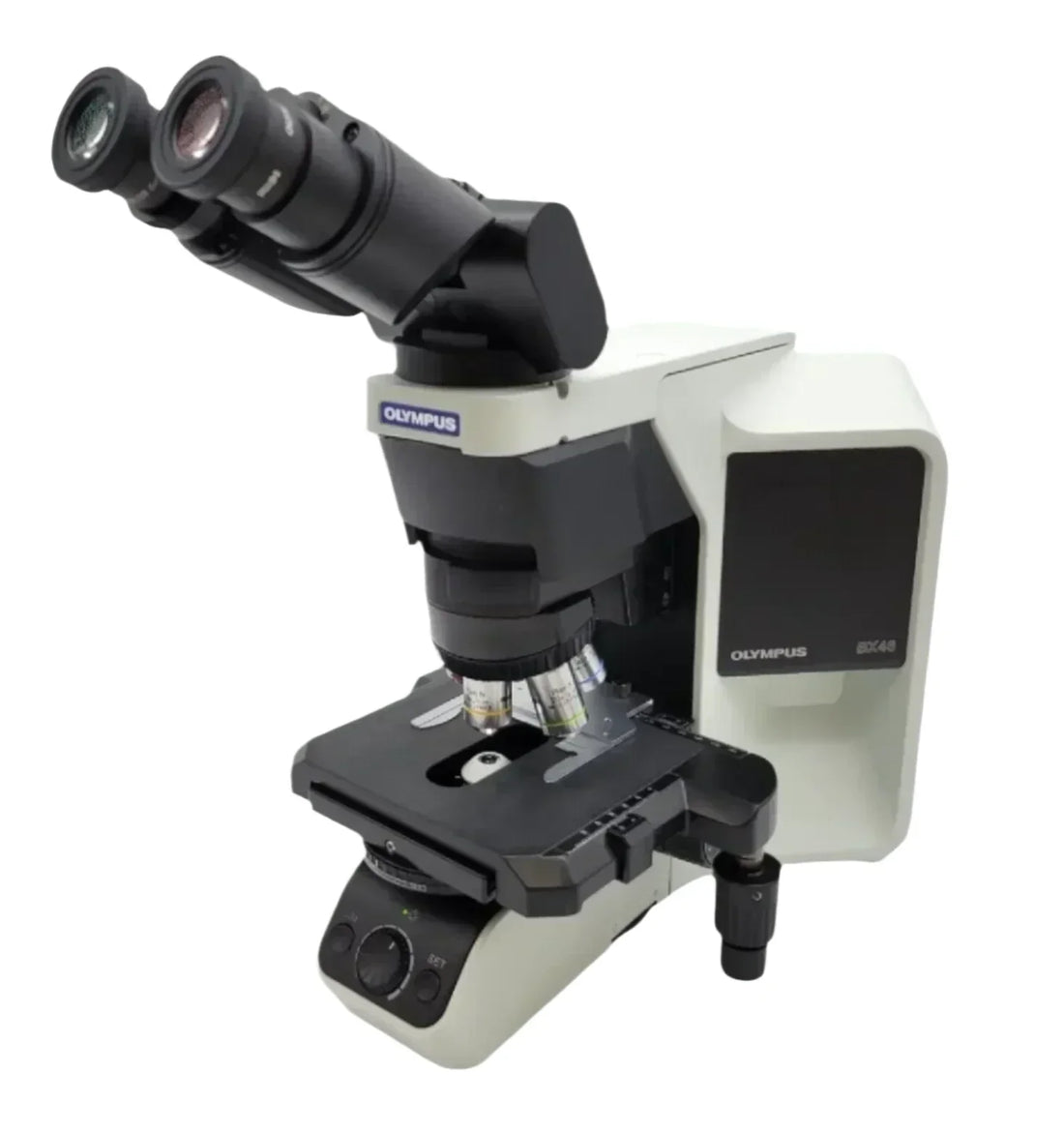

Olympus BX46: Ergonomic and Workflow-Focused

The Olympus BX46 takes the core strengths of the BX43 and adds features designed specifically for clinical efficiency and ergonomics.

• Stage: The stage sits lower than the BX43, reducing hand and arm strain during long hours of use—ideal for pathologists or users who spend their day at the scope.

• Condenser: Includes a built-in flip-out condenser, perfect for quickly moving between high- and low-power objectives without swapping condensers.

• Coding: Like the BX43, supports coded nosepieces and the LIM system for automatic light adjustment.

• Heads & Accessories: Supports the same interchangeable heads, stages, polarizers, analyzers, and accessories as the BX43.

• Lighting: Comes standard with LED illumination for bright, consistent performance.

In short: The BX46 is designed for comfort and efficiency, particularly for high-volume clinical users. The lower stage and built-in condenser make it the go-to choice for pathologists who prioritize ergonomics.

👉 Shop Olympus BX46 microscopes here

BX43 vs. BX46: Which Should You Choose?

Both are excellent clinical microscopes with overlapping strengths. Here’s how to decide:

• Choose the BX43 if you want maximum versatility for different applications (brightfield, DIC, phase contrast, polarized light, etc.), plus easier serviceability.

• Choose the BX46 if you’re a high-volume clinical pathologist who values ergonomics and speed over swapping components.

Either way, you’ll get a top-tier Olympus system built for reliability and precision.

✅ Still unsure which is the best fit for your lab? Contact Munday Scientific and Microscope Marketplace—our team can help guide you to the right choice.
