At Microscope Marketplace and Munday Scientific, we work hands-on with Olympus BX-series microscopes every day. Two models we’re frequently asked to compare are the Olympus BX40 and the Olympus BX41. They are closely related, highly modular, and both excellent laboratory microscopes.

The most common question we hear isn’t “Which one is good?”—because they both are—but rather:

“What actually changed between the BX40 and BX41?”

The short answer: not much—but the updates that were made on the BX41 are meaningful.

Shared Platform and Compatibility

Before discussing differences, it’s important to understand just how similar these two microscopes truly are.

The Olympus BX40 and BX41 share the same core platform, including:

• Objectives

• Stages

• Condensers

• Binocular and trinocular heads

• Illumination components

• Most internal mechanical parts

From both a user and service standpoint, this is a major advantage. These microscopes are extremely modular, making them easy to configure, upgrade, and maintain. Many parts are fully interchangeable between the two models, which is one reason the BX series has remained so popular in clinical, research, and teaching environments.

If you are moving from a BX40 to a BX41, you are not learning a new microscope—you are simply stepping into a refined version of the same system.

Key Differences Between the BX40 and BX41

Frame Design and Ergonomics

One of the first differences you’ll notice is the overall body design.

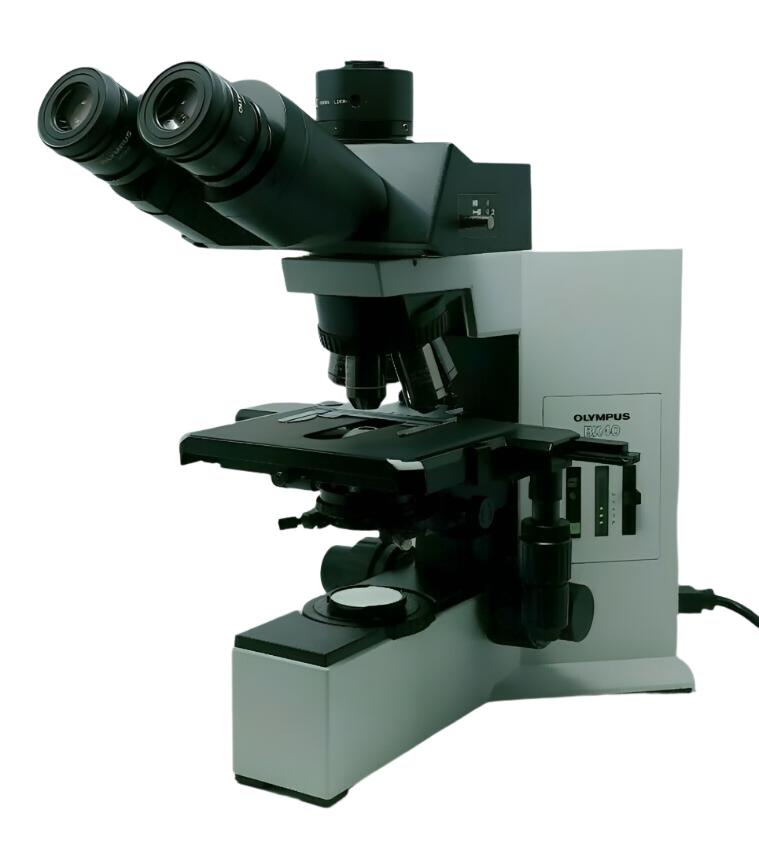

• BX40: More square and boxy, typical of earlier Olympus designs

• BX41: Rounded, sleeker, and more modern in appearance

While this change does not affect optical performance, many users prefer the BX41’s improved ergonomics and cleaner bench presence.

Light Intensity Control

Another noticeable update is how illumination is controlled.

• BX40: Slide-style light intensity control

• BX41: Rotary rheostat (potentiometer) positioned toward the rear of the microscope

The rotary control provides smoother, more precise light adjustment and tends to be more durable over time. From a service perspective, we consistently see fewer electrical and illumination-related issues with the BX41 compared to the BX40.

Nosepiece Design

The nosepiece configuration also changed between the two models.

• BX40: Fixed nosepiece unless an optional accessory is installed

• BX41: Removable and interchangeable nosepiece included as standard

This makes objective changes, reconfiguration, and service work easier on the BX41—especially in labs that frequently adjust their microscope setup.

Illumination System

Both microscopes share the same illumination specifications:

• 6-volt / 30-watt halogen light source

On paper, the illumination systems are identical. In real-world use, however, the BX41’s electronics have proven to be more robust and reliable over time, particularly in high-use laboratory environments.

Real-World Performance

From an optical performance standpoint, there is no dramatic difference between the BX40 and BX41 when configured with the same components.

Both microscopes perform exceptionally well in applications such as:

• Pathology

• Histology

• Research laboratories

• Teaching and training environments

The differences are less about optics and more about refinement, ergonomics, and long-term durability.

Which One Do We Prefer?

We genuinely like both microscopes and continue to refurbish, sell, and support BX40 and BX41 systems regularly.

That said, if we had to choose, the BX41 slightly edges out the BX40 due to:

• More durable electronics

• Improved light control ergonomics

• Standard removable nosepiece

• Updated and more modern frame design

It’s not a dramatic leap forward—but it is a thoughtful evolution of an already excellent microscope.

Final Thoughts

If you already own a BX40, there is no urgent reason to replace it—it remains a reliable and capable microscope. If you’re purchasing refurbished today and have the option, the BX41 is typically our recommended choice, especially for long-term use.

As always, the most important factor isn’t just the model number, but how the microscope is configured and refurbished. That’s where experience and attention to detail truly matter.

If you have questions about configurations, upgrades, or current availability, feel free to reach out to us at MicroscopeMarketplace.com or Munday Scientific.
