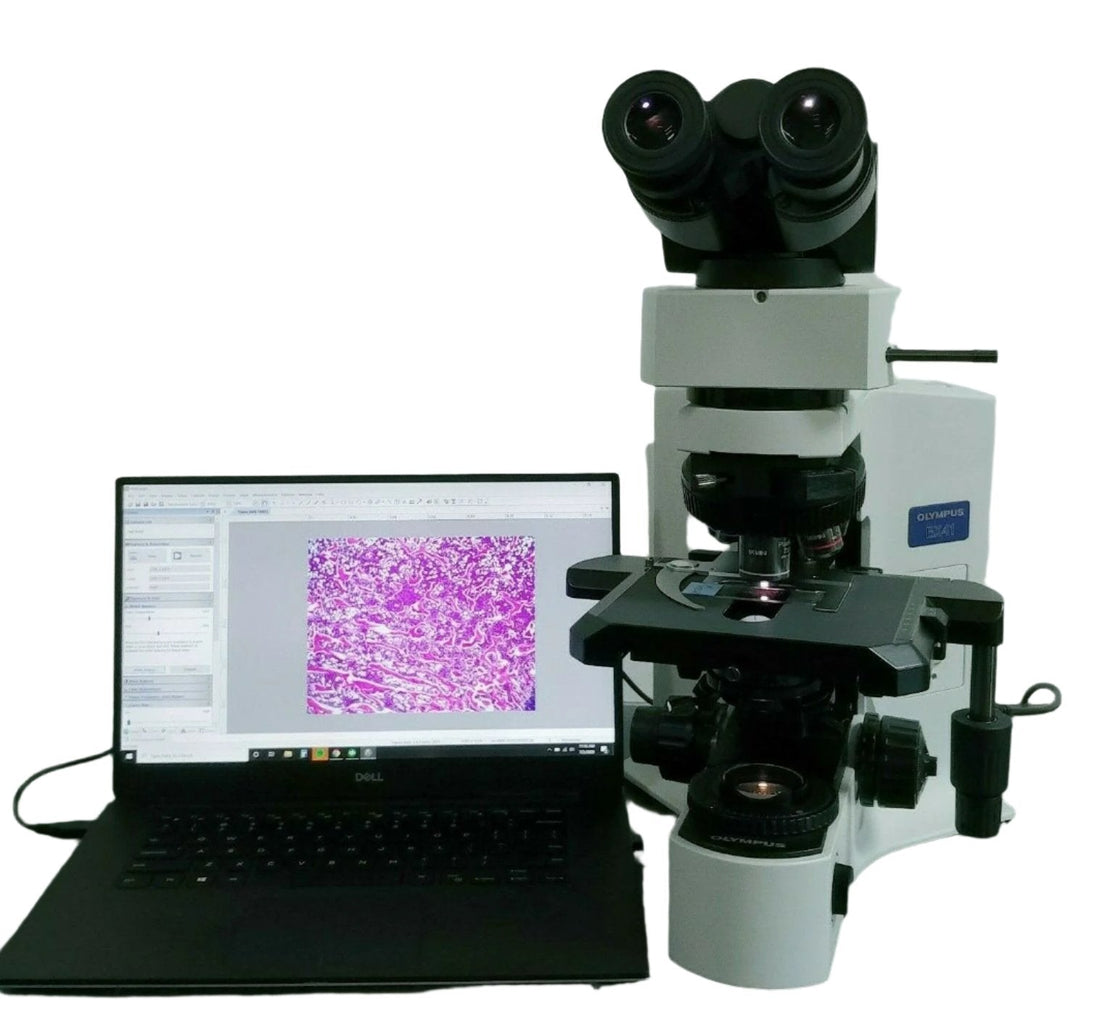

Olympus BX41 vs. BX45: Which Microscope Is Best for Mohs Surgeons and Pathologists?
By Munday Scientific & Microscope Marketplace

When it comes to choosing the right microscope for your Mohs lab or pathology suite, the Olympus BX series continues to set the gold standard. Two models that are especially popular among dermatopathologists and Mohs surgeons are the Olympus BX41 and Olympus BX45. Both are incredibly robust, precise, and versatile — but they’re not identical.

At Munday Scientific and Microscope Marketplace, we’ve rebuilt, configured, and serviced hundreds of these microscopes for labs across the country. Here’s an in-depth look at what makes each one great — and which might be the best fit for your workflow.

🔬 Shared Strengths: A Proven Olympus Design

Before diving into the differences, it’s worth noting that the BX41 and BX45 share a lot in common.

Both models use the same high-quality Olympus components, including:

• Viewing heads (tilting, tilting-telescoping, or fixed)

• Objectives (Plan, Plan Apo, and Plan Fluorite options)

• Eyepieces and stages

• Illumination system (6V 30W halogen, upgradeable to LED)

They’re both super modular, meaning they can be customized for your specific needs — from frozen section work in Mohs surgery to more advanced research or teaching configurations. Adding a camera is simple, whether you’re using a trinocular head or a phototube adapter.

⚖️ The Main Difference: Ergonomics and Versatility

The Olympus BX45 was designed with ergonomics in mind. It features a slightly lower stage and a built-in condenser, which some users find more comfortable for long sessions at the bench.

However, most pathologists and Mohs surgeons prefer to work with the stage locked in place while pushing the slide manually — which minimizes the ergonomic benefit of the BX45’s lower stage.

The BX41, by contrast, has a removable condenser, which offers much greater flexibility. You can easily swap condensers for phase contrast, DIC, or brightfield applications. The condenser design also makes it easier to clean, service, and maintain — a big advantage for long-term use.

🧰 Ease of Service and Upgrades

From a technician’s perspective, the BX41 is easier to work on and upgrade. The removable condenser and more accessible frame design mean parts are simple to replace or modify.

The BX45, while excellent, is a bit more involved when it comes to deeper modifications. For example:

• The nosepiece on the BX45 (typically a 5-place) can be swapped for a 6- or 7-place version, but it requires additional internal parts and labor.

• On the BX41, that same upgrade is quick and straightforward.

If you ever plan to add fluorescence, the BX41 is the clear choice — the BX45’s integrated condenser doesn’t allow for fluorescence attachments.

💡 Optics and Illumination

Both microscopes come standard with a 6V, 30W halogen light source. You’ll want to use a blue or didymium filter to balance out the yellow hue from the halogen bulb and achieve that crisp, white illumination pathologists prefer.

Many labs are now upgrading these systems to LED illumination, which provides cooler light, consistent color temperature, and longer bulb life — an easy enhancement for either model.

👩🔬 Ideal Use in Mohs and Pathology Labs

For Mohs surgeons and dermatopathologists, both the BX41 and BX45 deliver outstanding image quality, smooth mechanical control, and dependable performance.

• The BX41 is our flagship model for these applications — versatile, easy to configure, and simple to maintain.

• The BX45 offers a slightly lower profile and integrated condenser for users who prefer that ergonomic feel.

You can equip either model with a tilting head, tilting-telescoping head, or fixed head, depending on your ergonomic and visual preference. Adding a camera port is straightforward on both systems, making image capture or telepathology seamless.

🧡 Our Recommendation

Both microscopes are excellent choices for Mohs and pathology, but if we had to pick one, we’d give the edge to the Olympus BX41 for its versatility, serviceability, and expandability.

It’s the model we’ve sold and rebuilt the most — and for good reason. Whether you’re running a busy Mohs lab or handling daily pathology slides, the BX41 offers the flexibility to adapt to your workflow now and in the future.

🔧 Rebuilt, Reliable, and Ready

At Munday Scientific and Microscope Marketplace, every BX41 and BX45 microscope we sell is fully rebuilt — complete teardown, new grease throughout, alignment, cleaning, and calibration — and backed by our warranty and ongoing support.

These scopes are robust, reliable, and built to last for decades. And if you ever need service or upgrades, there’s a network of experienced technicians across the U.S. who are familiar with these systems — including our own team.

🌟 Final Thoughts

Whether you choose the Olympus BX41 or BX45, you’re getting one of the most trusted, proven microscope platforms in the world. Both deliver the clarity, precision, and comfort you need for Mohs surgery and pathology work — it just comes down to how much flexibility you want in your setup.

If you’re considering upgrading or adding a new scope to your lab, reach out to the team at Munday Scientific or Microscope Marketplace. We’ll help you choose the right configuration and make sure it’s tuned perfectly for your workflow.

📞 Contact us today to learn more about our Olympus BX41 and BX45 options — rebuilt, warrantied, and ready for your lab.
