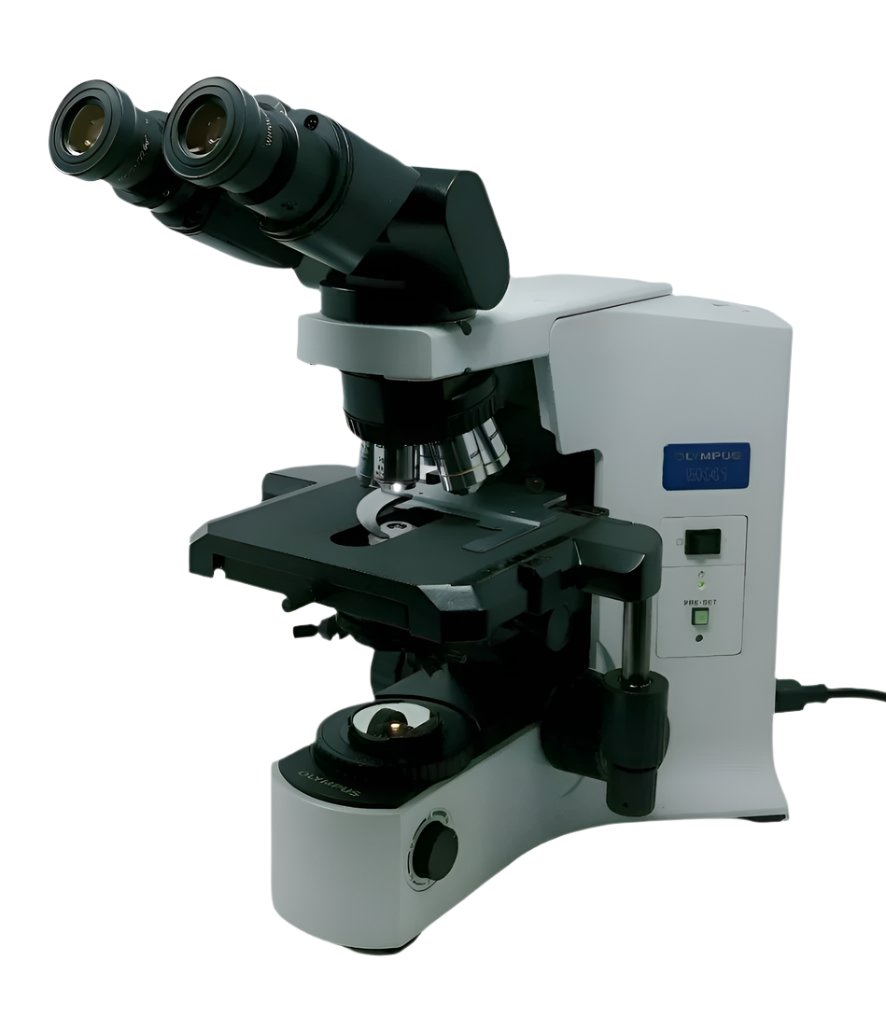

If you’ve noticed that your Olympus BX or CX microscope stage is drifting down or losing focus, you’re not alone. This is a common issue that many microscope users face. The good news is, you don’t have to send your microscope out for expensive repairs! With a few simple adjustments, you can fix the issue and get your microscope back to working like new.
In this blog post, we’ll guide you through how to adjust the tension on your Olympus BX or CX microscope to prevent stage drift and maintain focus. It’s a quick and easy fix that can make a world of difference in your microscopy work.
Why Is Your Microscope Drifting?
Stage drift can be incredibly frustrating, especially when it causes you to lose focus during your observations. The most common reason for stage drift or focus loss is incorrect tension on the focus mechanism. If the tension is too loose, the stage may fall or drift out of place. Luckily, adjusting the tension is a straightforward process.
Where to Find the Tension Adjustment on Your Olympus BX or CX Microscope
Before you can fix the drift, you need to locate the tension adjustment knob on your microscope. Here’s how:
-
Locate the Tension Adjustment Knob: On your Olympus BX or CX microscope, the tension control is usually located on the right side of the microscope’s body. On most compound microscopes, the tension adjustment knob (sometimes called the “tension control”) is located on the inner ring of the coarse focus mechanism, near the body of the microscope.
-
Determine Your Desired Tension: Before making any adjustments, think about how you want the microscope to feel. If you prefer a smooth, light touch for focusing, you’ll want to loosen the tension slightly. If you need a firmer, more controlled feel, tightening the tension will provide that.
How to Adjust the Tension:
Now that you’ve located the tension adjustment knob, follow these steps to adjust the tension:
-
Increase Tension (for Stage Drift): If your microscope stage is drifting down, you’ll need to tighten the tension. To do this, turn the tension adjustment knob clockwise. This will make it harder to move the stage, preventing it from falling during use.
-
Decrease Tension (for Stiff Movement): On the other hand, if the stage is too stiff or difficult to move, you’ll want to loosen the tension. To do this, turn the tension adjustment knob counterclockwise to make it easier to move the stage.
Test Your Adjustment:
Once you’ve made the necessary adjustment, it’s time to test the focus knobs. Turn them to see if the tension feels more comfortable. You may need to make small adjustments to get the resistance just right. Remember, you want the stage to stay in place without being too stiff to move.
Final Thoughts:
Adjusting the stage tension on your Olympus BX or CX microscope is a simple yet effective way to fix stage drift and keep your microscope in top working condition. By following the steps outlined in this blog post, you can regain control over your microscope’s focus and prevent frustrating issues with drift.
If you’re still experiencing problems with your microscope or if you need additional help, don’t worry! We offer a mail-in service through Microscope Marketplace and Munday Scientific to assist you with any issues. Feel free to reach out to us for help.
For a step-by-step visual guide, check out our video here.
If you have any further questions or need assistance, don’t hesitate to contact us at info@mundaymicroscope.com.
We’re here to help you get the most out of your Olympus microscope, so you can focus on what matters most – your research!
