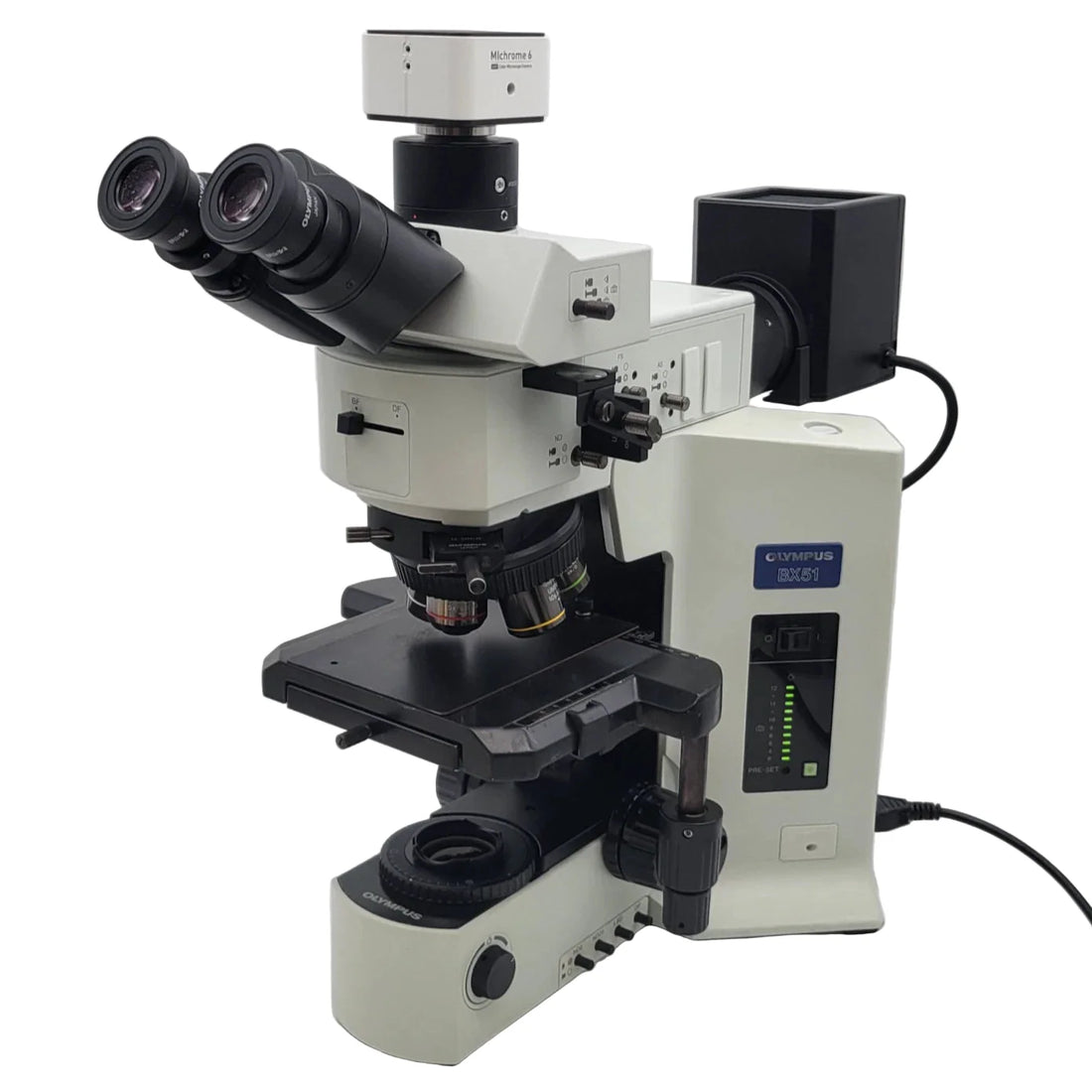

At Munday Scientific & Microscope Marketplace, we get excited when a microscope delivers versatility, clarity, and precision — and that’s exactly what the Olympus BX51 reflected-light microscope brings to the table. Designed for demanding industrial and materials science applications — from silicon wafer inspection to metallurgical analysis — the BX51 is a workhorse for anyone who needs high-quality reflected-light imaging.
Before we walk through how to achieve the best contrast modes in the BX51 (and reference our step-by-step YouTube tutorial), let’s briefly cover the essentials.
🔍 What Is the Olympus BX51 Used For?
The BX51 is a reflected or epi-illumination microscope, meaning light is directed down onto the sample and reflected back up into the optics. This is ideal for inspecting:
-
Metal surfaces
-
Silicon wafers and microelectronics
-
Coatings and thin films
-
Scratches, pits, grain boundaries, and surface features
Unlike transmitted-light microscopes (which require thin, light-passing samples), the BX51’s epi-illumination lets you image opaque objects without sectioning or special preparation.
Check out our companion walkthrough video on YouTube for a practical demonstration of setting up and optimizing contrast:
Olympus BX51 Metallurgical DIC, Brightfield & Darkfield – How to Get the Best Image
https://youtu.be/OfeHqkwepLA
Bright Field — The Starting Point for Surface Imaging
Bright field is the most straightforward mode: the sample is illuminated uniformly, and contrast arises from differences in reflectivity.
How it Works
-
White light illuminates the surface.
-
Areas that reflect more light appear brighter; rougher or recessed areas appear darker.
-
No special prisms or polarizers are required in the optical path.
On the BX51, simply ensure your polarizers, analyzers, and DIC optics are out of the light path to maximize direct reflection and bright field contrast.
This mode is excellent for routine inspections where basic topography or surface defects need to be documented.
🌑 Dark Field — High Contrast Without Staining
Dark field creates dramatic contrast by excluding the direct reflected beam from your view. Only light scattered from surface features reaches your eye or camera.
Key Features
-
The background appears dark.
-
Fine surface details — scratches, particles, edges — light up.
-
Contrast is generated not by brightness differences, but by light scattered into the objective.
How to Engage It on the BX51
To achieve dark field:
-
Move the polarizer/analyzer and DIC elements out of the field of view.
-
Insert the dark field stop/condenser element in the reflected light path.
-
Adjust illumination until only the high-angle scatter enters the objective.
This technique is especially handy when subtle surface anomalies on silicon wafers or metals are not easily discernible by bright field alone.
Reflected-Light DIC — Nomarski Contrast for Surface Relief
Differential Interference Contrast (DIC) adds another layer of insight by turning phase differences on the sample surface into visible intensity variations.
Why DIC Matters
-
DIC enhances subtle topographic differences (like micro-steps or thin film variation).
-
It gives a pseudo-three-dimensional look that’s invaluable in wafer inspection and metallurgical analysis.
The Optical Essentials
To achieve DIC, you must properly use polarizers and analyzers:
-
Polarizer — placed before the sample to linearly polarize incoming light.
-
Analyzer — crossed relative to the polarizer after the sample.
This crossed configuration is critical — it ensures that only light whose polarization has been modified by phase differences contributes to image contrast.
Setting Up DIC on the BX51
-
Slide in the polarizer into the light path.
-
Insert the DIC prism (usually a Nomarski prism) near the condenser.
-
Cross the analyzer — this is essential.
-
Adjust light intensity and focusing.
If either the polarizer or analyzer is not in place, the contrast will be weak or nonexistent. Removing these elements (and the DIC prism) returns you to bright field or dark field modes as needed.
🎥 Quick Tip from Our YouTube Walkthrough
In our video, we walk through how to achieve each mode hands-on — from toggling optical components to watching the contrast transform live on screen. It’s a great visual companion to this write-up and perfect for those of you setting up a BX51 for the first time.
📽 https://youtu.be/OfeHqkwepLA
🛠️ Final Thoughts
Whether you’re analyzing silicon wafers, inspecting metallurgical specimens, or just exploring surface features, understanding how to harness bright field, dark field, and DIC contrast on the Olympus BX51 opens up a world of detail that might otherwise go unnoticed.
If you have questions on configuring your system, want help sourcing parts, or are considering a refurbished BX51 for your lab, reach out — we’re here to help.
— The team at Munday Scientific & Microscope Marketplace
