When it comes to metallurgical microscopy, one of the biggest advantages you can have is flexibility. Different materials, surfaces, defects, and applications often require different illumination techniques to get the information you need.

That is one of the reasons we really like the Nikon LV150.

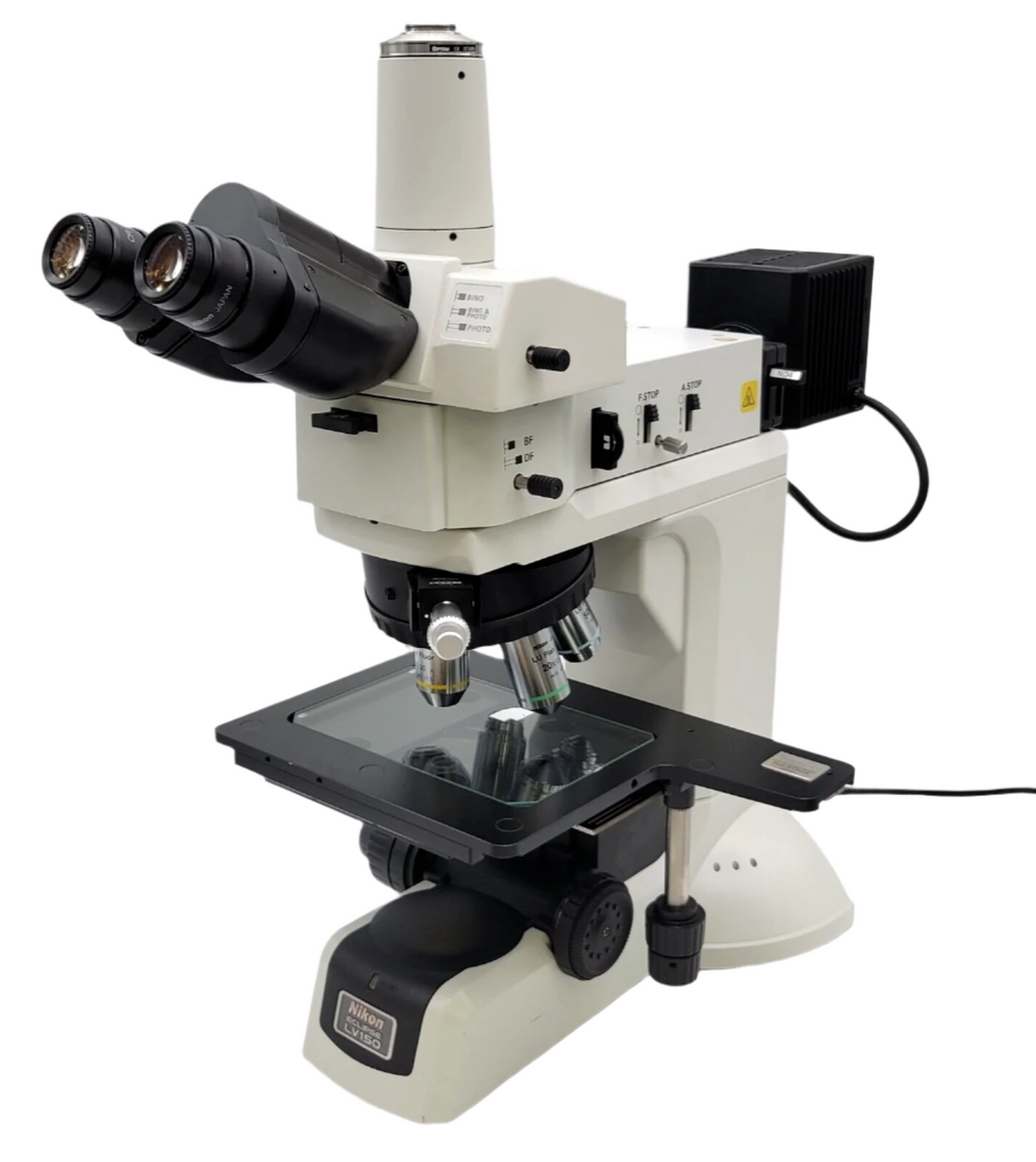

The Nikon Eclipse LV150 is a high-quality industrial and metallurgical microscope designed primarily for reflected-light microscopy. It can be configured for several observation methods, including brightfield, darkfield, simple polarization, and reflected-light DIC. Nikon's LV series was specifically designed to accommodate a wide variety of industrial observation techniques.

At Munday Scientific and Microscope Marketplace, we work with a lot of different microscope platforms, and the LV150 continues to be a great option for customers performing materials inspection, metallurgy, manufacturing quality control, failure analysis, electronics inspection, and other industrial applications.

One Microscope, Lots of Configurations

One of the first things to understand about the Nikon LV150 is that not every LV150 is configured the same way.

You may find a basic reflected brightfield system or a much more advanced configuration equipped for brightfield, darkfield, reflected-light DIC, polarization, a trinocular head, and a digital camera.

The illuminator, nosepiece, objectives, DIC components, stage, camera port, and other accessories all matter.

This is especially important when purchasing a used or refurbished LV150. Two microscopes that look almost identical in a photograph can have very different capabilities depending on how they are equipped.

That flexibility is also one of the LV150's biggest strengths. You can configure the microscope around the application rather than purchasing features you don't need.

Reflected-Light Brightfield

Brightfield is one of the fundamental observation methods for metallurgical microscopy.

Unlike a traditional biological microscope where light passes through a thin specimen from underneath, a metallurgical microscope typically examines opaque samples. Light is directed down through the objective onto the specimen, and the reflected light returns through the optical system to create the image.

This makes reflected-light brightfield useful for viewing polished metals, alloys, coatings, electronic components, machined parts, ceramics, and many other opaque samples.

Brightfield can provide an excellent overall view of a prepared surface and is often the starting point for routine inspection.

Nikon designed the LV series with anti-flare considerations in its objective and illumination systems to produce bright, high-contrast images.

Reflected-Light Darkfield

Darkfield is where a well-equipped LV150 becomes even more versatile.

Instead of producing the more evenly illuminated image associated with brightfield, darkfield uses angled illumination so that certain surface features scatter light back into the objective.

The result can make scratches, edges, pits, particles, inclusions, surface defects, and small height differences stand out dramatically against a darker background.

For quality control and failure analysis, this can be extremely valuable.

A feature that is difficult to recognize in brightfield may become immediately obvious when you switch to darkfield.

Nikon specifically designed the LV series darkfield illumination system for high-sensitivity detection of defects and differences in sample height.

It is important to remember that darkfield requires the proper microscope configuration and compatible objectives. Simply having an LV150 stand does not automatically mean the microscope is equipped for darkfield.

Reflected-Light DIC

One of our favorite configurations on the Nikon LV150 is reflected-light DIC, or Differential Interference Contrast.

DIC is a powerful contrast technique for examining subtle surface variations that can be difficult to appreciate with standard brightfield illumination.

Instead of simply making the image brighter or darker, DIC can produce a relief-like appearance that helps reveal extremely small changes in surface structure and height.

For materials science and industrial inspection, this can be particularly useful when examining things such as:

• Precision-machined surfaces
• Semiconductor components
• Microelectronics
• Coatings
• Polished metals
• Precision molds
• Small surface defects
• Fine structures
• Subtle differences in surface topography

Nikon offers standard- and high-contrast-type DIC sliders within the LV platform, with the system designed for applications including the observation of minute level differences in devices and precision molds.

Again, configuration matters. A Nikon LV150 needs the appropriate objectives, DIC components, polarizer/analyzer, and illumination setup to perform reflected-light DIC properly.

Nikon Optical Quality

A microscope is ultimately only as good as the image it produces.

The LV150 platform uses Nikon's CFI60 optical system and can be equipped with a variety of industrial objective options depending on the application. Nikon offered LV-series objectives covering different magnifications, numerical apertures, working distances, and observation methods.

This is another reason we like the LV150 as a refurbished microscope.

You're starting with a professional industrial microscope platform from one of the world's major microscope manufacturers. When the system is properly serviced, aligned, and configured with quality objectives, the image quality can be outstanding.

Add a Camera and Make It Even More Useful

Adding a digital microscope camera can take an LV150 from a visual inspection microscope to a much more useful documentation system.

A trinocular configuration allows a camera to be mounted to the microscope while still allowing the operator to use the eyepieces.

With the appropriate camera and software, users can capture images of what they are seeing for:

• Quality-control documentation
• Customer reports
• Failure analysis
• Before-and-after comparisons
• Training
• Research documentation
• Manufacturing records
• Sharing images with colleagues
• Measurements and analysis when supported by the camera and software

Nikon's current LV platform supports integration with its Digital Sight camera systems and NIS-Elements software for image capture, measurement, and analysis.

For many customers, adding a quality camera is one of the best upgrades you can make to a metallurgical microscope.

A Great Refurbished Microscope Option

The Nikon LV150 is also an excellent example of why buying a quality refurbished microscope can make sense.

A properly serviced LV150 can give a laboratory or manufacturing facility access to a professional industrial microscope platform without necessarily purchasing an entirely new system.

The key is knowing exactly what you're buying.

At Munday Scientific and Microscope Marketplace, we don't just want to sell you a microscope stand. We want to understand the application and make sure the microscope is configured appropriately for what you are trying to accomplish.

Do you need brightfield only?

Do you need brightfield and darkfield?

Do you need reflected-light DIC?

What magnifications do you need?

Do you need longer working distance?

Do you need a camera?

Do you need measurement capabilities?

Those questions matter when configuring an industrial microscope.

Watch Our Nikon LV150 Demonstration

We're including a video demonstration with this article so you can actually see the Nikon LV150 in action.

When it comes to metallurgical microscopy, one of the biggest advantages you can have is flexibility. Different materials, surfaces, defects, and applications often require different illumination techniques to get the information you need. That is one of the reasons we really like the Nikon LV150. The Nikon Eclipse LV150 is a high-quality industrial and metallurgical microscope designed primarily for reflected-light microscopy. It can be configured for several observation methods, including brightfield, darkfield, simple polarization, and reflected-light DIC. Nikon's LV series was specifically designed to accommodate a wide variety of industrial observation techniques. At Munday Scientific and Microscope Marketplace, we work with a lot of different microscope platforms, and the LV150 continues to be a great option for customers performing materials inspection, metallurgy, manufacturing quality control, failure analysis, electronics inspection, and other industrial applications. One Microscope, Lots of Configurations One of the first things to understand about the Nikon LV150 is that not every LV150 is configured the same way. You may find a basic reflected brightfield system or a much more advanced configuration equipped for brightfield, darkfield, reflected-light DIC, polarization, a trinocular head, and a digital camera. The illuminator, nosepiece, objectives, DIC components, stage, camera port, and other accessories all matter. This is especially important when purchasing a used or refurbished LV150. Two microscopes that look almost identical in a photograph can have very different capabilities depending on how they are equipped. That flexibility is also one of the LV150's biggest strengths. You can configure the microscope around the application rather than purchasing features you don't need. Reflected-Light Brightfield Brightfield is one of the fundamental observation methods for metallurgical microscopy. Unlike a traditional biological microscope where light passes through a thin specimen from underneath, a metallurgical microscope typically examines opaque samples. Light is directed down through the objective onto the specimen, and the reflected light returns through the optical system to create the image. This makes reflected-light brightfield useful for viewing polished metals, alloys, coatings, electronic components, machined parts, ceramics, and many other opaque samples. Brightfield can provide an excellent overall view of a prepared surface and is often the starting point for routine inspection. Nikon designed the LV series with anti-flare considerations in its objective and illumination systems to produce bright, high-contrast images. Reflected-Light Darkfield Darkfield is where a well-equipped LV150 becomes even more versatile. Instead of producing the more evenly illuminated image associated with brightfield, darkfield uses angled illumination so that certain surface features scatter light back into the objective. The result can make scratches, edges, pits, particles, inclusions, surface defects, and small height differences stand out dramatically against a darker background. For quality control and failure analysis, this can be extremely valuable. A feature that is difficult to recognize in brightfield may become immediately obvious when you switch to darkfield. Nikon specifically designed the LV series darkfield illumination system for high-sensitivity detection of defects and differences in sample height. It is important to remember that darkfield requires the proper microscope configuration and compatible objectives. Simply having an LV150 stand does not automatically mean the microscope is equipped for darkfield. Reflected-Light DIC One of our favorite configurations on the Nikon LV150 is reflected-light DIC, or Differential Interference Contrast. DIC is a powerful contrast technique for examining subtle surface variations that can be difficult to appreciate with standard brightfield illumination. Instead of simply making the image brighter or darker, DIC can produce a relief-like appearance that helps reveal extremely small changes in surface structure and height. For materials science and industrial inspection, this can be particularly useful when examining things such as: Precision-machined surfaces Semiconductor components Microelectronics Coatings Polished metals Precision molds Small surface defects Fine structures Subtle differences in surface topography Nikon offers standard- and high-contrast-type DIC sliders within the LV platform, with the system designed for applications including the observation of minute level differences in devices and precision molds. Again, configuration matters. A Nikon LV150 needs the appropriate objectives, DIC components, polarizer/analyzer, and illumination setup to perform reflected-light DIC properly. Nikon Optical Quality A microscope is ultimately only as good as the image it produces. The LV150 platform uses Nikon's CFI60 optical system and can be equipped with a variety of industrial objective options depending on the application. Nikon offered LV-series objectives covering different magnifications, numerical apertures, working distances, and observation methods. This is another reason we like the LV150 as a refurbished microscope. You're starting with a professional industrial microscope platform from one of the world's major microscope manufacturers. When the system is properly serviced, aligned, and configured with quality objectives, the image quality can be outstanding. Add a Camera and Make It Even More Useful Adding a digital microscope camera can take an LV150 from a visual inspection microscope to a much more useful documentation system. A trinocular configuration allows a camera to be mounted to the microscope while still allowing the operator to use the eyepieces. With the appropriate camera and software, users can capture images of what they are seeing for: Quality-control documentation Customer reports Failure analysis Before-and-after comparisons Training Research documentation Manufacturing records Sharing images with colleagues Measurements and analysis when supported by the camera and software Nikon's current LV platform supports integration with its Digital Sight camera systems and NIS-Elements software for image capture, measurement, and analysis. For many customers, adding a quality camera is one of the best upgrades you can make to a metallurgical microscope. A Great Refurbished Microscope Option The Nikon LV150 is also an excellent example of why buying a quality refurbished microscope can make sense. A properly serviced LV150 can give a laboratory or manufacturing facility access to a professional industrial microscope platform without necessarily purchasing an entirely new system. The key is knowing exactly what you're buying. At Munday Scientific and Microscope Marketplace, we don't just want to sell you a microscope stand. We want to understand the application and make sure the microscope is configured appropriately for what you are trying to accomplish. Do you need brightfield only? Do you need brightfield and darkfield? Do you need reflected-light DIC? What magnifications do you need? Do you need longer working distance? Do you need a camera? Do you need measurement capabilities? Those questions matter when configuring an industrial microscope. Watch Our Nikon LV150 Demonstration We're including a video demonstration with this article so you can actually see the Nikon LV150 in action. In the video, we go over the microscope, discuss its configuration and features, and show how the system operates. We also demonstrate some of the capabilities that make the LV150 such a versatile metallurgical microscope. For us, these videos are important because buying a microscope—especially a used or refurbished industrial microscope—can be confusing. We want customers to see the equipment, understand what the different components do, and have confidence in what they're purchasing. Is the Nikon LV150 Right for Your Application? If you're looking for a metallurgical or industrial microscope, the Nikon LV150 deserves serious consideration. Its biggest advantage is versatility. A properly configured system can give you reflected brightfield, darkfield, DIC, polarization, high-quality Nikon optics, and digital imaging capabilities all on one professional microscope platform. Nikon's documentation confirms the LV series supports this broad range of observation methods when equipped with the appropriate components. Whether you're inspecting metals, electronics, coatings, precision components, manufacturing defects, or other opaque materials, there are numerous ways to configure an LV150 around your application. At Munday Scientific and Microscope Marketplace, we can help you determine the configuration that makes sense for what you're actually trying to inspect. If you aren't sure whether you need brightfield, darkfield, DIC, or another observation method, give us a call. Tell us what you're looking at and what you're trying to accomplish, and we'll help point you in the right direction.

In the video, we go over the microscope, discuss its configuration and features, and show how the system operates. We also demonstrate some of the capabilities that make the LV150 such a versatile metallurgical microscope.

For us, these videos are important because buying a microscope—especially a used or refurbished industrial microscope—can be confusing.

We want customers to see the equipment, understand what the different components do, and have confidence in what they're purchasing.

Is the Nikon LV150 Right for Your Application?

If you're looking for a metallurgical or industrial microscope, the Nikon LV150 deserves serious consideration.

Its biggest advantage is versatility.

A properly configured system can give you reflected brightfield, darkfield, DIC, polarization, high-quality Nikon optics, and digital imaging capabilities all on one professional microscope platform. Nikon's documentation confirms the LV series supports this broad range of observation methods when equipped with the appropriate components.

Whether you're inspecting metals, electronics, coatings, precision components, manufacturing defects, or other opaque materials, there are numerous ways to configure an LV150 around your application.

At Munday Scientific and Microscope Marketplace, we can help you determine the configuration that makes sense for what you're actually trying to inspect.

If you aren't sure whether you need brightfield, darkfield, DIC, or another observation method, give us a call. Tell us what you're looking at and what you're trying to accomplish, and we'll help point you in the right direction.
