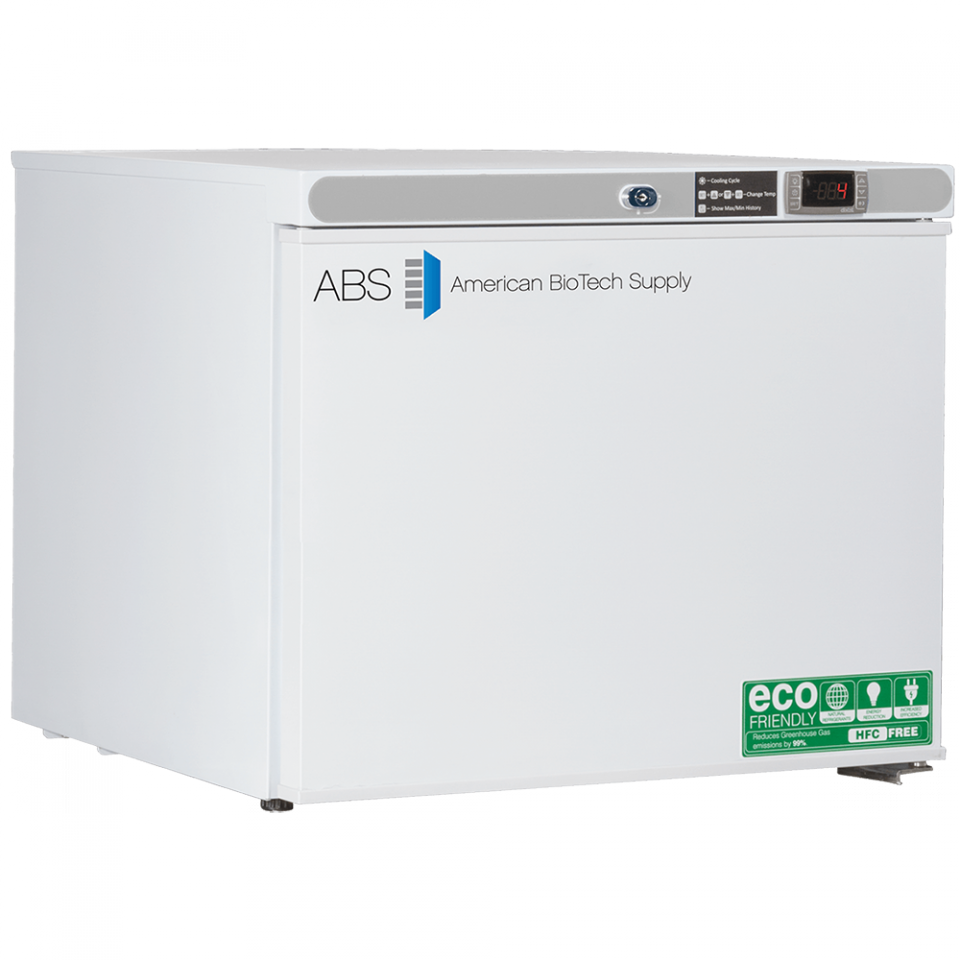

American BioTech Supply 1.3 Cu Ft Solid Door Premier Freezer Auto Defrost ABT-HC-UCFS-0120A

The Premier Freestanding Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms

DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer

The Freestanding models (“UCFS”) require 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.

Details:

• 2 ADJUSTABLE SHELVES WITH GUARD RAIL TO PREVENT PRODUCT FROM BEING PUSHED AGAINST BACK WALL
• BOTTOM FOOTED SHELF TO ALLOW AIR CIRCULATION
• KEYED DOOR LOCK
• MAGNETIC DOOR GASKET FOR POSITIVE SEAL
• LEVELING LEGS
• HFC-FREE REFRIGERANT (R600A), FOAM INSULATION AND PACKAGING
• TWO YEAR PARTS AND LABOR WARRANTY
• NOTE: THIS UNIT MUST HAVE 4” CLEARANCE ON SIDES AND BACK FOR ADEQUATE VENTILATION

Specifications:

• EXTERIOR DIMENSIONS:
  WIDTH: 23 ¾"
  DEPTH: 24”
  HEIGHT: 20 3/8"
• AUTO DEFROST
• 115V, 60 HZ, 1 AMP,1/8 HP
• ADA COMPLIANT
• UL/C-UL LISTED
• SHIPPING WEIGHT:  106 LBS.
• ENERGY STAR CERTIFIED

Temp Controller:

• MICROPROCESSOR TEMPERATURE CONTROLLER
• DIGITAL TEMPERATURE DISPLAY
• AUDIBLE AND VISUAL HIGH AND LOW TEMPERATURE ALARMS
• 2 PROBES; 1 IN AIR AND 1 IN SAMPLE BOTTLE
• REMOTE ALARM CONTACTS
• ADJUSTABLE OPERATING TEMPERATURE RANGE:  -15°C TO -25°C
• AUTO DEFROST CYCLE EVERY 6 HOURS:
  MAX AIR TEMP IN EMPTY FREEZER: 4.34°C
  MAX AIR TEMP IN LOADED FREEZER: -2.89°C
  MAX SAMPLE TEMP IN EMPTY FREEZER:  -4.76°C
  MAX SAMPLE TEMP IN LOADED FREEZER: -9.58°C
