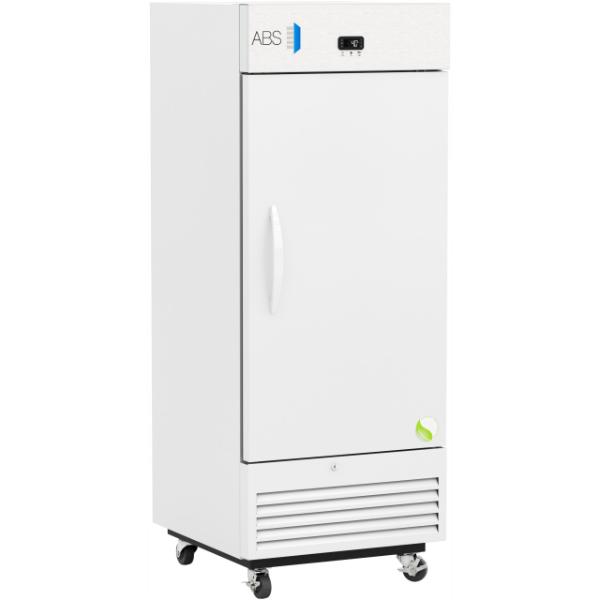

ABS 12 Cu. Ft. Standard Solid Door Laboratory Refrigerator ABT-VS-SLS-12

These laboratory refrigerators are designed for reliable and cost-effective cold storage. This model features ultra-low energy consumption and energy efficient natural refrigerants. Using microprocessor temperature technology, this unit delivers precise temperature monitoring and control. It offers essential security features, including a keyed door lock and temperature alarms, along with remote alarm contacts. Enjoy durable powder-coated steel construction, and adjustable inner shelving to optimize your workflow. All features are designed to heighten performance and efficiency in your lab.

Details

Storage capacity 12 Cu. Ft.
Door One (1) swing solid door, self-closing, right hinged, not reversible, magnetic door gasket
Shelves Three (3) adjustable shelves (adjustable in ½” increments)
Mounting and Installation Swivel casters – locking front casters
Interior lighting LED interior lights are safety shielded and switch controlled
External probe access Probe access port (3/4″) on rear wall
Insulation Cabinet is foamed-in-place with EPA compliant high density urethane foam
Exterior materials White powder coated steel
Access Control Keyed door lock; compatible with optional digital lock (including Pyxis, Omnicell, and AcuDose RX)
General warranty Two (2) year parts and labor warranty
Compressor warranty Five (5) year compressor warranty
Product Weight (lbs.) 187
Shipping Weight (lbs.) 227
 Exterior Width (in) 25″
 Exterior Depth (in) 29″
 Exterior Height (in) 66″
Rated Amperage 2
Power Plug/Power Cord NEMA 5-15 plug
Facility Electrical Requirement 110 – 120V AC, 15A breaker, NEMA 5-15 receptacle
Agency Listing and Certification ETL, C-ETL listed. Meets or exceeds Energy Star v2.0 for Laboratory. Refrigerators. Official listing pending – see energystar.gov

Refrigeration System

Compressor Hermetic
Refrigerant EPA SNAP compliant R600a Isobutane (Hydrocarbon natural refrigerant)
Condenser Tube and grid, high efficiency fan forced air
Evaporator Fin and tube, high efficiency fan forced air
Defrost Cycle Defrost

Temp Controller

Controller technology Microprocessor temperature controller, C°/F° switchable, resolution is 0.1° C/0.2° F
Max temp variation – cabinet air (°C): +/- 2.5° C
Energy consumption (KWh/day): <0.9 KWh/day Meets or exceeds Energy Star v2.0 for Laboratory Refrigerators.
Stability – simulator ballast (°C): +/- 0.5° C
Average heat rejection (BTU/h) < 250 BTU/h
Display Technology Digital Temperature Display
Noise pressure level (dBA) 40 dBA or less installed
Pull down time to nominal operating temp < 30 min (empty)
Adjustable Temperature Range 2° C to 15° C
External alarm connection Remote alarm contacts
Display Probe Product simulator bottle with glass bead media
Alarms Audible and visual high/low temperature alarms, remote alarm contacts
Disclaimers Refrigerator requires a minimum 2” of clearance at back and sides of the unit for proper ventilation
Performance Notes Max temperature variation based on an empty chamber at steady state using 15 bare (unweighted) thermocouple probes. Product loading, door openings, and ambient conditions will affect performance. Stability of simulator ballast based on bottle probe provided with the unit located center of empty chamber at steady state, no door openings
