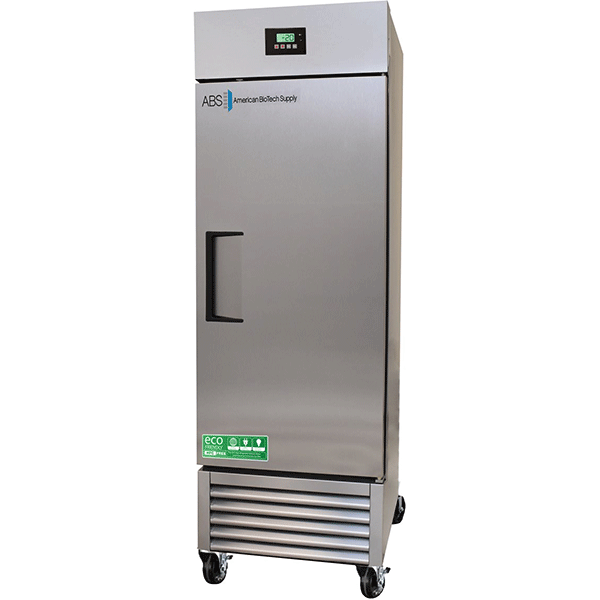

American BioTech Supply 23 Cu Ft Premier Stainless Steel Auto Defrost Laboratory Freezer ABT-AFPP-23
The Premier Stainless Steel Validation Freezers are performance qualified to help satisfy qualification and validation requirements. These units feature a microprocessor temperature controller and display which allows for precise temperature control, verification and recovery versus mechanical style thermostats. An interior fan driven, forced-draft air circulation system provides excellent temperature uniformity and recovery after door openings.
Auto defrost freezer models have programmed defrost cycles that will reach air temperatures of approximately 0 degrees C. In addition, we provide multi-point temperature mapping via the ABS NIST traceable data acquisition equipment assuring reproducible operation. if provided with a Requirements Document, ABS will make every effort to fulfill or exceed each condition.
The temperature display and alarm module offers an array of robust security features with a monitoring and alarm system that is 100% independent of a microprocessor temperature controller.
DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details:
- THREE SHELVES (ADJUSTABLE IN ½" INCREMENTS)
- KEYED DOOR LOCKS
- MAGNETIC DOOR GASKET FOR POSITIVE SEAL
- RECESSED DOOR HANDLE
- SWIVEL CASTERS (ADDS 5" TO HEIGHT; INCLUDED IN DIMENSIONS)
- INTERIOR LIGHT
- PROBE ACCESS PORT (3/8")
- 300 SERIES STAINLESS STEEL INTERIOR/EXTERIOR
- HIGH DENSITY URETHANE FOAM CABINET AND DOOR INSULATION
- HFC-FREE REFRIGERANT (R290), FOAM INSULATION AND PACKAGING
- TWO YEAR PARTS AND LABOR WARRANTY, PLUS AN ADDITIONAL THREE YEAR COMPRESSOR PARTS WARRANTY
Specifications:
- EXTERIOR DIMENSIONS:
WIDTH: 27”
DEPTH: 30 3/4“
HEIGHT: 83 1/4” WITH CASTERS, 78 1/4" WITHOUT CASTERS - AUTO DEFROST
- 115V, 60 HZ, 3.7 AMPS, 1/2 HP, BTU/HR 4932
- UL/C-UL LISTED
- SHIPPING WEIGHT: 310 LBS.
Temp Controller:
- MICROPROCESSOR TEMPERATURE CONTROLLER
- ADJUSTABLE OPERATING TEMPERATURE RANGE: -15°C TO -25°C
- DIGITAL TEMPERATURE DISPLAY AND ALARM MODULE
- SAMPLE SIMULATED DIGITAL TEMPERATURE DISPLAY; .1° RESOLUTION
- ADJUSTABLE TEMPERATURE DISPLAY IN CELSIUS OR FAHRENHEIT
- AUDIBLE AND VISUAL HIGH/LOW TEMPERATURE ALARMS
- SENSOR ERROR ALARM
- POWER FAILURE ALARM
- RESETTABLE 1-POINT MIN/MAX HISTORY
- REMOTE ALARM CONTACTS
- ALARM VALIDATION (AUDIBLE, VISUAL, AND REMOTE ALARM)
- ALARM MUTE WITH RING BACK
