ABS 30 Cu Ft TempLog ABT-FRP-30-TS Flammable Storage Refrigerator ABT-FRP-30-TS

Regular price $10,995.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

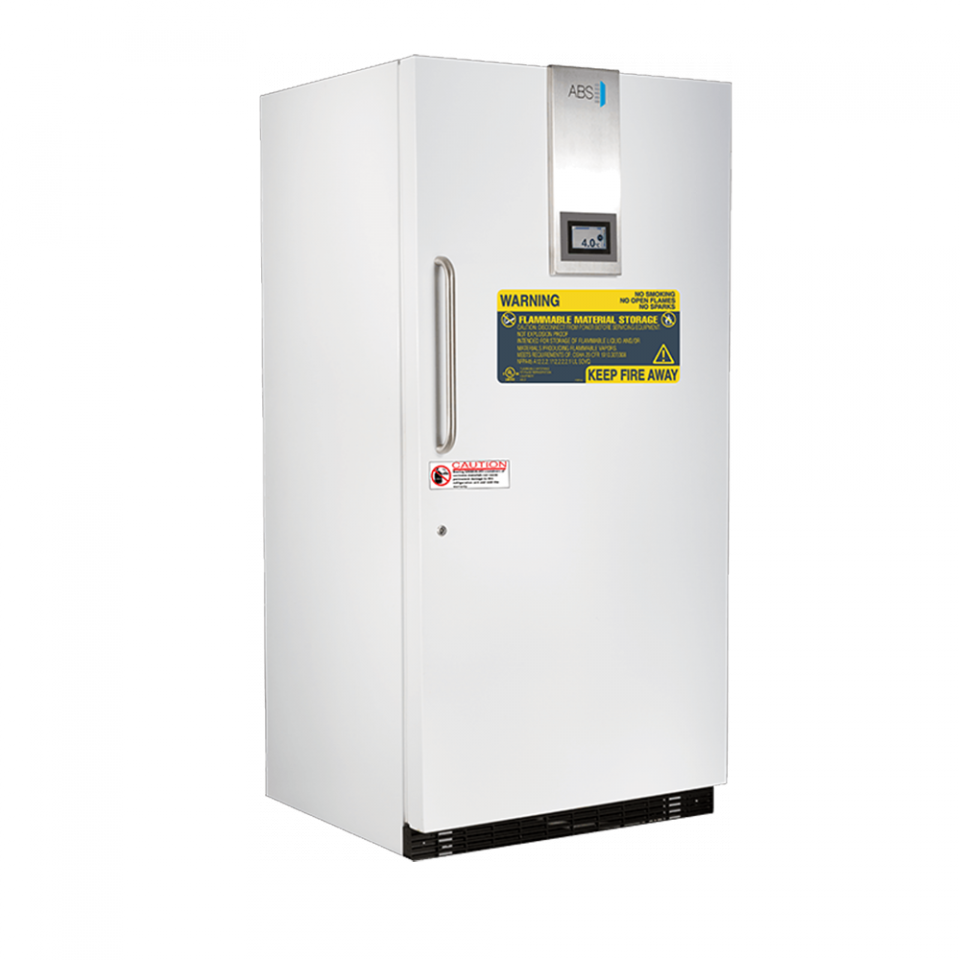

American Biotech Supply 30 Cu Ft TempLog ABT-FRP-30-TS Flammable Storage Refrigerator ABT-FRP-30-TS

The TempLog Premier Flammable Storage Refrigerators Meet NFPA and OSHA guidelines 45 and 70 for the refrigerated storage of flammable (volatile) materials in general laboratory work areas. There are no electrical components located in the interior of the unit and the compressor’s electrical components have been sealed in a vapor-proof enclosure for additional safety.

These units are NOT designed for use in environments where volatile/explosive conditions could potentially exist.

The Touch Screen temperature display and alarm module offers industry-leading product security real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual alarms, remote alarm contacts, a 4-20mA output and an access port. A USB port is provided for easy data transfer.

Details:

  • 30 CU. FT. CAPACITY
  • FIVE ADJUSTABLE SHELVES
  • KEYED DOOR LOCK
  • MAGNETIC DOOR GASKET FOR POSITIVE SEAL
  • HEAVY DUTY DOOR HANDLE
  • LEVELING LEGS
  • CFC-FREE REFRIGERANT (R404A), FOAM INSULATION AND PACKAGING
  • THREE YEAR PARTS AND LABOR WARRANTY
  • UNITS MEET NFPA GUIDELINES 45 AND 70

Specifications:

  • EXTERIOR DIMENSIONS:
    WIDTH: 35 ¾"
    DEPTH: 35"
    HEIGHT: 76 ¾"
  • CYCLE DEFROST
  • 115V, 60 HZ, 6 AMPS, 1/3 HP
  • UL/C-UL LISTED
  •  SHIPPING WEIGHT: 421 LBS.

Temp Controller:

  • MICROPROCESSOR TEMPERATURE CONTROLLER
  • ADJUSTABLE OPERATING TEMPERATURE RANGE: 1°C TO 10°C
  • TOUCH SCREEN DIGITAL TEMPERATURE DISPLAY AND ALARM MODULE WITH BATTERY BACK-UP TO SUPPORT TEMPERATURE MONITORING AND ALARMS
  • PASSWORD-PROTECTED CONTROL PANEL
  • SAMPLE SIMULATED DIGITAL TEMPERATURE DISPLAY; .1° RESOLUTION, ADJUSTABLE TEMPERATURE DISPLAY IN CELSIUS OR FAHRENHEIT
  • ACTIVE TEMPERATURE SCALE BAR DISPLAY
  • RESETTABLE 1-POINT MIN/MAX HISTORY
  • DIGITAL 24-HOUR TEMPERATURE CHART
  • TEMPERATURE DATA LOGGING
  • USB PORT FOR DATA TRANSFER AND SOFTWARE UPDATES
  • REAL-TIME OPERATIONAL DISPLAY CLOCK
  • 4-20MA OUTPUT
  • ELECTRONIC TROUBLESHOOTING GUIDE
  • ELECTRONIC QR CODE TO ACCESS OWNER’S MANUAL & TECHNICAL SUPPORT
  • CONTACT INFORMATION
  • ADJUSTABLE ALARM VOLUME
  • AUDIBLE AND VISUAL HIGH/LOW TEMPERATURE ALARMS
  • SENSOR ERROR ALARM
  • POWER FAILURE ALARM
  • DOOR AJAR ALARM
  • LOW BATTERY ALARM
  • OPERATION INDICATOR
  • ALARM VALIDATION (AUDIBLE, VISUAL, AND REMOTE ALARM)
  • ALARM MUTE WITH RING BACK
  • REMOTE ALARM CONTACTS
