ABS 30 Cu Ft TempLog Premier Manual Defrost Laboratory Freezer -20C ABT-MFP-30-TS

Regular price $10,995.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

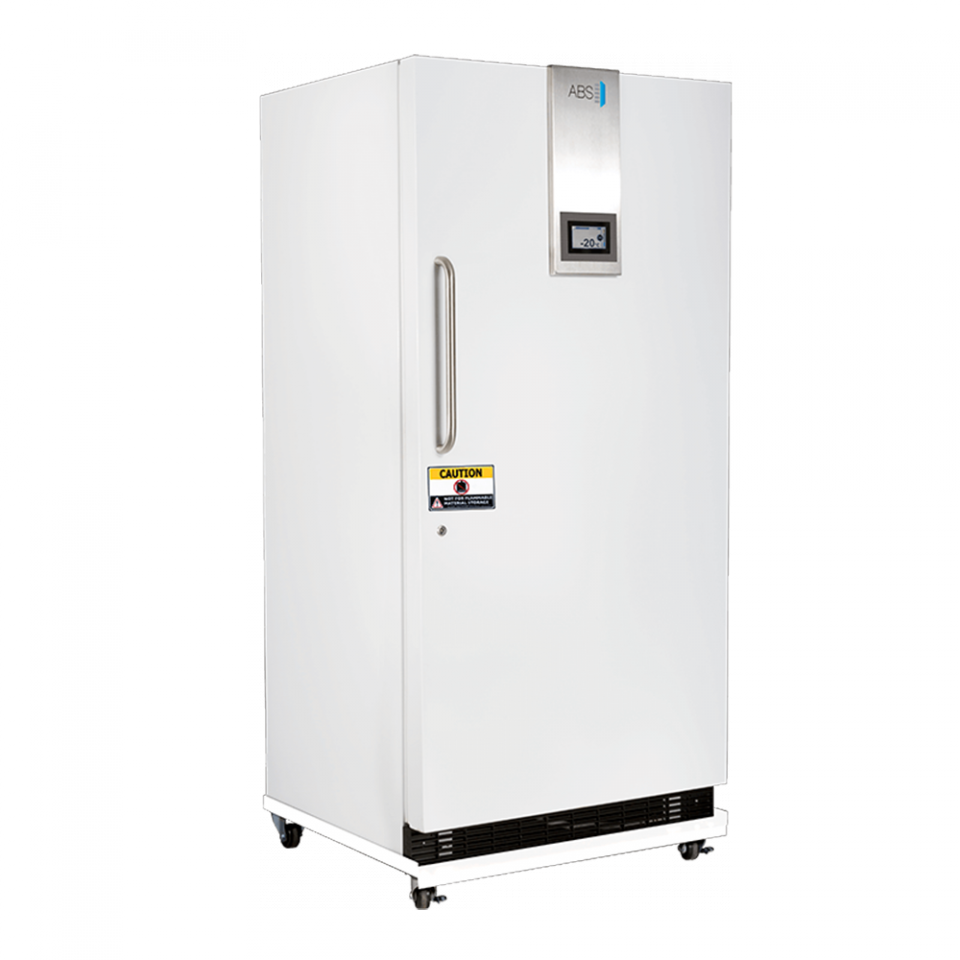

American BioTech Supply 30 Cu Ft TempLog Premier Manual Defrost Laboratory Freezer -20°C ABT-MFP-30-TS

TempLog Premier Manual Defrost Laboratory Freezers are purpose built for scientific and medical applications. Units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A manual defrost design prevents product damaging temperature spikes from defrost cycles.

Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.

The Touch Screen temperature display and alarm module offers the latest in advanced temperature control and data logging. Offering industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller.

Real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual high and low temperature alarms, along with power outage, sensor error and door ajar alarms, remote alarm dry contacts, a 4-20mA output and an access port are provided to simplify connections to existing facility monitoring systems. A USB port is provided for easy transfer as well as software updates.

Details:

  • 30 CU. FT. CAPACITY
  • FIVE INNER "FAST-FREEZE COMPARTMENTS" WITH DOORS FOR TEMPERATURE MAINTENANCE
  • FOUR FIXED SHELVES
  • KEYED DOOR LOCK
  • MAGNETIC DOOR GASKET FOR POSITIVE SEAL
  • STAINLESS STEEL DOOR HANDLE
  • CASTER PLATFORM (ADDS 4" TO HEIGHT)
  • CFC-FREE REFRIGERANT (R404A), FOAM INSULATION AND PACKAGING
  • THREE YEAR PARTS AND LABOR WARRANTY, PLUS ADDITIONAL TWO YEAR COMPRESSOR PARTS WARRANTY

Specifications:

  • EXTERIOR DIMENSIONS:
    WIDTH: 35 ¾"
    DEPTH: 34 ¼"
    HEIGHT: 76 ½” WITH CASTER PLATFORM; 72 ½" WITHOUT CASTER PLATFORM
  • MANUAL DEFROST
  • 115V, 60 HZ, 6 AMPS, 1/3 HP
  • UL/C-UL LISTED
  • SHIPPING WEIGHT: 462 LBS.

Temp Controller:

  • MICROPROCESSOR TEMPERATURE CONTROLLER
  • ADJUSTABLE OPERATING TEMPERATURE RANGE: -15°C TO -25°C
  • TOUCH SCREEN DIGITAL TEMPERATURE DISPLAY AND ALARM MODULE WITH BATTERY BACK-UP TO SUPPORT TEMPERATURE MONITORING AND ALARMS
  • PASSWORD-PROTECTED CONTROL PANEL
  • SAMPLE SIMULATED DIGITAL TEMPERATURE DISPLAY; .1° RESOLUTION, ADJUSTABLE TEMPERATURE DISPLAY IN CELSIUS OR FAHRENHEIT
  • ACTIVE TEMPERATURE SCALE BAR DISPLAY
  • RESETTABLE 1-POINT MIN/MAX HISTORY
  • DIGITAL 24-HOUR TEMPERATURE CHART
  • TEMPERATURE DATA LOGGING
  • USB PORT FOR DATA TRANSFER AND SOFTWARE UPDATES
  • REAL-TIME OPERATIONAL DISPLAY CLOCK
  • 4-20MA OUTPUT
  • ELECTRONIC TROUBLESHOOTING GUIDE
  • ELECTRONIC QR CODE TO ACCESS OWNER’S MANUAL & TECHNICAL SUPPORT CONTACT INFORMATION
  • ADJUSTABLE ALARM VOLUME
  • AUDIBLE AND VISUAL HIGH/LOW TEMPERATURE ALARMS
  • SENSOR ERROR ALARM
  • POWER FAILURE ALARM
  • DOOR AJAR ALARM
  • LOW BATTERY ALARM
  • OPERATION INDICATOR
  • ALARM VALIDATION (AUDIBLE, VISUAL, AND REMOTE ALARM)
  • ALARM MUTE WITH RING BACK
  • REMOTE ALARM CONTACTS
