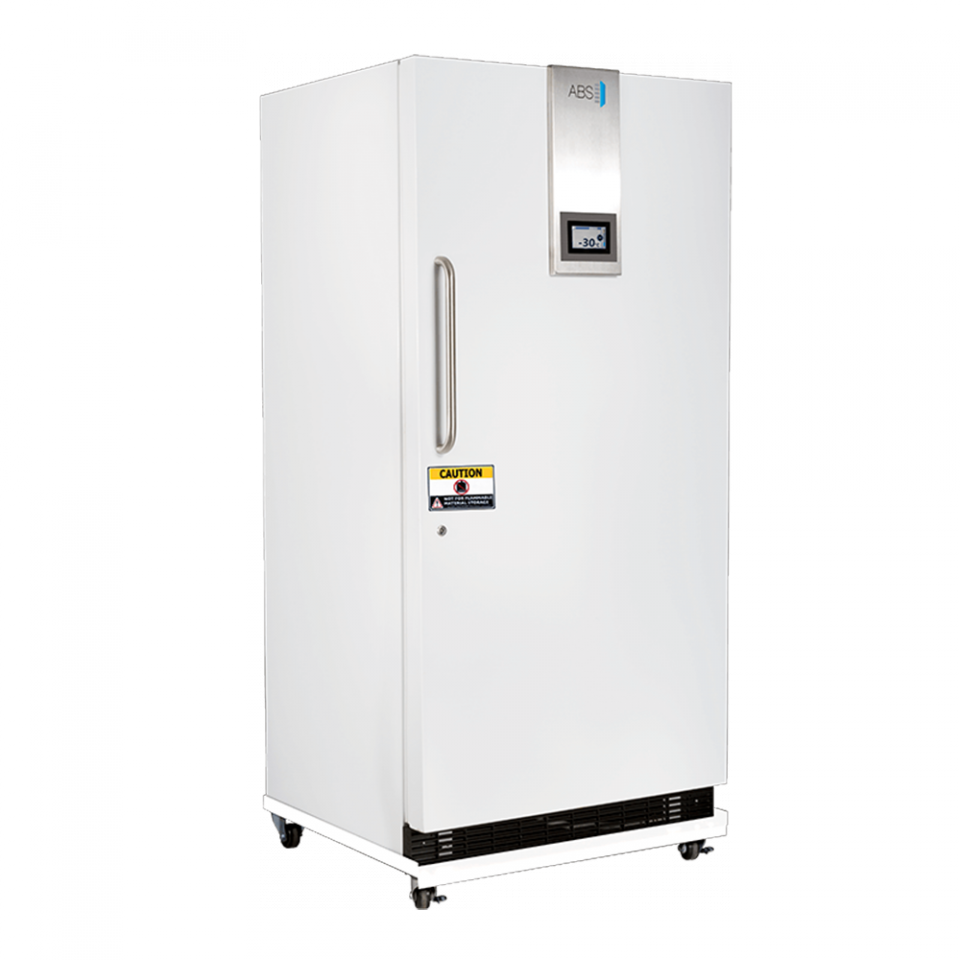

American BioTech Supply 30 Cu Ft TempLog Premier Manual Defrost Laboratory Freezer -30°C ABT-MFP-3030-TS

TempLog Premier Manual Defrost Laboratory Freezers are purpose built for scientific and medical applications. Units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A manual defrost design prevents product damaging temperature spikes from defrost cycles.

Defrosting of the unit will need to be performed periodically to prevent severe ice build-up.

The Touch Screen temperature display and alarm module offers the latest in advanced temperature control and data logging. Offering industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller.

Real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual high and low temperature alarms, along with power outage, sensor error and door ajar alarms, remote alarm dry contacts, a 4-20mA output and an access port are provided to simplify connections to existing facility monitoring systems. A USB port is provided for easy transfer as well as software updates.

Details:

• 30 CU. FT. CAPACITY
• FIVE INNER "FAST-FREEZE COMPARTMENTS" WITH DOORS FOR TEMPERATURE MAINTENANCE AND RECOVERY
• FOUR FIXED SHELVES
• KEYED DOOR LOCK
• MAGNETIC DOOR GASKET FOR POSITIVE SEAL
• STAINLESS STEEL DOOR HANDLE
• CASTER PLATFORM (ADDS 4" TO HEIGHT)
• CFC-FREE REFRIGERANT (R404A), FOAM INSULATION AND PACKAGING
• THREE YEAR PARTS AND LABOR WARRANTY, PLUS ADDITIONAL TWO YEAR COMPRESSOR PARTS WARRANTY

Specifications:

• EXTERIOR DIMENSIONS:
  WIDTH: 35 ¾"
  DEPTH: 34 ¼"
  HEIGHT: 76 ½” WITH CASTER PLATFORM; 72 ½” WITHOUT CASTER PLATFORM
• MANUAL DEFROST
• 115V, 60 HZ, 10.7 AMPS, 1 HP
• UL/C-UL LISTED
• SHIPPING WEIGHT: 462 LBS.

Temp Controller:

• MICROPROCESSOR TEMPERATURE CONTROLLER:
• ADJUSTABLE OPERATING TEMPERATURE RANGE:  -27°C TO -33°C
• TOUCH SCREEN DIGITAL TEMPERATURE DISPLAY AND ALARM MODULE WITH BATTERY BACK-UP TO SUPPORT TEMPERATURE MONITORING AND ALARMS
• PASSWORD-PROTECTED CONTROL PANEL
• SAMPLE SIMULATED DIGITAL TEMPERATURE DISPLAY; .1° RESOLUTION, ADJUSTABLE TEMPERATURE
• DISPLAY IN CELSIUS OR FAHRENHEIT
• ACTIVE TEMPERATURE SCALE BAR DISPLAY
• RESETTABLE 1-POINT MIN/MAX HISTORY
• DIGITAL 24-HOUR TEMPERATURE CHART
• TEMPERATURE DATA LOGGING
• USB PORT FOR DATA TRANSFER AND SOFTWARE UPDATES
• REAL-TIME OPERATIONAL DISPLAY CLOCK
• 4-20MA OUTPUT
• ELECTRONIC TROUBLESHOOTING GUIDE
• ELECTRONIC QR CODE TO ACCESS OWNER’S MANUAL & TECHNICAL SUPPORT CONTACT INFORMATION
• ADJUSTABLE ALARM VOLUME
• AUDIBLE AND VISUAL HIGH/LOW TEMPERATURE ALARMS
• SENSOR ERROR ALARM
• POWER FAILURE ALARM
• DOOR AJAR ALARM
• LOW BATTERY ALARM
• OPERATION INDICATOR
• ALARM VALIDATION (AUDIBLE, VISUAL, AND REMOTE ALARM)
• ALARM MUTE WITH RING BACK
• REMOTE ALARM CONTACTS
