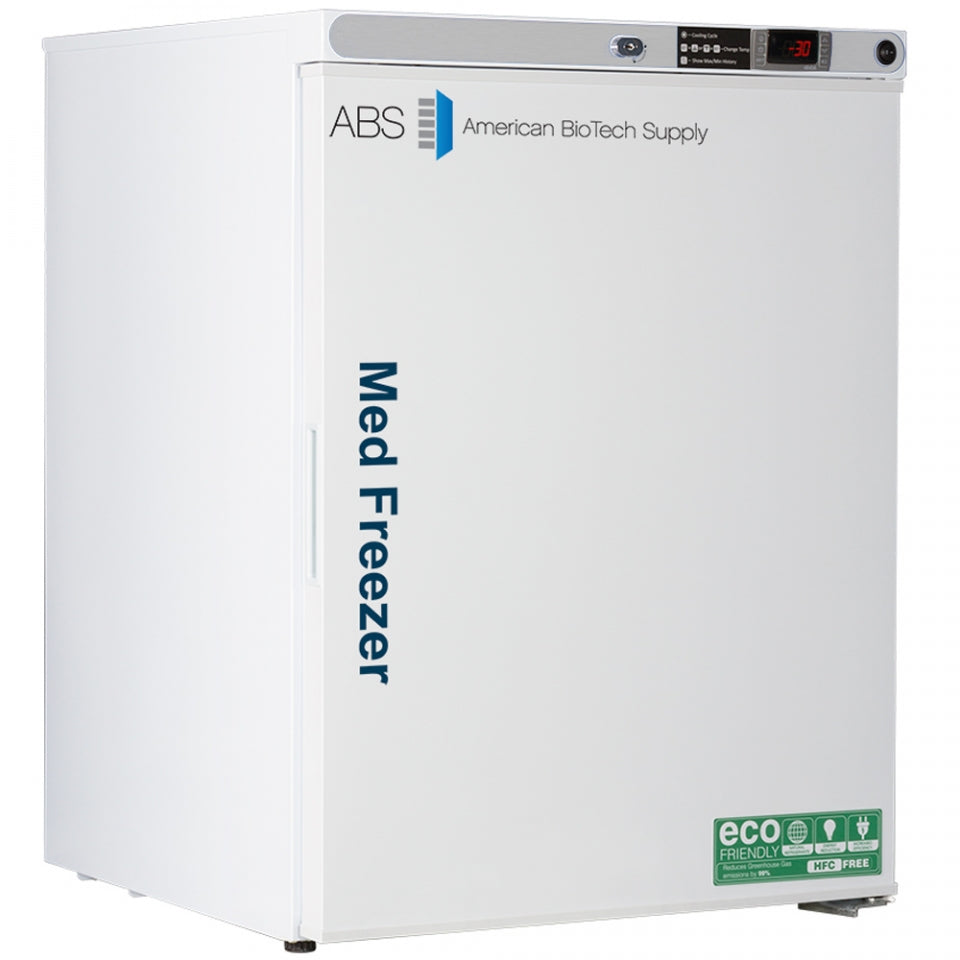

American BioTech Supply 4 Cu Ft Premier Pharmacy/Vaccine Freezer-Freestanding PH-ABT-HC-UCFS-0430
The Premier Pharmacy Freestanding Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.
Periodic defrosting is required.
The Freestanding models (“UCFS”) require 4” of clearance around back and sides of the unit for proper ventilation. Improper installation will void the warranty and will lead to temperature maintenance issues, overheating and possible failure.
The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C and -15°C) in the freezer.
Details:
- 4 CU. FT. CAPACITY
- THREE ADJUSTABLE SHELVES WITH GUARD RAIL ON BACK TO PREVENT PRODUCT FROM BEING PUSHED AGAINST THE BACK WALL
- BOTTOM FOOTED SHELF TO ALLOW AIR CIRCULATION
- BACK WALL EVAPORATOR COVER
- LED INTERIOR LIGHT
- VACCINE STORAGE POWER CORD WARNING LABEL
- KEYED DOOR LOCK
- RECESSED DOOR HANDLE
- MAGNETIC DOOR GASKET FOR POSITIVE SEAL
- LEVELING LEGS
- HFC-FREE REFRIGERANT (R290), FOAM INSULATION AND PACKAGING
- PHARMACY REFRIGERATOR/FREEZER TOOLKIT AND TEMPERATURE LOGS
- TWO YEAR PARTS AND LABOR WARRANTY
- NOTE: THIS UNIT MUST HAVE 4” CLEARANCE ON SIDES AND BACK FOR ADEQUATE VENTILATION
Specifications:
- EXTERIOR DIMENSIONS:
WIDTH: 23 ¾"
DEPTH: 24”
HEIGHT: 32 1/8" " - MANUAL DEFROST
- 115V, 60 HZ, 2.2 AMPS 1/4 HP
- UL/C-UL LISTED
- SHIPPING WEIGHT: 128 LBS.
Temp Controller:
- MICROPROCESSOR TEMPERATURE CONTROLLER
- DIGITAL TEMPERATURE DISPLAY AND ALARM MODULE WITH BATTERY BACK-UP TO SUPPORT TEMPERATURE MONITORING AND ALARMS
- AUDIBLE AND VISUAL HIGH AND LOW TEMPERATURE ALARMS
- REMOTE ALARM CONTACTS
- 2 PROBES; 1 IN AIR AND 1 IN GLYCOL BOTTLE
- ADJUSTABLE OPERATING TEMPERATURE RANGE FROM -4°F TO -22°F (-20°C TO -30°C). FACTORY PRESET AT -22°F (-30°C)
- TEMPERATURE MONITOR DEVICE (TMD) COMPLIES WITH THE CURRENT CDC GUIDELINES, WITH 3 YEARS CERTIFICATION OF CALIBRATION, “BUFFERED” PROBE IN THE PRODUCT SIMULATED SOLUTION, MIN/MAX MEMORY. F/C SWITCHABLE, FIELD INSTALLABLE, AND VISUAL & AUDIBLE TEMP ALARM
