ABS 4.2 Cu. Ft. Premier Pharmacy/Vaccine Freezer Auto Defrost-Built-in PH-ABT-HC-UCBI-0420A-LH

Regular price $1,995.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

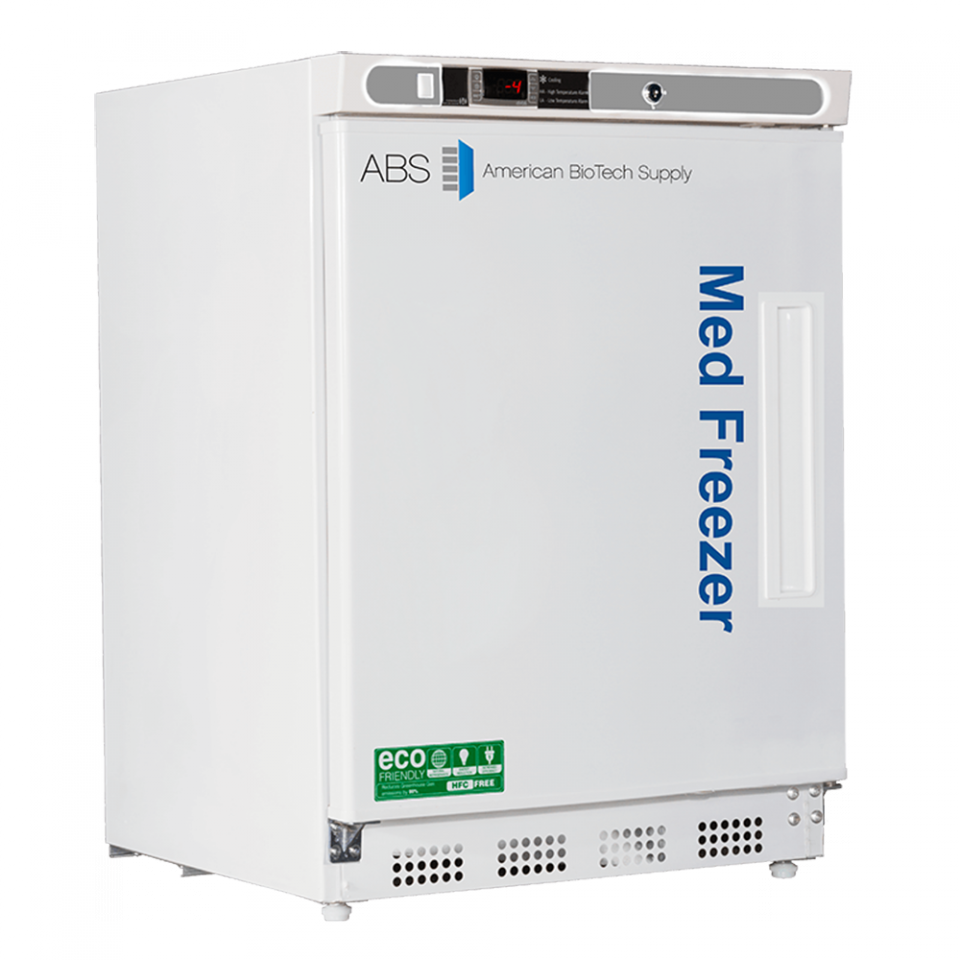

American BioTech Supply 4.2 Cu Ft Premier Pharmacy/Vaccine Freezer Auto Defrost-Built-in PH-ABT-HC-UCBI-0420ALH

The Premier Pharmacy Built In Undercounter Freezers feature a microprocessor temperature controller and display, allow for precise temperature control, verification and recovery versus mechanical style thermostats. Critical samples and supplies are security backed with an extensive package of audible and visual alarms.

DISCLAIMER: Auto defrost freezers incorporate an electric heater installed on the evaporator that assist in the removal of the frost and ice. Although the heater helps speed up the frost and ice removal, it can raise the temperatures within the freezer

The Built-In models are designed with a "front breathing" ventilation system, eliminating the need for clearance around the top and sides of the unit; enabling the user to incorporate these units into cabinets and other applications where free space is limited.

Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C to 8°C) in the refrigerator and -58°F to 5°F (or -50°C and -15°C) in the freezer.

Details:

  • 4.2 CU. FT. CAPACITY
  • THREE ADJUSTABLE SHELVES WITH GUARD RAIL ON BACK TO PREVENT PRODUCT FROM BEING PUSHED AGAINST THE BACK WALL
  • VACCINE STORAGE POWER CORD WARNING LABEL
  • BACK WALL EVAPORATOR COVER
  • KEYED DOOR LOCK
  • HEAVY DUTY DOOR HANDLE
  • MAGNETIC DOOR GASKET FOR POSITIVE SEAL
  • LEVELING LEGS
  • HFC-FREE REFRIGERANT (R290), FOAM INSULATION AND PACKAGING
  • PHARMACY REFRIGERATOR/FREEZER TOOLKIT AND TEMPERATURE LOGS
  • TWO YEAR PARTS AND LABOR WARRANTY, PLUS AN ADDITIONAL THREE YEAR COMPRESSOR PARTS ONLY WARRANTY
  • DISCLAIMER:  AUTO DEFROST FREEZERS INCORPORATE AN ELECTRIC HEATER INSTALLED ON THE EVAPORATOR THAT ASSIST IN THE REMOVAL OF THE FROST AND ICE. ALTHOUGH THE HEATER HELPS SPEED UP THE FROST AND ICE REMOVAL, IT CAN RAISE THE TEMPERATURES WITHIN THE FREEZER

Specifications:

  • EXTERIOR DIMENSIONS:
    WIDTH: 23 3/4"
    DEPTH: 24 1/2”
    HEIGHT: 33 1/8"
  • AUTO DEFROST
  • 115V, 60 HZ, 1.8 AMPS 1/8 HP
  • UL/C-UL LISTED
  • SHIPPING WEIGHT:  143 LBS.

Temp Controller:

  • MICROPROCESSOR TEMPERATURE CONTROLLER
  • DIGITAL TEMPERATURE DISPLAY AND ALARM MODULE WITH BATTERY BACK-UP TO SUPPORT TEMPERATURE MONITORING AND ALARMS
  • AUDIBLE AND VISUAL HIGH AND LOW TEMPERATURE ALARMS
  • 2 PROBES; 1 IN AIR AND 1 IN GLYCOL BOTTLE
  • ADJUSTABLE OPERATING TEMPERATURE RANGE: 5°F TO -13°F (-15°C TO -25°C)
  • AUTO DEFROST CYCLE EVERY 6 HOURS:
    MAX AIR TEMP IN EMPTY FREEZER: 4.9°C
    MAX AIR TEMP IN LOADED FREEZER: 0.6°C
    MAX SAMPLE TEMP IN EMPTY FREEZER: -9.1°C
    MAX SAMPLE TEMP IN LOADED FREEZER: -11.2°C
  • TEMPERATURE MONITOR DEVICE (TMD) COMPLIES WITH THE CURRENT CDC GUIDELINES, WITH 3 YEARS CERTIFICATION OF CALIBRATION, “BUFFERED” PROBE IN THE PRODUCT SIMULATED SOLUTION, MIN/MAX MEMORY. F/C SWITCHABLE, FIELD INSTALLABLE, AND VISUAL & AUDIBLE TEMP ALARM
