ABS 4.6 Cu. Ft. Built-in Glass Door Vaccine Refrigerator ADA NSF/ANSI 456 Certified

Regular price $2,957.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

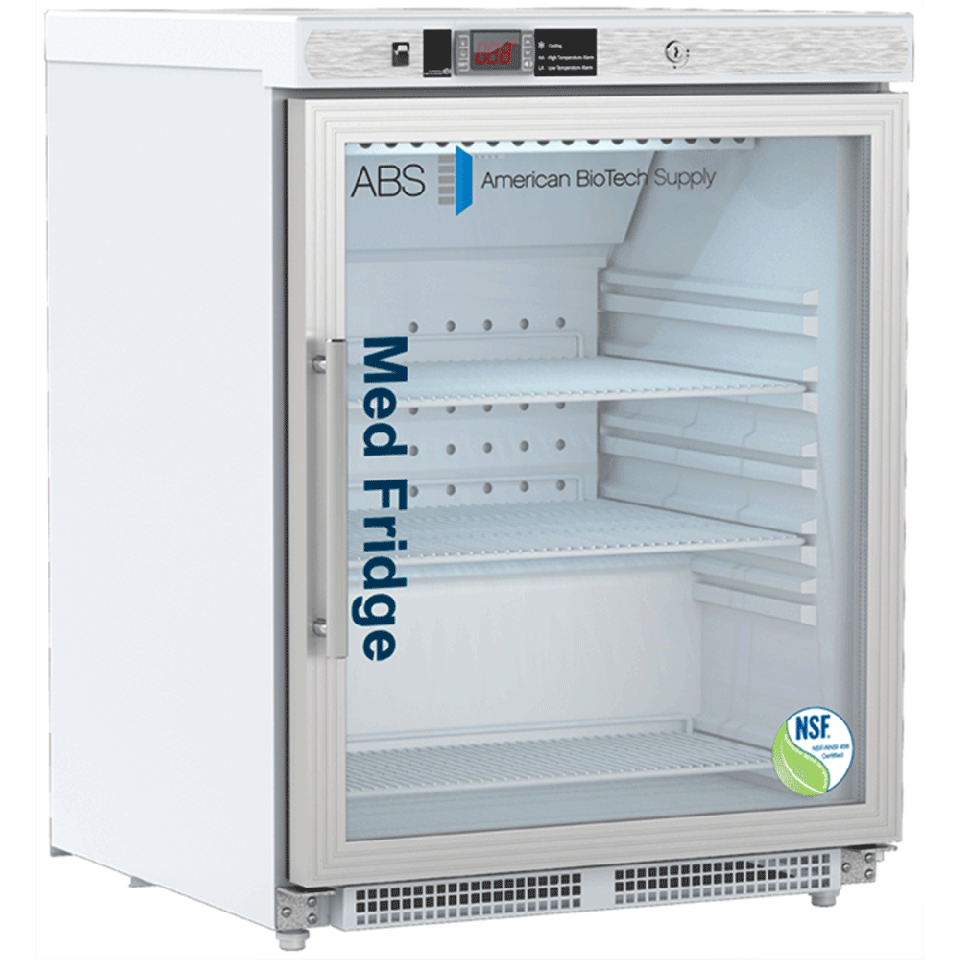

ABS 4.6 Cu. Ft. Built-in Glass Door Vaccine Refrigerator ADA NSF/ANSI 456 Certified PH-ABT-NSF-UCBI-0404G-ADA

These premier built-in undercounter refrigerators are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. With NSF certification, units protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.

The ADA compliant, glass door refrigerators utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, LED interior lighting, and probe access ports with included probes.

American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency.

The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.



*-one or more of these certifications may apply to this unit.

Description



DESCRIPTION SINGLE GLASS DOOR PHARMACY/VACCINE UNDERCOUNTER REFRIGERATOR BUILT-IN ADA COMPLIANT
OPERATIONAL ENVIRONMENT INDOOR USE ONLY, +18°C TO +26°C (+65°F TO +78°F), <70% RH
STORAGE CAPACITY 4.6 CU. FT. GROSS VOLUME
DOOR ONE SWING SOLID DOOR, SELF-CLOSING, RIGHT HINGED, NON-REVERSIBLE, MAGNETIC SEALED GASKET, KEYED LOCK
SHELVES THREE SHELVES (TWO ADJUSTABLE/ONE FIXED) WITH GUARD RAIL ON BACK
MOUNTING LOW PROFILE ROLLER WHEELS AND LEVELING LEGS
INTERIOR LIGHTING SHIELDED, SWITCHED LED LIGHTING, FULL COVERAGE, BALANCED SPECTRUM
AIRFLOW MANAGEMENT FORCED AIR TECHNOLOGY, PATENT PENDING
EXTERNAL PROBE ACCESS REAR WALL PORT (1/2") DIA.
INSULATION CABINET IS FOAMED-IN-PLACE WITH EPA COMPLIANT HIGH DENSITY URETHANE FOAM
EXTERIOR MATERIALS WHITE POWDER COATED STEEL
ACCESS CONTROL PYXIS®, OMNICELL® AND ACUDOSE RX® COMPATIBLE
GENERAL WARRANTY TWO (2) YEARS PARTS AND LABOR WARRANTY, EXCLUDING DISPLAY PROBE CALIBRATION
COMPRESSOR WARRANTY FIVE (5) YEARS COMPRESSOR WARRANTY
 EXTERIOR WIDTH 23 7/8"
 EXTERIOR DEPTH 26"
 EXTERIOR HEIGHT 31 15/16"
PRODUCT WEIGHT 100 LBS.
SHIPPING WEIGHT 140 LBS.
RATED AMPERAGE 1.74 AMPS
POWER PLUG/POWER CORD NEMA 5-15 PLUG, 8 TO 10 FT TYPICAL, CONFORMS TO UL471 REQUIREMENTS, VACCINE STORAGE POWER CORD WARNING LABEL
FACILITY ELECTRICAL REQUIREMENT 110-120V AC: 15 A (MINIMUM)
AGENCY LISTING AND CERTIFICATION CERTIFIED IN ACCORDANCE WITH THE NSF/ANSI 456 STANDARD FOR VACCINE STORAGE. UL, C-UL, ETL, C-ETL LISTED (EITHER SINGLE OR DUAL AGENCY LISTINGS) AND CERTIFIED TO UL471 STANDARD, HYDROCARBON REFRIGERANT SAFETY.
INCLUDED ACCESSORIES TEMPERATURE MONITOR DEVICE (TMD) COMPLIES WITH THE CURRENT CDC GUIDELINES, WITH 3 YEARS CERTIFICATION OF CALIBRATION, “BUFFERED” PROBE IN THE PRODUCT SIMULATED SOLUTION, MIN/MAX MEMORY. F/C SWITCHABLE, FIELD INSTALLABLE, AND VISUAL & AUDIBLE TEMP ALARM PHARMACY REFRIGERATOR/FREEZER TOOLKIT AND TEMPERATURE LOGS

Performance

REFRIGERATION SYSTEM
COMPRESSOR HERMETIC, HIGH PERFORMANCE
REFRIGERANT EPA SNAP COMPLIANT, R600A, ISOBUTANE
CONDENSER HYBRID FIN AND TUBE WITH LOW NOISE FAN
EVAPORATOR PLATE WALL
DEFROST CYCLE OPTIMIZED, ZERO ENERGY
PERFORMANCE
UNIFORMITY¹ (CABINET AIR) +/- 0.8°C
STABILITY² (CABINET AIR) +/- 1.2°C
MAXIMUM TEMPERATURE VARIATION (CABINET AIR) +/- 1.4°C
TEMPERATURE RISE AFTER AN AFTER 8 SEC DOOR OPENINGS TEMPERATURE DID NOT EXCEED 6.4°C AT ANY PROBE FOR ALL REQUIRED NSF/ANSI 456 TESTING PROTOCOLSᶟ
RECOVERY AFTER 3 MIN DOOR OPENING ALL PROBES RECOVER TO UNDER 8°C WITHIN 4.8 MIN.
ENERGY CONSUMPTION 1.15 KWH/DAY⁴
AVERAGE HEAT REJECTION 1.57 KWH/DAY (224 BTU/H)⁴
NOISE PRESSURE LEVEL (DBA) 43 OR LESS INSTALLED
PULL DOWN TIME TO NOMINAL OPERATING TEMP 35 MIN

PERFORMANCE DATA ACQUIRED AT 22°C AMBIENT, USING NSF/ANSI 456 COMPLIANT VALIDATION BALLAST PROBES, EMPTY CHAMBER, DURING STABILIZED STEADY STATE OPERATION AND A DAQ SAMPLING RATE OF ONE MEASUREMENT EVERY 10 SECONDS

  1. UNIFORMITY IS DEFINED AS THE MAXIMUM VARIANCE IN TEMPERATURE ACROSS ALL PROBES AT ANY POINT IN TIME OVER THE TESTING PERIOD
  2. STABILITY IS DEFINED AS THE MAXIMUM VARIANCE IN TEMPERATURE EXPERIENCED BY ANY SINGLE PROBE OVER THE TESTING PERIOD
  3. TEMPERATURE PERFORMANCE FOR ALL LOADED AND UNLOADED DOOR OPENING PROTOCOLS, ALL ALARM, CONTROLLER AND PROBE REQUIREMENTS AS DEFINED IN THE NSF/ANSI 456 STANDARD FOR VACCINE STORAGE
  4. DATA PER ENERGY STAR TEST RESULTS OR EQUIVALENT TESTING AND CALCULATION.  HEAT REJECTION BASED ON DAILY AVERAGES, NOT CONTINUOUS OPERATION.  PERFORMANCE EXCEEDS ENERGY STAR REQUIREMENTS.

Temperature Controller

CONTROLLER TECHNOLOGY PARAMETRIC, MICROPROCESSOR, LED DISPLAY WITH 0.1°C RESOLUTION
TEMPERATURE SETPOINT RANGE 1°C TO 10°C (SETPOINT MUST REMAIN UNALTERED FROM THE FACTORY SETTING TO REMAIN COMPLIANT WITH NSF/ANSI 456 PERFORMANCE REQUIREMENTS)
DISPLAY PROBE CALIBRATED, STAINLESS STEEL
EXTERNAL ALARM CONNECTION STATE SWITCHING REMOTE ALARM CONTACTS
ALARMS VISUAL AND AUDIBLE INDICATORS
HIGH / LOW TEMPERATURE, COMPLIANT WITH ALARM REQUIREMENTS DEFINED IN THE NSF/ANSI 456 STANDARD FOR VACCINE STORAGE
SIMULATOR BALLAST 20 ML BOTTLE, GLASS BEAD THERMAL MEDIA
