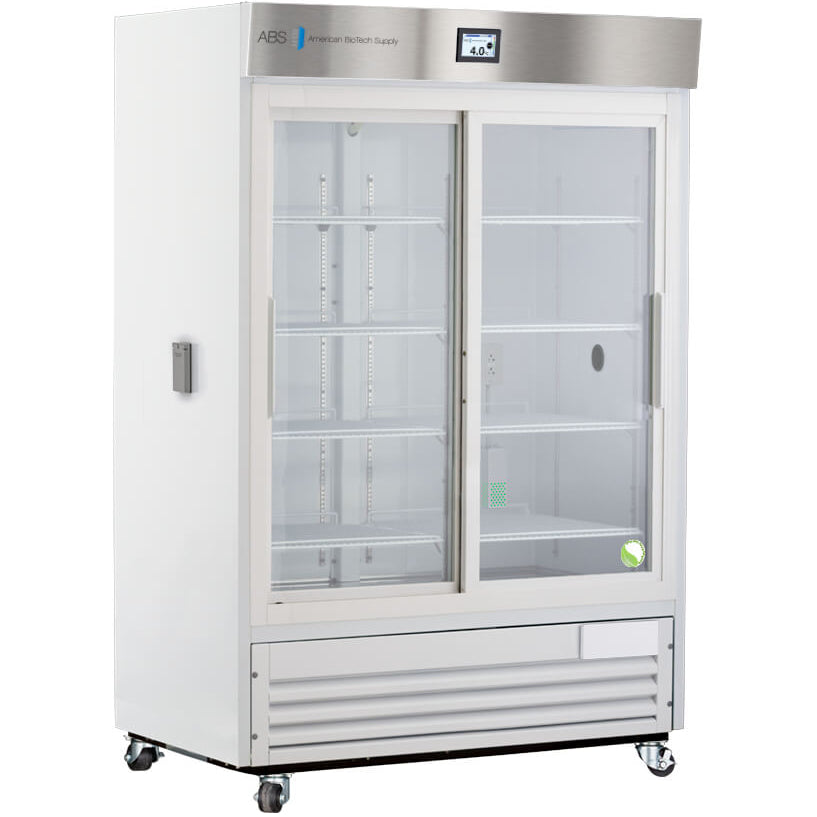

refAmerican BioTech Supply 47 Cu.Ft. TempLog Premier Chromatography Refrigerator, 1°C - 10°C, Sliding Glass Doors, ABT-HC-CP-47-TS
The TempLog Premier Glass door Chromatography Refrigerators are purpose built for scientific and medical applications. Units feature a digital microprocessor temperature controller allowing for the precise temperature management necessary for critical samples and supplies. A forced air directional refrigeration system provides superior temperature uniformity and recovery after door openings. An automatic cycle-defrost design prevents product damaging temperature spikes.
The Touch Screen temperature display and alarm module offers the latest in advanced temperature control and data logging. Industry-leading product security with a monitoring and alarm system that is 100% independent of the temperature controller. Real-time sample simulated temperatures are constantly displayed, logged and supported by audible/visual high and low temperature alarms, along with power outage, sensor error and door ajar alarms, remote alarm dry contacts, a 4-20mA output and an access port are provided to simplify connections to existing facility monitoring systems. A USB port is provided for easy transfer as well as software updates.
Environmentally friendly, natural hydrocarbon (HC) refrigerants (not containing hydrofluorocarbons) vastly reduce global-warming potential (GWP) while meeting new EPA/SNAP mandates and UL, ASHRAE compliance guidelines.
Details:
- 47 CU. FT. CAPACITY
- TWO SLIDING GLASS DOORS, SELF-CLOSING
- EIGHT ADJUSTABLE SHELVES (ADJUSTABLE IN ½” INCREMENTS)
- FORCED DRAFT AIR CIRCULATION
- KEYED DOOR LOCK
- ONE GFCI PROTECTED DUPLEX ELECTRICAL OUTLET
- TWO 2” ACCESS PORTS WITH SPRING-LOADED, SELF-CLOSING GASKETED METAL COVERS
- MAGNETIC DOOR GASKET FOR POSITIVE SEAL
- HEAVY DUTY DOOR HANDLE
- LED INTERIOR LIGHTS ARE SAFETY SHIELDED AND SWITCH CONTROLLED
- SWIVEL CASTERS (3 ½”)
- PROBE ACCESS PORT (3/4")
- ADVANCED HYDROCARBON DETECTOR
- WHITE POWDER-COATED STEEL EXTERIOR AND INTERIOR
- HIGH DENSITY URETHANE FOAM CABINET INSULATION
- HYDROCARBON, NATURAL REFRIGERANT (R290)
- ETL LISTED
- THREE YEAR PARTS AND LABOR WARRANTY, PLUS AN ADDITIONAL TWO YEAR COMPRESSOR PARTS WARRANTY
Specifications:
- EXTERIOR DIMENSIONS: 55 5/8” W X 33 1/4” D X 81 ¾” H WITH CASTERS; 78 ¼” H WITHOUT CASTERS. *WIDTH W/ACCESS PORTS CLOSED; 63 5/8” WIDTH W/ACCESS PORTS OPEN
- CYCLE DEFROST
- 115V, 60 HZ, 4.5 AMPS, 1/4 HP
- SHIPPING WEIGHT: 508 LBS. NOTE: THIS UNIT REQUIRES TWO (2) OUTLETS
Temp Controller:
- MICROPROCESSOR TEMPERATURE CONTROLLER
- ADJUSTABLE OPERATING TEMPERATURE RANGE: 1°C - 10°C
- TOUCH SCREEN DIGITAL TEMPERATURE DISPLAY AND ALARM MODULE
- PASSWORD-PROTECTED CONTROL PANEL
- SAMPLE SIMULATED DIGITAL TEMPERATURE DISPLAY; .1° RESOLUTION, ADJUSTABLE TEMPERATURE DISPLAY IN CELSIUS OR FAHRENHEIT
- ACTIVE TEMPERATURE SCALE BAR DISPLAY
- RESETTABLE 1-POINT MIN/MAX HISTORY AND DIGITAL 24-HOUR TEMPERATURE CHART TEMPERATURE DATA LOGGING
- USB PORT FOR DATA TRANSFER AND SOFTWARE UPDATES
- REAL-TIME OPERATIONAL DISPLAY CLOCK
- 4-20MA OUTPUT
- ELECTRONIC TROUBLESHOOTING GUIDE
- ELECTRONIC QR CODE TO ACCESS OWNER’S MANUAL & TECHNICAL SUPPORT CONTACT INFO ADJUSTABLE ALARM VOLUME
- AUDIBLE AND VISUAL HIGH/LOW TEMPERATURE ALARMS
