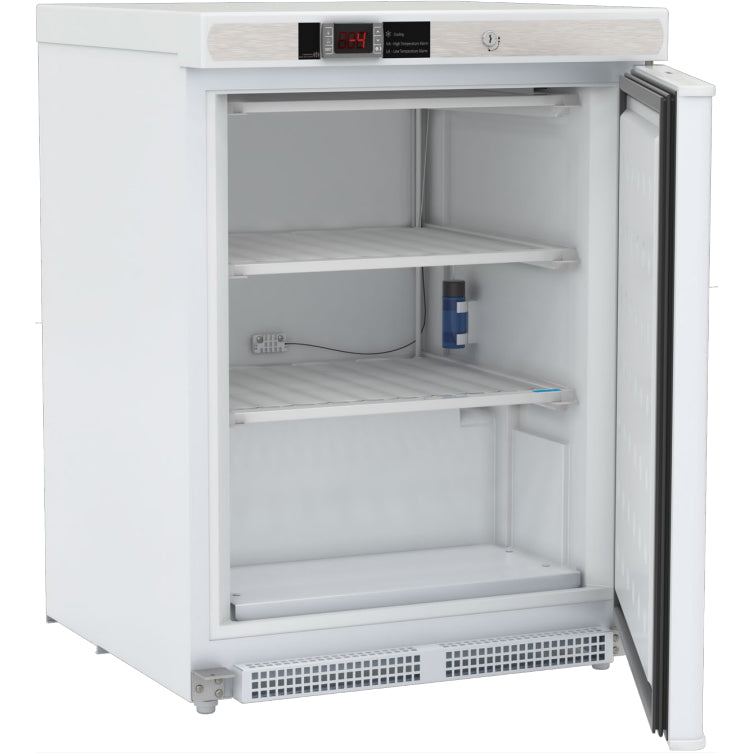

American BioTech Supply Built-in Capable Undercounter Vaccine Freezer, 4.2 Cu. Ft., ADA Certified to NSF/ANSI 456, PH-ABT-NSF-UCBI-0420-ADA
These premier ADA certified undercounter freezers are designed in accordance with the NSF/ANSI 456 Standard for Vaccine Storage. Freezers protect pharmaceuticals at optimal temperatures, preventing waste and allowing for peak delivery.
These models utilize microprocessor controllers and feature temperature alarms, remote alarm contacts, and probe access ports with included probes.
American Biotech Supply Vaccine Storage Refrigerators utilize HFC-free refrigerant for environmental health and energy efficiency
The acceptable temperature ranges for vaccine storage are 36°F to 46°F (or 2°C and 8°C) in the refrigerator and -58°F and 5°F (or -50°C and -15°C) in freezers.
Details
| DESCRIPTION: | SINGLE SOLID DOOR PHARMACY/VACCINE UNDERCOUNTER MANUAL DEFROST FREEZER BUILT-IN ADA COMPLIANT |
| OPERATIONAL ENVIRONMENT: | INDOOR USE ONLY. OPTIMAL OPERATING RANGE: +18°C TO +26°C (+65°F TO +78°F), <70% RH |
| STORAGE CAPACITY: | 4.2 CU. FT. GROSS VOLUME |
| DOOR: | ONE SWING SOLID DOOR, SELF-CLOSING, RIGHT HINGED, NON-REVERSIBLE, MAGNETIC SEALED GASKET, KEYED LOCK |
| SHELVES: | TWO SHELVES, FIXED |
| MOUNTING: | LOW PROFILE ROLLER WHEELS AND LEVELING LEGS |
| INTERIOR LIGHTING: | N/A |
| EXTERNAL PROBE ACCESS: | REAR WALL PORT (3/4") DIA. |
| INSULATION: | CABINET IS FOAMED-IN-PLACE WITH EPA COMPLIANT HIGH DENSITY URETHANE FOAM |
| EXTERIOR MATERIALS: | WHITE POWDER COATED STEEL |
| ACCESS CONTROL: | PYXIS®, OMNICELL® AND ACUDOSE RX® COMPATIBLE |
| GENERAL WARRANTY: | TWO (2) YEARS PARTS AND LABOR WARRANTY, EXCLUDING DISPLAY PROBE CALIBRATION |
| COMPRESSOR WARRANTY: | FIVE (5) YEARS |
| POWER PLUG/POWER CORD: | NEMA 5-15 PLUG, 8 TO 10 FT TYPICAL, CONFORMS TO UL471 REQUIREMENTS, VACCINE STORAGE POWER CORD WARNING LABEL |
| FACILITY ELECTRICAL REQUIREMENT: | 110-120V AC: 15 A (MINIMUM) |
| AGENCY LISTING AND CERTIFICATION: | COMPLIANT WITH THE THERMAL PERFORMANCE REQUIREMENTS AS DEFINED IN THE NSF/ANSI 456 STANDARD FOR VACCINE STORAGE FOR ALL TESTING PROTOCOLS. UL, C-UL, ETL, C-ETL LISTED (EITHER SINGLE OR DUAL AGENCY LISTINGS) AND CERTIFIED TO UL471 STANDARD, HYDROCARBON REFRIGERANT SAFETY. |
| INCLUDED ACCESSORIES: | -TEMPERATURE MONITOR DEVICE (TMD) COMPLIES WITH THE CURRENT CDC GUIDELINES, WITH 3 YEARS CERTIFICATION OF CALIBRATION, “BUFFERED” PROBE IN THE PRODUCT SIMULATED SOLUTION, MIN/MAX MEMORY. °F/°C SWITCHABLE, FIELD INSTALLABLE, AND VISUAL & AUDIBLE TEMP ALARM -PHARMACY REFRIGERATOR/FREEZER TOOLKIT AND TEMPERATURE LOGS |
Specifications
| DIMENSIONS: | 23 3/4” W X 24 1/2” D X 31 15/16" H |
| PRODUCT WEIGHT: | 100 LBS. |
| SHIPPING WEIGHT: | 132 LBS. |
| RATED AMPERAGE: | 1.5 AMPS |
Temp Controller
| CONTROLLER TECHNOLOGY: | PARAMETRIC, MICROPROCESSOR, LED DISPLAY WITH 0.1°C RESOLUTION |
| TEMPERATURE SETPOINT RANGE: | -15°C TO -28°C (CONTROLLER SETTINGS MUST REMAIN UNALTERED TO ENSURE THERMAL PERFORMANCE COMPLIANT WITH NSF/ANSI 456 REQUIREMENTS) |
| DISPLAY PROBE: | CALIBRATED, STAINLESS STEEL |
| EXTERNAL ALARM CONNECTION: | STATE SWITCHING REMOTE ALARM CONTACTS |
| ALARMS: | VISUAL AND AUDIBLE INDICATORS: HIGH / LOW TEMPERATURE, COMPLIANT WITH ALARM REQUIREMENTS DEFINED IN THE NSF/ANSI 456 STANDARD FOR VACCINE STORAGE |
| SIMULATOR BALLAST: | 20 ML BOTTLE, GLASS BEAD THERMAL MEDIA |
Product Documents
We recommend requesting a quote for a more accurate shipping estimate.
There are 4 shipping options available
*Shipping Options*
LTL – Dock to dock only (End user has a raised dock and does not require any assistance
with unloading the unit)
LTL + Liftgate – Carrier will deliver the unit by lowering to the ground only (End user will be responsible for moving the equipment inside)
LTL + Liftgate & Threshold – Carrier will deliver the unit by lowering to the ground and taking the unit through the nearest entry access (End user will be responsible for moving to desired location and unpackaging)
LTL + Inside Delivery – Includes delivery appointment, liftgate, two man delivery, pallet jack, four wheel dolly, placement in room of choice, unpacking, debris removal and installation of casters and/or door handles (if applicable) (End user is responsible for plugging in and any temperature setting applications)
