Product Overview

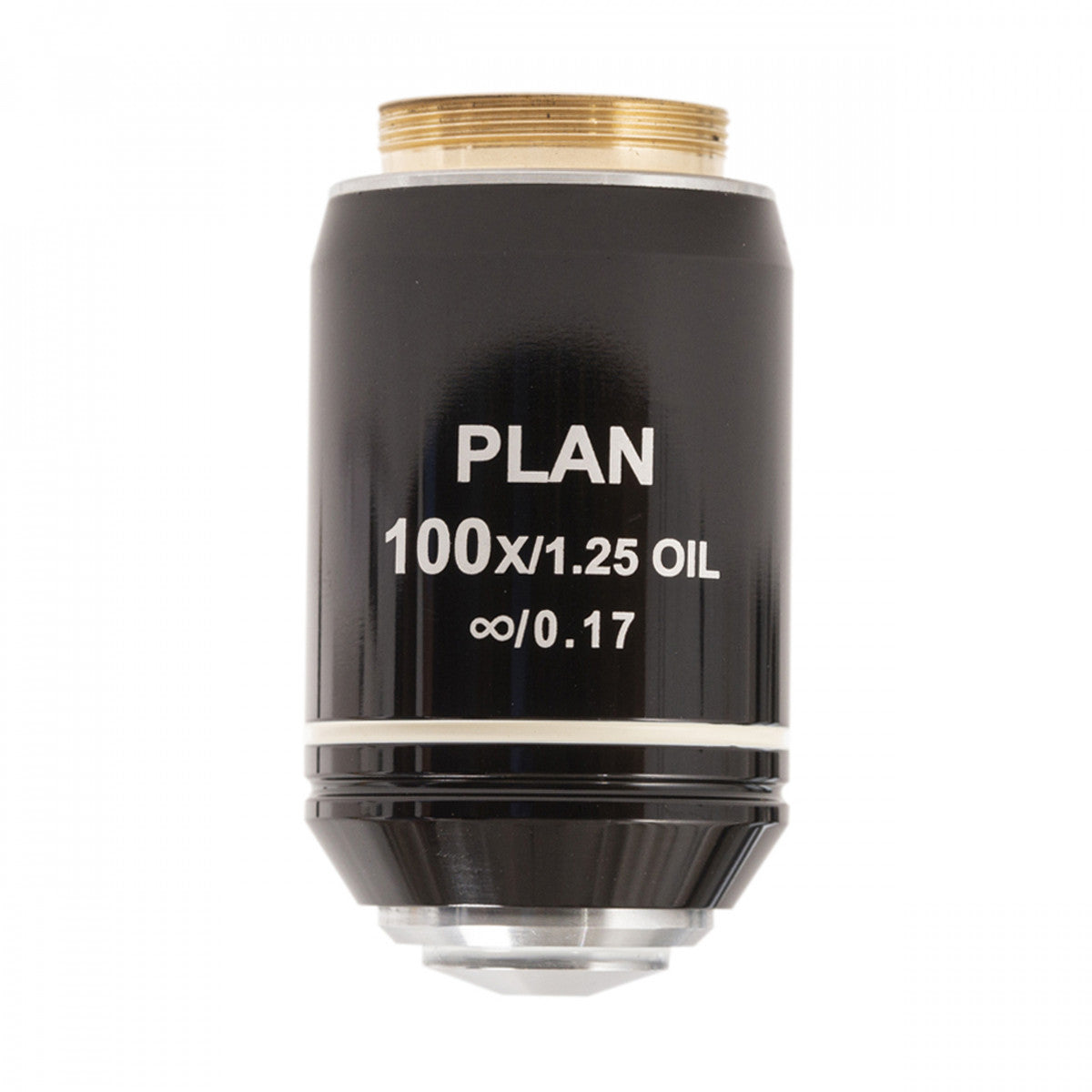

This ACCU-SCOPE 100×R infinity Plan Achromat oil immersion objective provides a flat viewing field for compatible compound microscopes. It is suitable for detailed laboratory slide observation.

Key Features

• Magnification: 100×R
• Numerical aperture: 1.25
• Working distance: 0.18 mm
• Immersion: oil immersion
• Optical design: Infinity Plan Achromat
• Mounting: RMS thread
• Coverglass: No. 1½

What Is This Objective Used For?

• Routine laboratory brightfield microscopy
• Specimen examination and slide documentation
• Replacing or expanding compatible microscope objective sets

Technical Specifications

Compatibility & Ordering

Designed for ACCU-SCOPE microscope families listed below. The original listing also describes possible use on Olympus CX and BX microscopes, but warns that parfocality is not guaranteed. Confirm optical and mechanical compatibility before ordering.

Manufacturer Resources

ACCU-SCOPE manufacturer resources

Additional Product Details

This microscope objective is compatible with Olympus CX and BX microscopes.  Although it will not be 100% parfocal

Specifications

• 100xR Plan Achromat oil immersion objective
• N.A. 1.25
• Working distance 0.18mm
• Provides a flat field of view
• Infinity corrected
• Corrected for No. 1 ½ coverglass
• Spring-loaded bottom lens to prevent damage to the objective and the specimen
• RMS threads
• Designed for 3000-LED, EXC-350 and 3000 series microscopes
• Shipping size 9x7x5 inches
• Shipping weight 1lb
