Product Overview

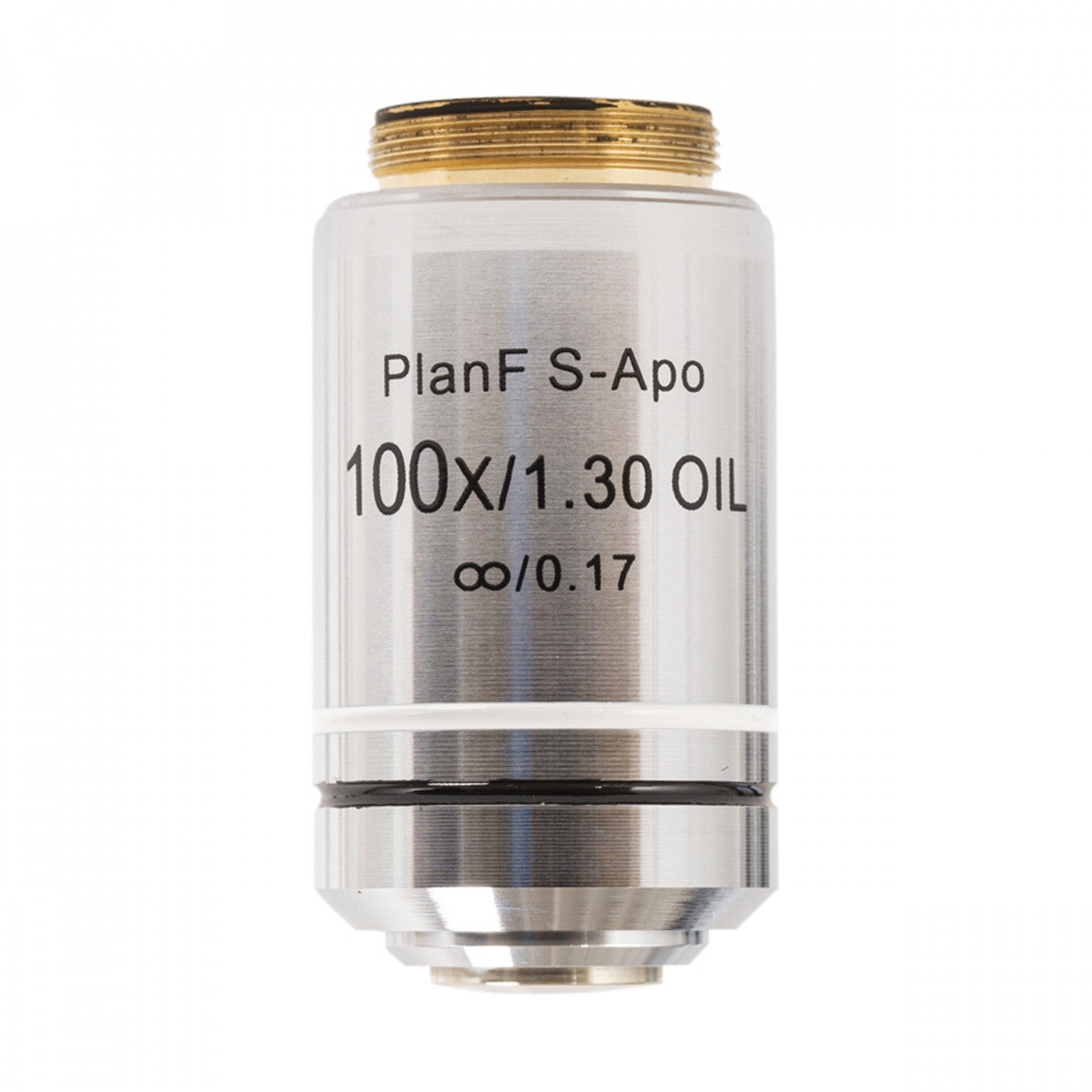

This 100× oil-immersion Plan semi-apochromatic objective provides high-magnification microscopy for compatible ACCU-SCOPE optical systems.

Key Features

• Magnification: 100× oil
• Numerical aperture: 1.30
• Working distance: 0.15 mm
• Optics: Infinity-corrected, RMS thread
• Coverglass: No. 1½
• Design: Spring-loaded front lens

What Is This Product Used For?

• High-magnification brightfield slide observation
• Detailed cell and tissue examination
• Replacing a compatible EXC-350 objective

Technical Specifications

Compatibility & Ordering

Verify microscope optical compatibility and required adapters or accessories before ordering. Contact Microscope Marketplace for assistance.

Manufacturer Resources

ACCU-SCOPE manufacturer resources

Additional Product Details

This microscope objective is compatible with Olympus CX and BX microscopes.  Although it will not be 100% parfocal

Specifications

• 100xR Plan semi-Apochromatic oil immersion objective
• N.A. 1.30
• Working distance 0.15mm
• Superb color reproduction
• Provides a flat field of view
• Infinity corrected
• Corrected for No. 1 ½ coverglass
• Spring-loaded bottom lens to prevent damage to the objective and the specimen
• RMS threads
• Designed for EXC-350 series microscopes
• Shipping size 9x7x5 inches
• Shipping weight 1lb
