Accu-Scope ACCU-SlideMS Manual Slide Scanning System
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Introducing ACCU-SlideMS by ACCU-SCOPE — our Manual Slide Scanning System featuring intuitive, auto-stitching software coupled with a high-speed USB 3.0 camera with state-of-the-art Sony Pregius sensor technology.
The affordable, convenient and flexible solution to all your digital slide-scanning & storage needs! At just a fraction of the cost of a slide scanner, ACCU-SlideMS Manual Slide Scanning System uses your existing microscope. Our intuitive ACCU-Slide software and the high-speed 3.0, 2.3MP camera enable users to scan as little or as much of an entire slide as is needed, resulting in high resolution images for documentation, analysis and more!

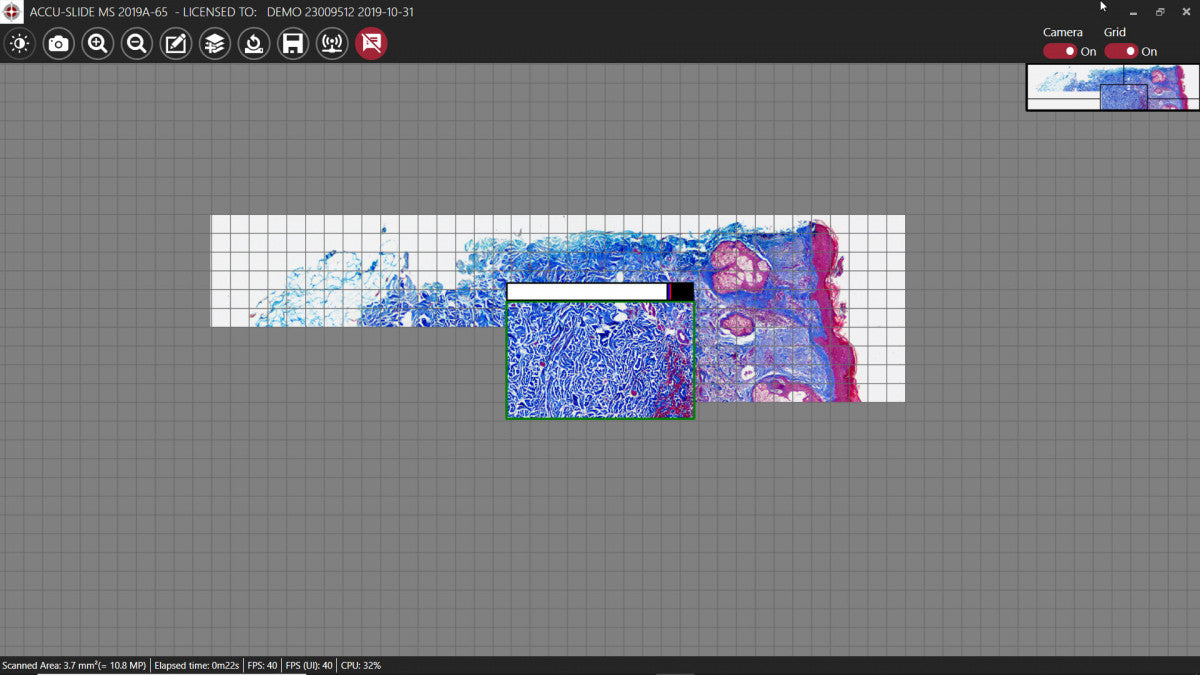

With the ACCU-SlideMS -- digital imaging is simplified with automatic shading correction, automatic stitching as the stage moves, color balancing, focus indicator, and thumbnail overview of the scanning process. It even permits users to scan noncontiguous specimens with its "freeze feature."
Specifications
Model | 2.3 MP Color Camera |
---|---|
Sensor / Model | CMOS / Sony IMX249 |
Sensor Size | 11.3mm x 7.1mm; 1.0x camera adapter (recommended) |
Image Transmission | High-speed |
Pixel Size | 5.86µm x 5.86µm |
Resolution | 1920 (H) x 1200 (V) pixels |
Frame Rate | 41FPS |
Shutter Mode | Global |
Exposure Control | With ACCU-SlideMS Software |
Pixel Bit Depth | 10 or 12 |
Operating Temperature | 0-50% |
Camera Size & Weight | 29.3mm x 29mm x 29mm / 80g |
Data Interface | USB 3.0, compatible with USB 2.0 |
Power Requirements & Consumption | Via USB 3.0 interface; 2.7 watts |
Comuputer System Requirements |
Minimum Intel Core i3 Dual Core 3000/4000/6000 Series Processor 4 GB RAM 500 GB Standard Hard Drive C Intel 7 Series B75/Q77/H77/Z777 . . . Chip Set 1600 x 900 pixels Resolution Display Win 7 Home, 64-bit SP 1 OS Recommended Intel Core i5 or i7 Quad Core 4000/6000/7000 Series Processor 16 GB RAM 512 GB Solid State Hard Drive Intel 100 Series H170/Z170 . . . Or Intel 200 Series Chip Set Windows 10 Professional, 64-bit OS |
Display | 23" Display 1920 x 1080 pixels (good) 27" Display 2560 x 1440 pixels (better) 32" Display 3850 x 2160 pixels (best) |
Warranty | 1 year |
