Product Overview

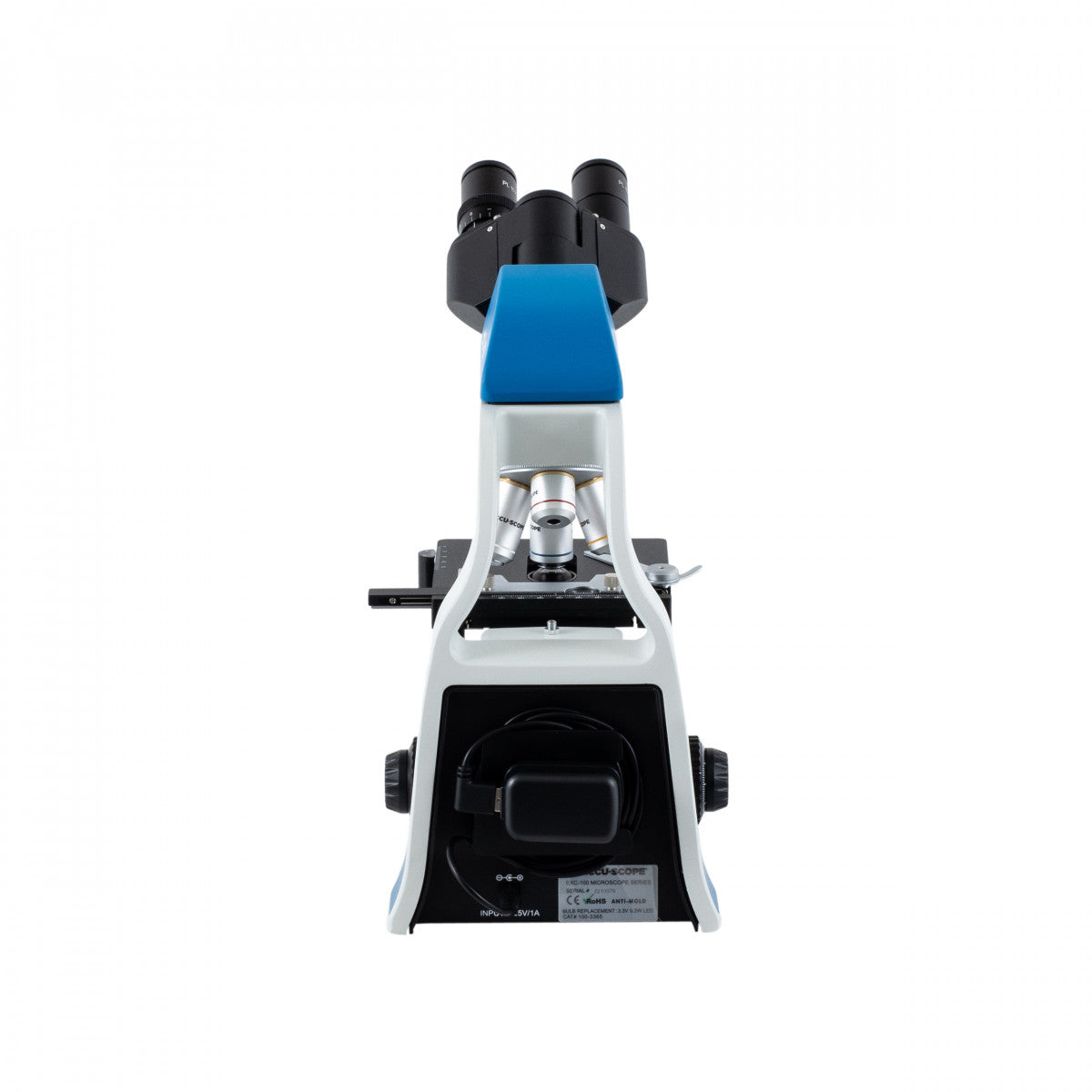

The ACCU-SCOPE EXC-100 binocular microscope is a portable compound microscope with rechargeable LED lighting and 4× through 100× oil-immersion achromat objectives. It is designed for convenient brightfield slide examination in clinics, classrooms, and field settings.
Key Features
- Viewing head: Binocular
- Objectives: 4×, 10×, 40×R, 100×R oil
- Eyepieces: WF10× / 18 mm
- Optical system: DIN 160 mm
What Can This Microscope Be Used For?
Veterinary blood and urine specimen review; teaching; portable field microscopy.
Technical Specifications
| Viewing head | Binocular |
|---|---|
| Objectives | 4×, 10×, 40×R, 100×R oil |
| Eyepieces | WF10× / 18 mm |
| Optical system | DIN 160 mm |
| Illumination | Rechargeable 0.2 W LED |
| Condenser | NA 1.25 Abbe |
Compatibility & Ordering
Confirm the exact viewing head, objectives, illumination, accessories and camera compatibility before ordering. Contact Microscope Marketplace for help selecting a suitable configuration.
Manufacturer Resources
Additional Product Details & Brochures
Excellent Portable microscope with rechargeable LED. This would be an excellent field microscope or Vet microscope
Optical System: DIN Optical System, f=160mm, Anti-Mold
Viewing Head: Binocular; Inclined 30° and rotatable 360°; Single diopter adjustment; Interpupillary distance adjustment 50-75mm
Eyepieces: WF10x/18mm field of view; a pointer is standard in one eyepiece; eyepieces are locked in to prevent tampering
Nosepiece: Rear facing, quadruple, ball bearing with positive click stops to ensure parcentration
Objectives: Achromat objectives; 4x, 10x, 40xR* and 100xR oil* -- (*spring-loaded)
Stage: Double-layer mechanical stage; size 115mm x 125mm; right hand control; vernier scale
Condenser: N.A. 1.25 Abbe condenser with iris diaphragm and filter holder
Stand: Cast alloy aluminum; built in fixed focus stop allows for rapid focusing while protecting specimens; built-in carry handle and cord hanger
Illumination: Variable LED illumination, 0.2W; bulb life rated for 20,000 hours; rechargeable
Focusing System: Coaxial coarse and fine focus with adjustable tension control, 13mm focus travel; focus travel lock; all metal gears
Power: Power adapter delivers 5V1A to microscope from 100V-240V input
Accessories: Dust cover and instruction manual included
Certification: ISO 9001: 2018 and ISO 14001: 2018; UL listed; CE
Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
Microscope Dimensions (LWH): 255mm x 198mm x 368mm
Physical Weight: 12 lbs.
Shipping Dimensions: 19x15x13 inches
Shipping Weight: 15 lbs."
