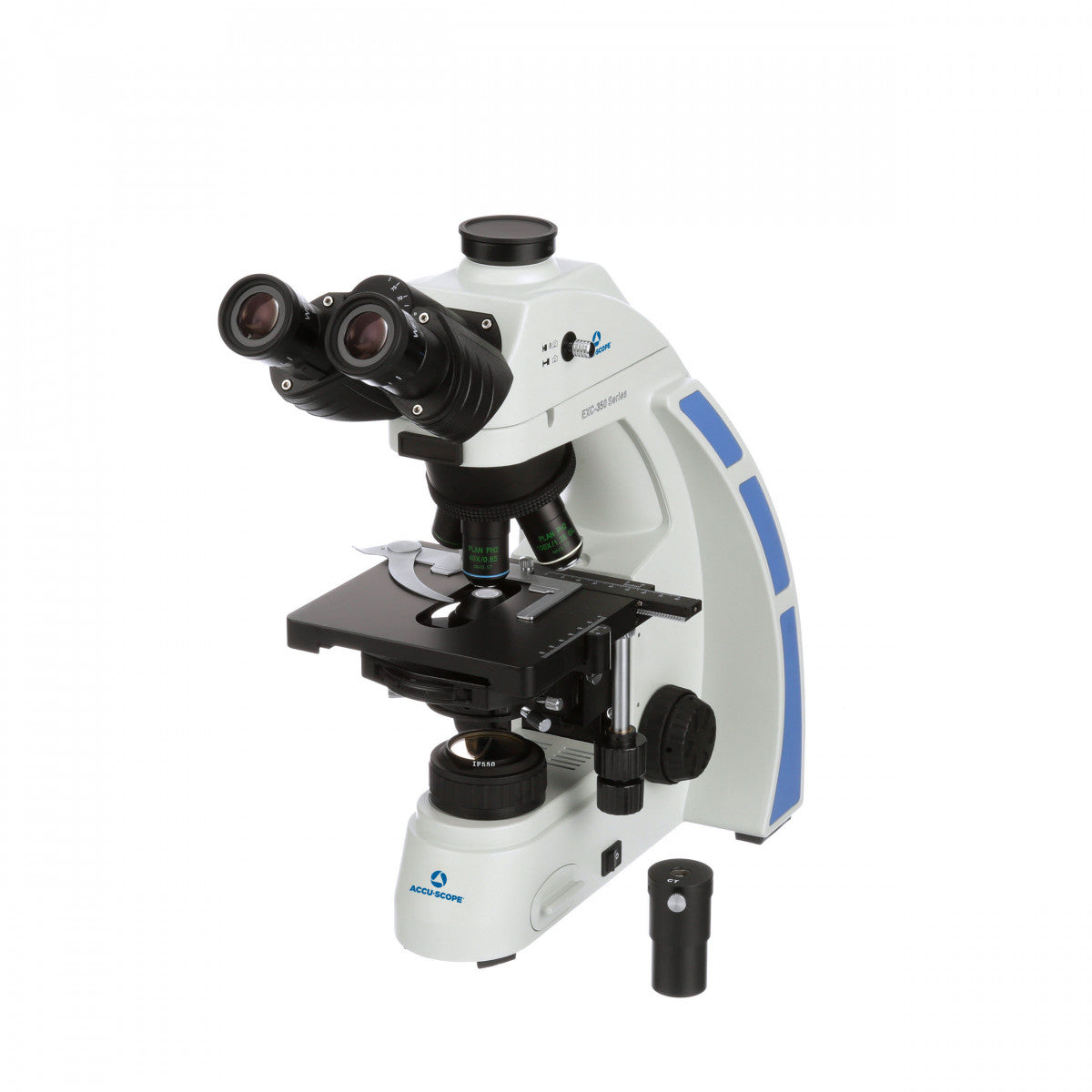

Accu-Scope EXC-350 Trinocular Microscope with Phase Contrast System
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The ACCU-SCOPE EXC-350 trinocular phase-contrast microscope supports transmitted-light viewing of transparent laboratory specimens. Objective and condenser configurations vary by selected model.
Key Features
- EXC-350-PH objectives: Plan Phase 10×, 20×, 40×R and 100×R oil
- EXC-350-SPH objectives: Plan Phase 10× and 40×R
- Phase condenser: Turret or slider depending on configuration
- Eyepieces: WF10×/20 mm
- Illumination: Variable 3 W LED
What Can This Microscope Be Used For?
- Phase-contrast slide observation
- Microscopy teaching
- Laboratory image documentation
Technical Specifications
| EXC-350-PH objectives | Plan Phase 10×, 20×, 40×R and 100×R oil |
|---|---|
| EXC-350-SPH objectives | Plan Phase 10× and 40×R |
| Phase condenser | Turret or slider depending on configuration |
| Eyepieces | WF10×/20 mm |
| Illumination | Variable 3 W LED |
Compatibility & Ordering
Confirm the selected objectives, imaging adapters, and optional contrast accessories before ordering. Contact Microscope Marketplace for configuration support.
Manufacturer Resources
Official ACCU-SCOPE model specifications, manuals and resources
Additional Product Details
Specifications
- Optical System: Infinity optical system, f = 180mm, anti-mold.
- Viewing Head: Trinocular, Siedentopf type. Inclined 30°, rotatable 360°. Eyepoint height can be adjusted 180° to accommodate users of different builds. Interpupillary distance adjustment 50mm-75mm. Two-position light path selector: 100% eyepieces, 80% eyepieces/20% camera port.
- Eyepieces: WF 10x/20mm focusing eyepieces. Eyepieces can be locked-in. Eyepiece accepts a 26.5mm reticle. Optional 12.5x, 15x and 20x eyepieces are also available.
- Nosepiece: Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration. A quadruple nosepiece is also available.
- Objectives for EXC-350-PH: Infinity Plan Achromat Phase Contrast 10x, 20x, 40xR* and 100xR oil* (*spring-loaded).
- Objectives for EXC-350-SPH: Infinity Plan Achromat Phase Contrast 10x and 40xR* (*spring-loaded).
- Stage: Rackless Mechanical Stage, size 150mm x 110mm with X-Y movement range of 76mm X 50mm.
- Turret Phase Condenser: N.A. 1.25 Turret phase condenser with 10x, 20x, 40x, & 100x phase annuli; 550nm green filter and centering telescope
- Slider Phase Condenser: N.A. 1.25 Abbe condenser with (1) phase slider with 10x & 40x phase annuli, brightfield position and green filter.
- Stand: Cast alloy aluminum.
- Illumination: 3-watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use.
- Universal power supply 110v-240v.
- Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
- Accessories: Dust cover, immersion oil (with EXC-350-PH only) and instruction manual.
- Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold
- Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
- Microscope Dimensions (LWH): 294mm x 199mm x 397mm
- Physical Weight: 24 lbs.
- Shipping size: 22x22x11 inches
- Shipping weight: 26 lbs.
