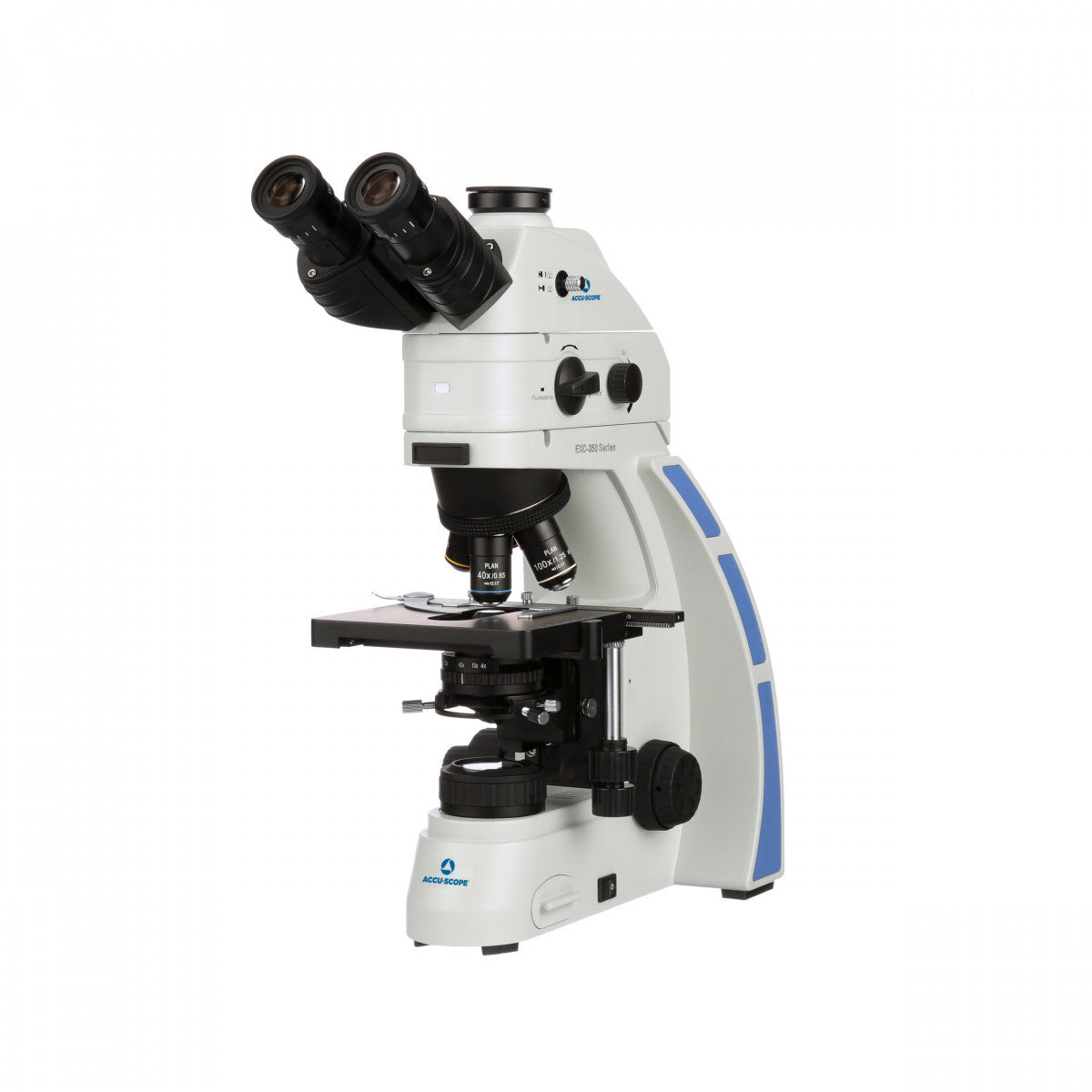

Accu-Scope EXC-350 Trinocular Microscope with Plan Objectives & Integrated LED Fluorescence

$4,141.80
FLUORESCENCE TYPE
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Specifications

  • Optical System: Infinity optical system, f = 180mm, anti-mold.
  • Viewing Head: Trinocular, Siedentopf type. Inclined 30°, rotatable 360°. Eyepoint height can be adjusted 180° to accommodate users of different builds. Interpupillary distance adjustment 50mm-75mm. Two-position light path selector: 100% eyepieces, 80% eyepieces/20% camera port.
  • Eyepieces: WF 10x/20mm focusing eyepieces. Eyepieces can be locked-in. Eyepiece accepts a 26.5mm reticle. Optional 12.5x, 15x and 20x eyepieces are also available.
  • Nosepiece: Rear facing quintuple, ball bearing nosepiece with positive click stops to ensure parcentration. A quadruple nosepiece is also available.
  • Objectives: Infinity Plan Achromat 4x, 10x, 40xR* and 100xR oil* (*spring-loaded).
  • Fluorescence: Integrated single-channel LED fluorescence accessory; available channels are 470 for FITC/GFP, 470 with long-pass emission for Acridine Orange, 455 for TB, 365 for DAPI/Calcofluor White, 560 for Texas Red.
LED EX BS EM
DAPI/Calcofluor White 365nm CT365/10x T400LP CT420LP
Tuberculosis (TB) 455nm 450/50BP A480LP 485LP
eGFP/FITC/Alexa Fluor 488 470nm AT480/30x AT505DC AT535/40m
eGFP/FITC/Acridine Orange (long pass, special request) 470nm AT480/30x AT505DC AT515LP
Texas Red 560nm AT540/25x AT565DC AT575LP
  • Stage: Rackless Mechanical Stage, size 150mm x 110mm with X-Y movement range of 76mm X 50mm.
  • Condenser: NA1.25 Abbe condenser (with slots for sliders) on a rack and pinion with iris diaphragm.
  • Stand: Cast alloy aluminum.
  • Illumination: 3-watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use. Universal power supply 110v-240v.
  • Focusing System: Coaxial focusing system with adjustable tension control and upper limit stop to prevent accidental damage to slides; all metal gears, brass fine focus gear.
  • Accessories: Dust cover, immersion oil and instruction manual.
  • Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold
  • Warranty: 5-year limited warranty for parts, labor and electronic components; 1-year warranty on LED bulb
  • Microscope Dimensions (LWH): 294mm x 199mm x 397mm
  • Physical Weight: 27 lbs.
  • Shipping size: 22x22x11 inches
  • Shipping weight: 29 lbs.
