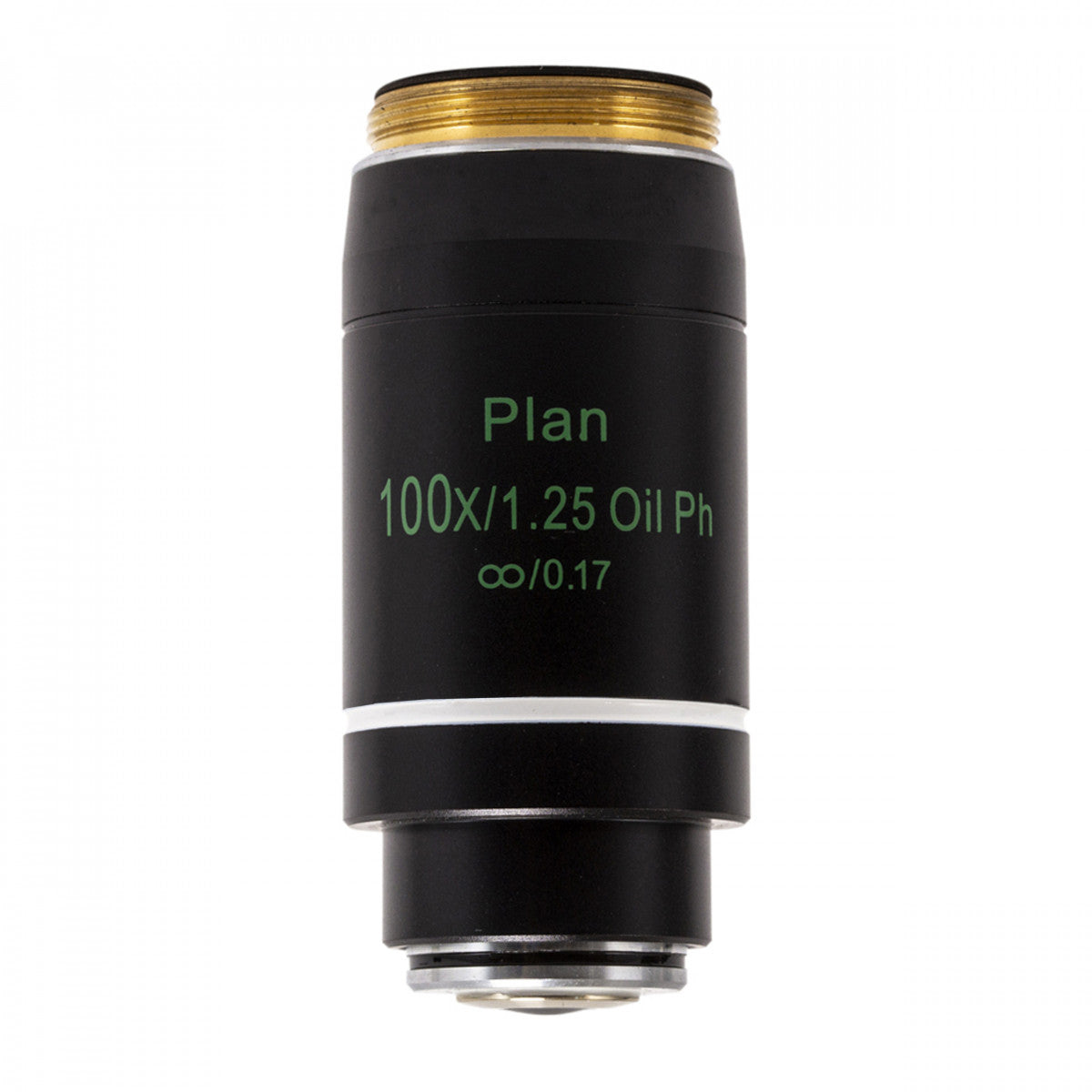

The ACCU-SCOPE 100×R Oil NIS Plan Phase Objective is designed for high-magnification phase contrast imaging on compatible exc-500 microscopes.
Key Features
- Infinity-corrected objective designed for the EXC-500 series
- Phase-contrast configuration
- Model-specific specifications and compatibility below
What Is This Product Used For?
High-magnification phase contrast imaging on compatible EXC-500 microscopes.
Specifications
| Magnification | 100× oil |
|---|---|
| Numerical aperture | 1.25 |
| Working distance | 0.20 mm |
| Threads | M25 |
| Designed for | EXC-500 series |
Compatibility & Ordering
Designed for ACCU-SCOPE EXC-500 systems. Do not assume full optical compatibility or parfocality with Nikon microscopes solely from matching threads. Verify the optical system and phase annulus before purchase.
Manufacturer Resources
Additional Product Details
Specifications
- 100xR NIS Plan Phase oil immersion objective
- N.A. 1.25
- Working distance 0.20mm
- Provides a flat field of view
- Infinity corrected
- Corrected for No. 1 ½ coverglass
- Spring-loaded bottom lens to prevent damage to the objective and the specimen
- M25 threads
- Designed for EXC-500 series microscopes
- Shipping size 9x7x5 inches
- Shipping weight 1lb
This microscope objective is compatible with Nikon E200, E400, E600, CI, 50i/55i and 80i microscopes. Although it will not be 100% parfocal
Unsure if this will fit your microscope?
Give us a call at 919-775-5596 or email info@mundaymicroscope.com. We’re happy to help. If you have your microscope model and the markings on your current objective, have them handy.
