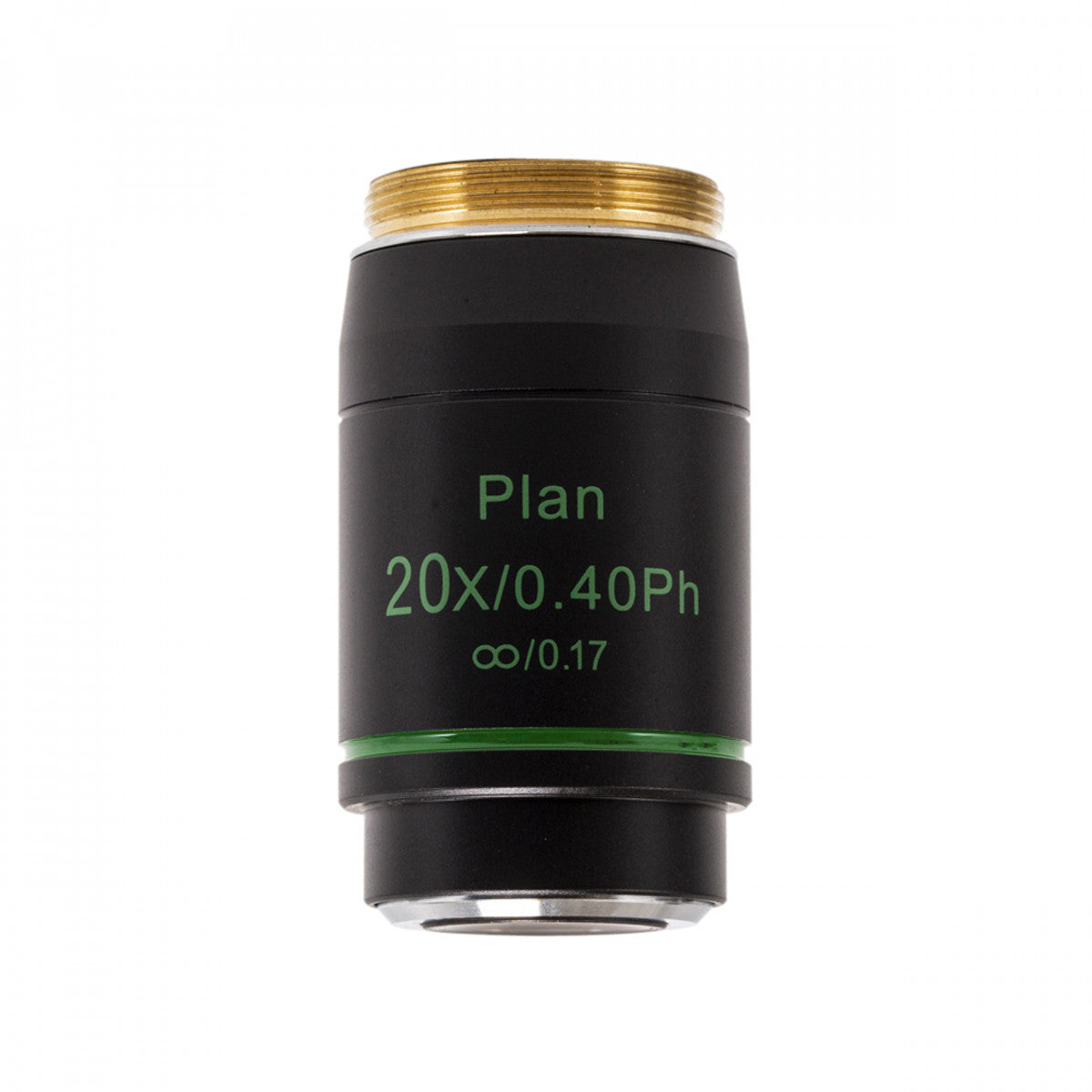

Accu-scope Microscope 20x NIS Plan phase objective, N.A. 0.40, W.D. 12mm
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The ACCU-SCOPE 20× NIS Plan Phase Objective is designed for phase-contrast microscopy on accu-scope exc-500 microscopes.
Key Features
- Designed for the ACCU-SCOPE EXC-500 microscope family
- Model-specific optical specifications listed below
- Useful for configuring or servicing laboratory microscope systems
What Is This Product Used For?
Phase-contrast microscopy on ACCU-SCOPE EXC-500 microscopes.
Technical Specifications
| Magnification | 20× |
|---|---|
| Numerical aperture | 0.40 |
| Working distance | 12 mm |
| Mounting thread | M25 |
| Optical design | Infinity-corrected NIS Plan Phase |
Compatibility & Ordering
Confirm optical system compatibility and configuration before purchase. Nikon compatibility claims in the legacy description should be independently verified; matching mounting threads do not guarantee parfocality or correct optical performance.
Manufacturer Resources
ACCU-SCOPE manufacturer resources
Additional Product Details
Specifications
- 20x NIS Plan Phase objective
- N.A. 0.40
- Working distance 12mm
- Provides a flat field of view
- Infinity corrected
- Corrected for No. 1 ½ coverglass
- M25 threads
- Designed for EXC-500 series microscopes
- Shipping size 9x7x5 inches
- Shipping weight 1lb
This microscope objective is compatible with Nikon E200, E400, E600, CI, 50i/55i and 80i microscopes. Although it will not be 100% parfocal
