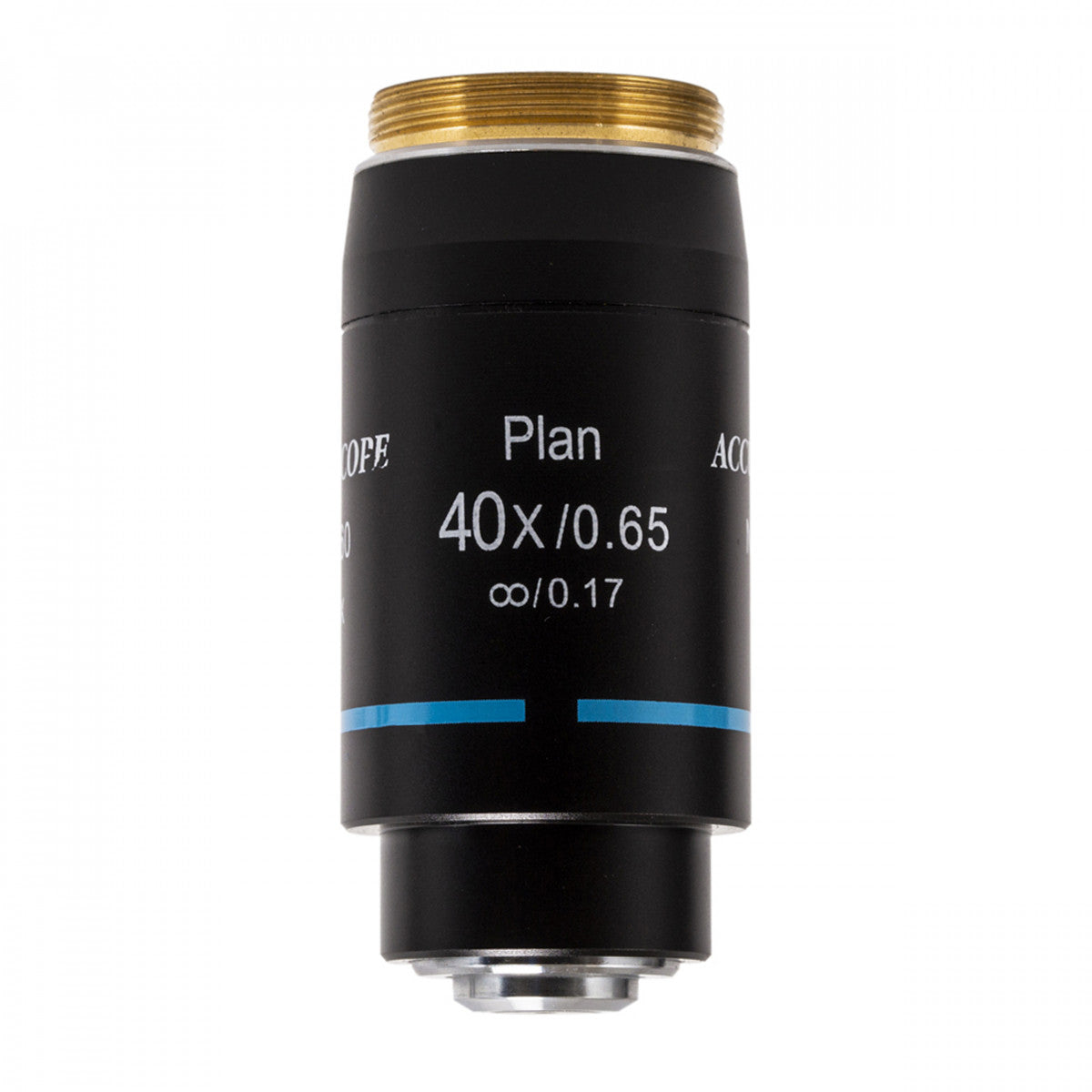

Accu-scope Microscope 40xR NIS Plan achromat objective, N.A. 0.65, W.D. 0.70mm
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
This ACCU-SCOPE 40×R NIS Plan Achromat objective is designed for the EXC-500 microscope series and offers a flat field of view for routine microscopy.
Key Features
- Magnification: 40×R
- Numerical aperture: 0.65
- Working distance: 0.70 mm
- Optical design: Infinity NIS Plan Achromat
- Mounting: M25 thread
- Coverglass: No. 1½
- Designed for: ACCU-SCOPE EXC-500
What Is This Product Used For?
- Routine specimen examination and slide documentation
- Replacing or expanding compatible objective sets
Technical Specifications
| Magnification | 40×R |
|---|---|
| Numerical aperture | 0.65 |
| Working distance | 0.70 mm |
| Optical design | Infinity NIS Plan Achromat |
| Mounting | M25 thread |
| Coverglass | No. 1½ |
| Designed for | ACCU-SCOPE EXC-500 |
Compatibility & Ordering
Designed for EXC-500 microscopes. Original listing also mentions select Nikon E-series and Eclipse models, but parfocality is not guaranteed. Verify optical and mechanical compatibility before ordering.
Manufacturer Resources
ACCU-SCOPE official manufacturer website
Additional Product Details
Specifications
- 40xR NIS Plan Achromat objective
- N.A. 0.65
- Working distance 0.70mm
- Provides a flat field of view
- Infinity corrected
- Corrected for No. 1 ½ coverglass
- Spring-loaded bottom lens to prevent damage to the objective and the specimen
- M25 threads
- Designed for EXC-500 series microscopes
- Compatible with Nikon E200, E400, E600, Ci, 50/55i
- Shipping size 9x7x5 inches
- Shipping weight 1lb
This microscope objective is compatible with Nikon E200, E400, E600, CI, 50i/55i and 80i microscopes. Although it will not be 100% parfocal
