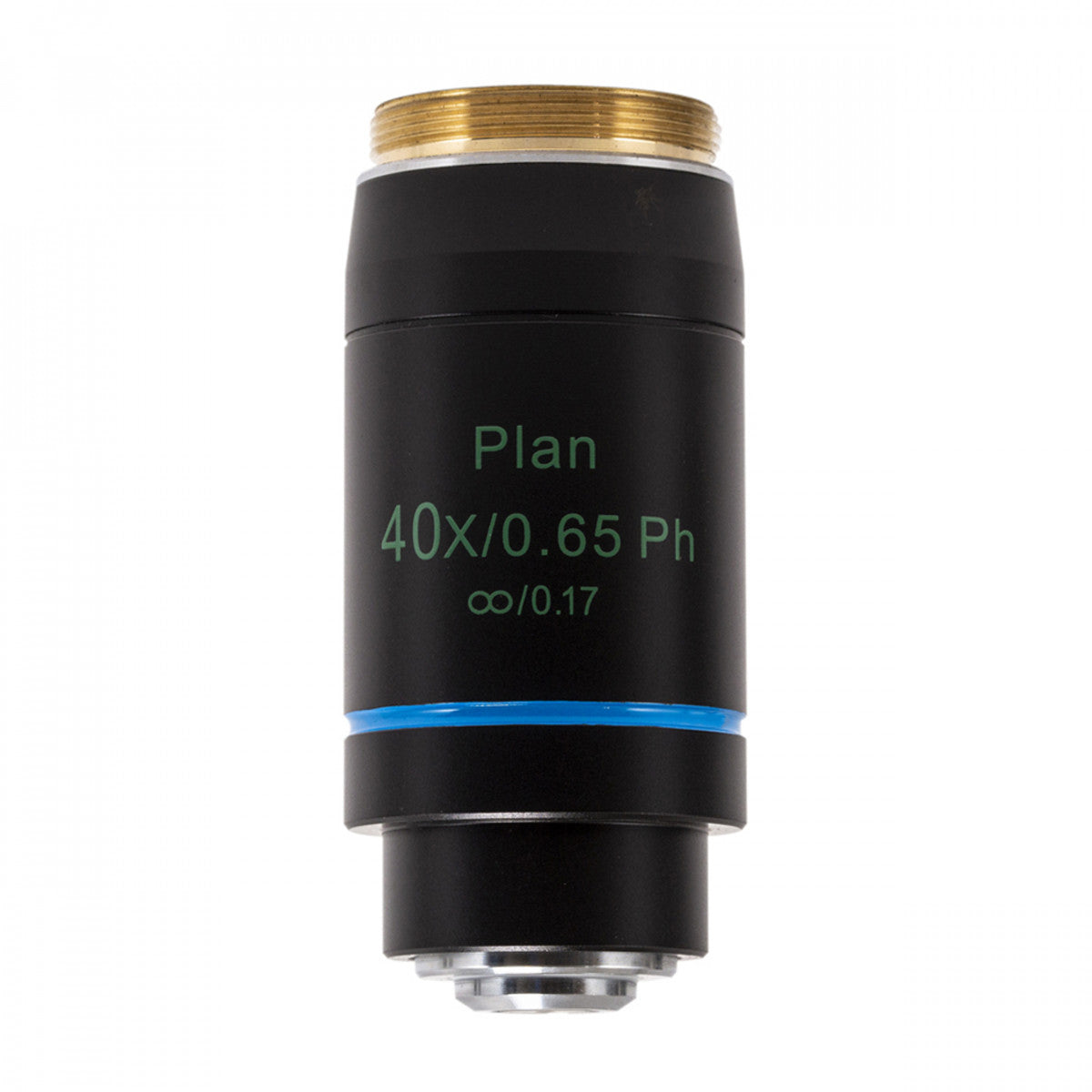

Accu-scope Microscope 40xR NIS Plan phase objective, N.A. 0.65, W.D. 0.70mm
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The ACCU-SCOPE 40×R NIS Plan Phase Objective is designed for phase contrast imaging on compatible exc-500 microscopes.
Key Features
- Infinity-corrected objective designed for the EXC-500 series
- Phase-contrast configuration
- Model-specific specifications and compatibility below
What Is This Product Used For?
Phase contrast imaging on compatible EXC-500 microscopes.
Technical Specifications
| Magnification | 40× |
|---|---|
| Numerical aperture | 0.65 |
| Working distance | 0.70 mm |
| Threads | M25 |
| Designed for | EXC-500 series |
Compatibility & Ordering
Designed for ACCU-SCOPE EXC-500 systems. Do not assume full optical compatibility or parfocality with Nikon microscopes solely from matching threads. Verify the optical system and phase annulus before purchase.
Manufacturer Resources
Additional Product Details
Specifications
- 40xR NIS Plan Phase objective
- N.A. 0.65
- Working distance 0.70mm
- Provides a flat field of view
- Infinity corrected
- Corrected for No. 1 ½ coverglass
- Spring-loaded bottom lens to prevent damage to the objective and the specimen
- M25 threads
- Designed for EXC-500 series microscopes
- Shipping size 9x7x5 inches
- Shipping weight 1lb
This microscope objective is compatible with Nikon E200, E400, E600, CI, 50i/55i and 80i microscopes. Although it will not be 100% parfocal
