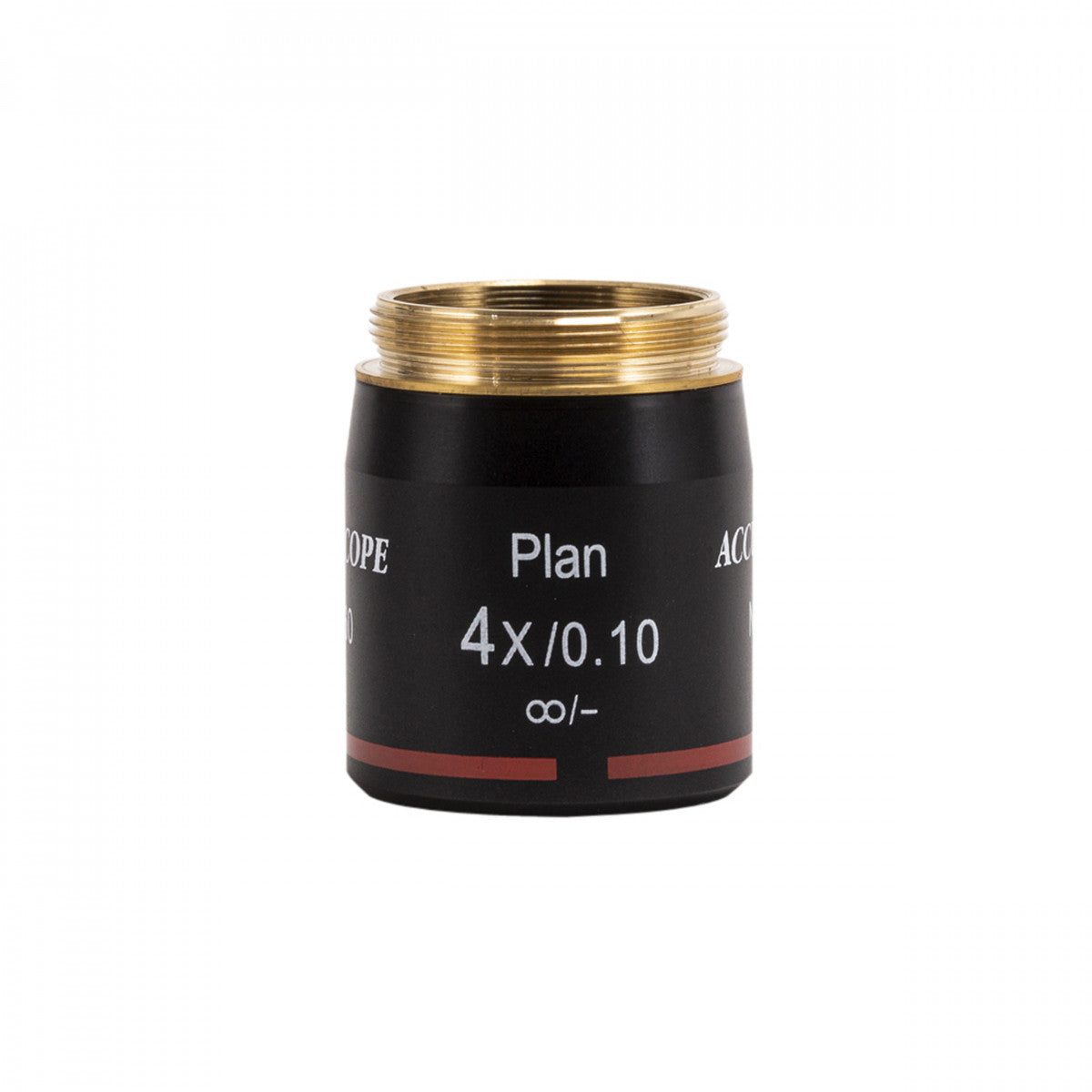

Accu-scope Microscope 4x NIS Plan achromat objective, N.A. 0.10, W.D. 30mm
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
This ACCU-SCOPE 4× NIS plan achromat objective is an infinity-corrected microscope objective designed for the ACCU-SCOPE EXC-500 series, providing a flat field for specimen examination.
Key Features
- Plan achromat optics for a flat field of view
- Infinity-corrected optical design
- Dry objective operation
- Designed for EXC-500 microscopes
What Is This Product Used For?
- Brightfield specimen examination
- Replacement or expansion of compatible objective sets
Technical Specifications
| Magnification | 4× |
|---|---|
| Numerical aperture | 0.10 |
| Working distance | 30 mm |
| Threads | M25 |
| Optical correction | Infinity plan achromat |
| Designed for | EXC-500 series |
Compatibility & Ordering
Verify optical system, objective thread, parfocality and condenser requirements before ordering. Other microscope compatibility mentioned below may not provide exact parfocality.
Manufacturer Resources
ACCU-SCOPE manufacturer resources
Additional Product Details
Specifications
- 4x NIS Plan Achromat objective
- N.A. 0.10
- Working distance 30mm
- Provides a flat field of view
- Infinity corrected
- Corrected for No. 1 ½ coverglass
- M25 threads
- Designed for EXC-500 series microscopes
- Compatible with Nikon E200, E400, E600, Ci, 50/55i
- Shipping size 9x7x5 inches
- Shipping weight 1lb
This microscope objective is compatible with Nikon E200, E400, E600, CI, 50i/55i and 80i microscopes. Although it will not be 100% parfocal
