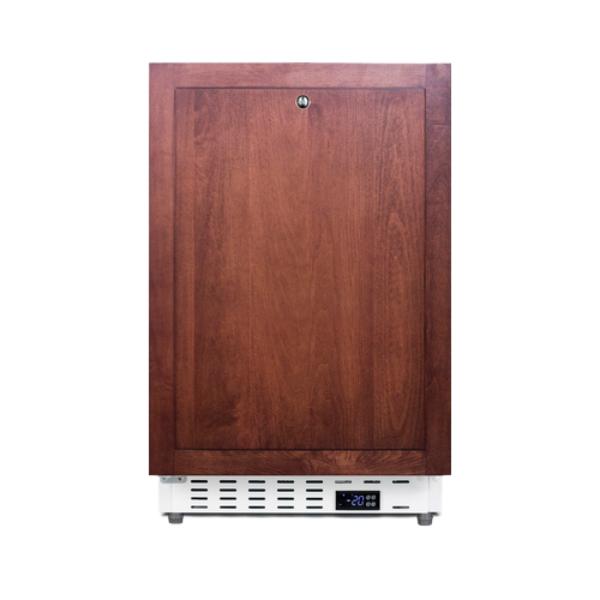

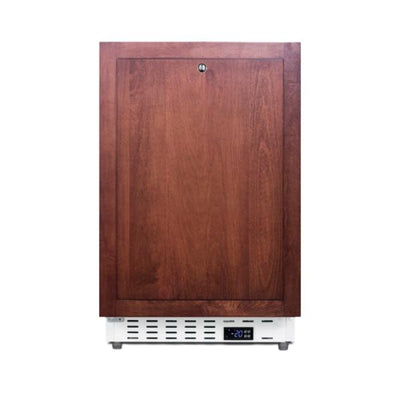

Accucold 20" Wide Built-In Healthcare All-Freezer, ADA Compliant (Panel Not Included) | Model ADA305AFIFLHD
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
Accucold offers a quality selection of 20" wide built-in undercounter all-freezers designed for installation under lower ADA-compliant counters. These freezers have advanced features for safely storing select healthcare materials with strict storage conditions. The ADA305AFIFLHD is sized at 32" high for use in ADA-compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The door is 3" thick for efficient insulation and features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 19 13/16" W x 27 1/8" H). This unit comes with a right angle cord to allow for easier placement without added depth. This unit comes with a left-hand door swing. For a right-hand version, see the ADA305AFIF.
Key Features
- 20" Wide Built-In Healthcare All-Freezer, ADA-Compliant: Slim-fitting all-freezer for general healthcare applications at an ADA-compliant height
- ADA-Compliant Design: 32" height allows easy installation under lower ADA compliant counters
- -25°C Capable: Low temperature operation ideal for vaccines, pharmaceuticals, and other sensitive materials
- Built-In Capable: Front-breathing design lets you make the best use of space by installing your appliance under the counter
- Panel-Ready Door: Integrated stainless steel door frame accepts full overlay panels, allowing you to customize the refrigerator door or blend it into your cabinetry design; panel size:19 13/16" W x 27 1/8" H; customers provide their own handles
- Factory-Installed Lock: Located towards the top of the door for easy access and to provide added security of unit (2 keys included)
- Access Port: Unit comes with a factory installed probe hole for users to connect their own monitoring equipment
- Adjustable Digital Thermostat: Electronic controls located in the front kickplate for easy & institutive temperature management, with a readout in Fahrenheit or Celsius
- Basket Shelves: Three slide-out baskets offer convenient storage, with plastic fronts to help protect contents from warmer air when the door is opened
- Temperature Alarms: User-set high/low temperature alarms provide added security if temperature goes beyond setpoint
- Open Door Alarm: Audible alarm will sound if the door is left ajar for over a minute
- Flat Door Liner: Interior design conforms to CDC guidelines to ensure stable conditions for sensitive materials
- Manual Defrost: More temperature stability with an energy efficient manual defrost system
- No Internal Fans: Temperature remains more stable with a static cooling system
Technical Specifications
| Manufacturer | Accucold |
|---|---|
| Model | ADA305AFIFLHD |
| Nominal Height | 32.0" (81 cm) |
| Height of Cabinet | 31.75" (81 cm) |
| Height to Hinge Cap | 32.0" (81 cm) |
| Nominal Width | 21.0" (53 cm) |
| Width | 20.25" (51 cm) |
| Nominal Depth | 23.0" (58 cm) |
| Depth | 23.0" (58 cm) |
| Depth with door at 90° | 40.25" (102 cm) |
| Capacity | 2.47 cu.ft. (70 L) |
| Defrost Type | Manual |
| Door | Panel-Ready |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Amps | 1.1 |
| Voltage/Frequency | 115 V AC/60 Hz |
| Weight | 75.0 lbs. (34 kg) |
| Parts & Labor Warranty | 1 Year |
| Compressor Warranty | 5 Years |
| UPC | 761101151335 |
| Door Swing | LHD |
| Reversible | Factory Reversible |
| Interior Height | 23.75" (60 cm) |
| Interior Width | 14.5" (37 cm) |
| Interior Depth | 17.0" (43 cm) |
| Shelf Type | Drawers |
| Shelf Qty | 3 |
| Thermostat Type | Digital |
| Fan Type | Exterior |
| Refrigerant Type | R600a |
| Refrigerant Amount | 1.34 oz. |
| High Side PSI | 180.0 |
| Low Side PSI | 80.0 |
| Level Legs | 2 |
| Interior Drawers | Yes |
| Drawers Qty | 3 |
| Compressor Step Height | 5.75" (15 cm) |
| Compressor Step Width | 14.5" (37 cm) |
| Compressor Step Depth | 6.0" (15 cm) |
| Temperature Range | -25° to -15°C |
