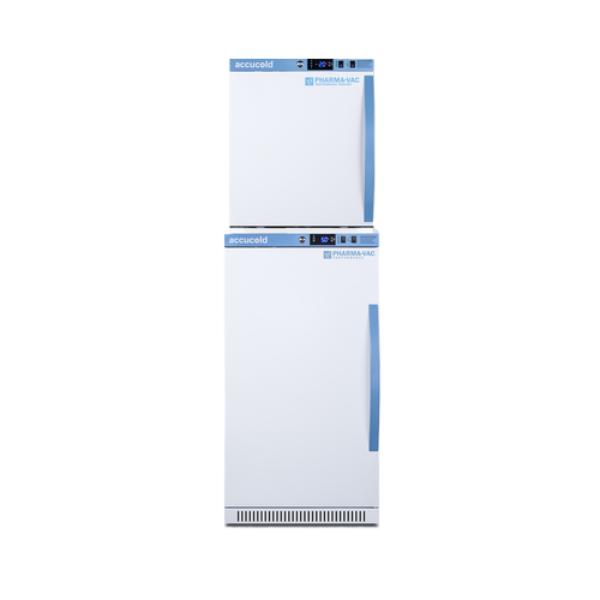

Accucold 20" Wide Performance Series All-Refrigerator/All-Freezer | Model ARS32PVBIADA-AFZ1PVSTACKLHD
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
Accucold offers innovative solutions to vaccine storage with our Performance Series stackable purpose-built refrigerator-freezer combinations designed to support meeting CDC/VFC/VFA guidelines. Sized just under 20" wide, the ARS32PVBIADA-AFZ1PVSTACKLHD combines the 2.83 cu.ft. ARS32PVBIADA auto defrost all-refrigerator with the 1.4 cu.ft. AFZ1PV all-freezer into one slim footprint using Accucold's StackRack. This ships in three boxes and requires some minor assembly upon delivery.
Key Features
- Purpose-built design: Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
- +/-1ºC Variation: The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
- Space-saving design: Allows you to create a full refrigerator-freezer with independent controls in a slim-fitting footprint
- Easy assembly: Unit ships in three boxes for customer to install the StackRack on the bottom refrigerator/freezer and place and secure the other unit on top
- Antimicrobial silver ion-coated handles: Powder-coated handles with naturally occurring silver ions to help reduce the spread of germs
- Adjustable temperature: Intuitive controls let you adjust the interior temperature between +2 to +8ºC (refrigerator) and -30º to -10ºC (freezer)
- Temperature alarms: Visual and audible alarms alert if the interior temperature rises or falls out of set range
- Remote alarm contacts: Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
- Automatic defrost with adjustable cycle defrost (refrigerator): Adjustable cycle defrost operation ensures the unit avoid temperature spikes and ice buildup
- Manual defrost (freezer): Static cooling system for reduced temperature fluctuations
- Access ports: Both units include a pre-installed probe hole to allow easier connection to user-provided monitoring equipment
- Open door alarms: Alarms will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
- Audible power failure alarms: Battery-powered alarms sound if the power connection is interrupted
- Sensor failure alarms: Audible and visual alarms warn if the sensor is disrupted
Technical Specifications
| Manufacturer | Accucold |
|---|---|
| Model | ARS32PVBIADA-AFZ1PVSTACKLHD |
| Nominal Height | 51.0" (130 cm) |
| Height of Cabinet | 50.5" (128 cm) |
| Nominal Width | 20.0" (51 cm) |
| Width | 19.75" (50 cm) |
| Nominal Depth | 24.0" (61 cm) |
| Depth | 23.25" (59 cm) |
| Capacity | 4.23 cu.ft. (120 L) |
| Door | White |
| Cabinet | White |
| US Electrical Safety | ETL |
| Canadian Electrical Safety | ETL-C |
| Voltage/Frequency | 115 V AC/60 Hz |
| Parts & Labor Warranty | 2 Years |
| Compressor Warranty | 5 Years |
| UPC | 761101145952 |
| Door Swing | LHD |
| Adjustable Shelves | Yes |
| Interior Light | Yes |
| Refrigerator - Interior Height | 24.0" (61 cm) |
| Refrigerator - Interior Width | 16.0" (41 cm) |
| Refrigerator - Interior Depth | 15.0" (38 cm) |
| Refrigerator - Capacity | 2.83 cu.ft |
| Refrigerator - Shelf Type | Wire |
| Refrigerator - Shelf Qty | 4 |
| Refrigerator - Temperature Range | 2 to 8ºC |
| Refrigerator - Refrigerant Type | R600a |
| Refrigerator - Refrigerant Amount | 1.41 oz. |
| Freezer - Interior Height | 16.5" (42 cm) |
| Freezer - Interior Width | 15.25" (39 cm) |
| Freezer - Interior Depth | 15.75" (40 cm) |
| Freezer - Capacity | 1.4 cu.ft |
| Freezer - Shelf Type | Wire |
| Freezer - Shelf Qty | 2 |
| Thermostat Type | Digital |
| Fan Type | Interior |
| Freezer - Temperature Range | -30 to -10ºC |
| Freezer - Refrigerant Type | R290a |
| Freezer - Refrigerant Amount | 0.85 oz. |
