Product Overview

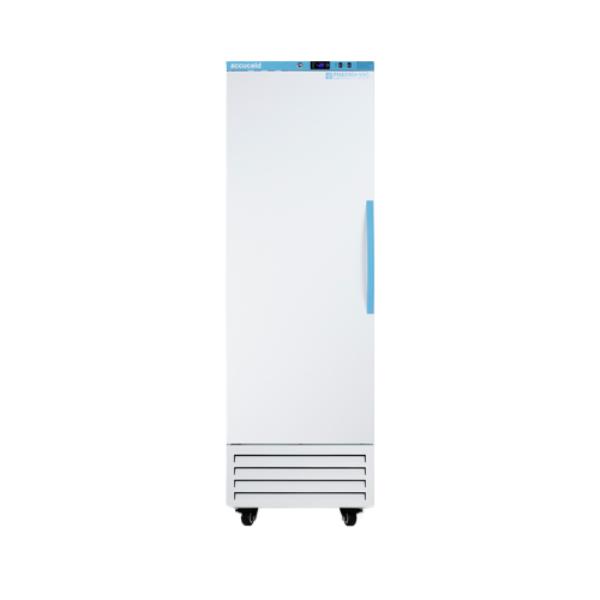

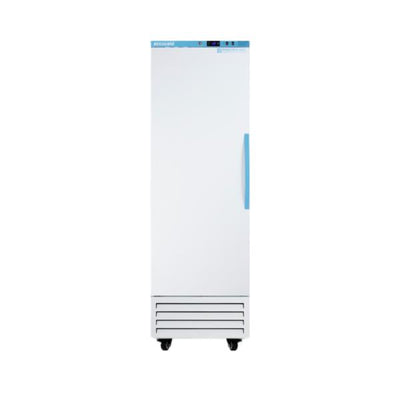

Accucold's Pharma-Vac Performance Series upright freezers are designed and purpose-built for pharmacy, medication, and vaccine applications, supporting compliance with CDC/VFC/VFA guidelines. The AFS14PVLHD is an upright frost-free all-freezer with a temperature range of -30°C to -10°C as recommended for various vaccines and pharmaceuticals. The microprocessor temperature controller is externally located to minimize door openings, helping to protect stored contents from ambient temperature. The buffered temperature probe is encased in a glycol-filled bottle to better simulate the temperature of the stored product, with an additional sensor that reads air temperature to ensure superior temperature control. The current and min/max temperature display is viewable in Celsius or Fahrenheit . The audible and visual temperature alarm sounds if the unit's interior goes out of range. Additional alarms include a power failure alert, door open alarm, and sensor failure alarm. This model is equipped with remote alarm contacts in the rear and a 1/2" probe port on the right side to accept additional monitoring devices. A hospital-grade cord with a 'green dot' plug is also included for added safety in high-traffic areas.

Key Features

• 24" Wide Upright All-Freezer: 24" Wide upright Performance Series vaccine all-freezer designed for healthcare settings
• Performance Series freezer: Purpose-built all-freezer for vaccine storage in medical, pharmaceutical, and life science applications
• Purpose-built design: Designed and purpose-built for pharmacy, medication, and vaccine applications to support meeting CDC/VFC/VFA guidelines
• Spacious capacity: Over 9.5 cu.ft. of storage inside
• Frost-free operation: No-frost operation for minimal user maintenance
• +/-1ºC Variation: The published temperature variation is derived from the maximum deviation of an NTC sensor in a 1 oz. vial located nearest the chamber geometric center during a 24 hour test period
• Microprocessor control panel: Digital controls with a large LED readout in Celsius or Fahrenheit for intuitive temperature management
• Adjustable temperature: Intuitive controls let you adjust the interior temperature between -30°C to -10ºC
• High/low temperature alarm: Visual and audible alarms alert if the interior temperature rises or falls out of set range
• Remote alarm contacts: Electronic controller is equipped with a volt-free contact for alarm forwarding to an external remote system (contacts located in the external rear of the unit)
• Buffered temperature probe: Thermometer probe is encased in a glass bead-filled bottle to better simulate temperature readings closest to stored contents
• Open door alarm: Alarm will sound if the door is left ajar for over 4 minutes (adjustable from 1-99 minutes)
• Audible power failure alarm: Battery-powered alarm sounds if the power connection is interrupted
• Sensor failure alarm: Audible and visual alarm warns if the sensor is disrupted

Technical Specifications

Download Product Brochure
