Home » BEING BOF-400T Forced-Air Drying Oven – 400 L (14.1 cu ft) Laboratory Oven
Being

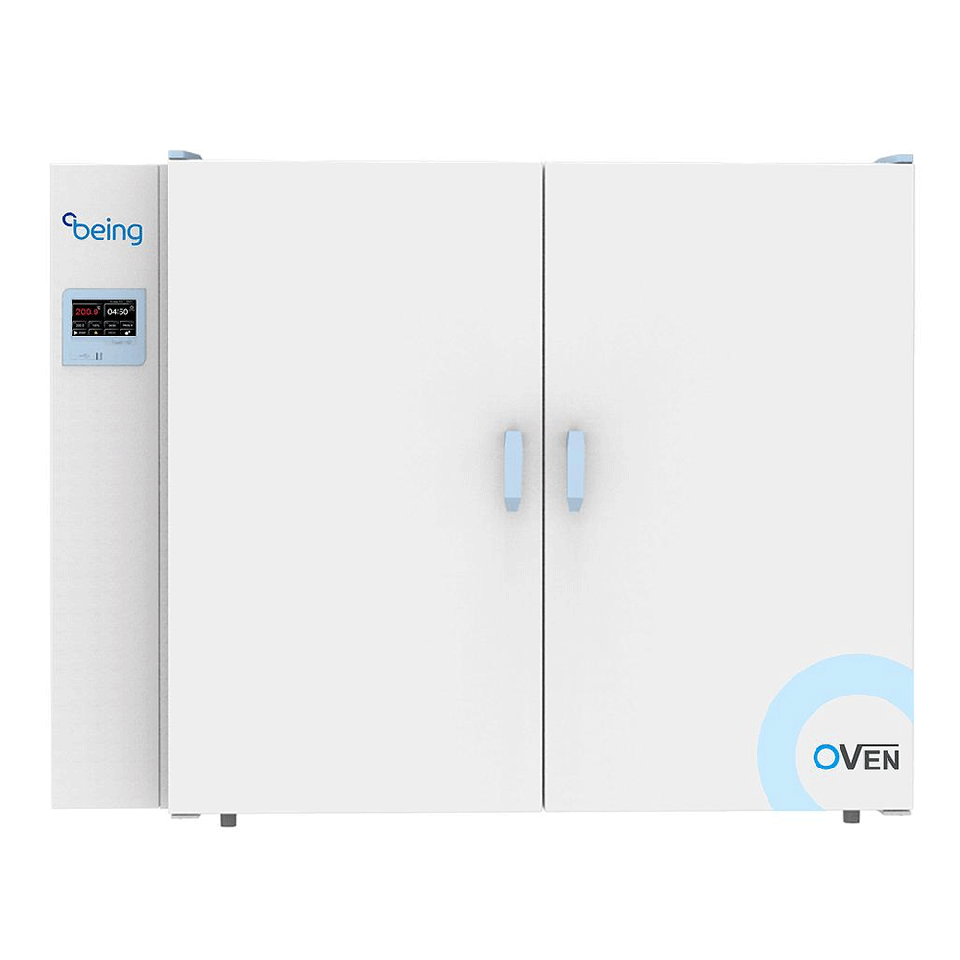

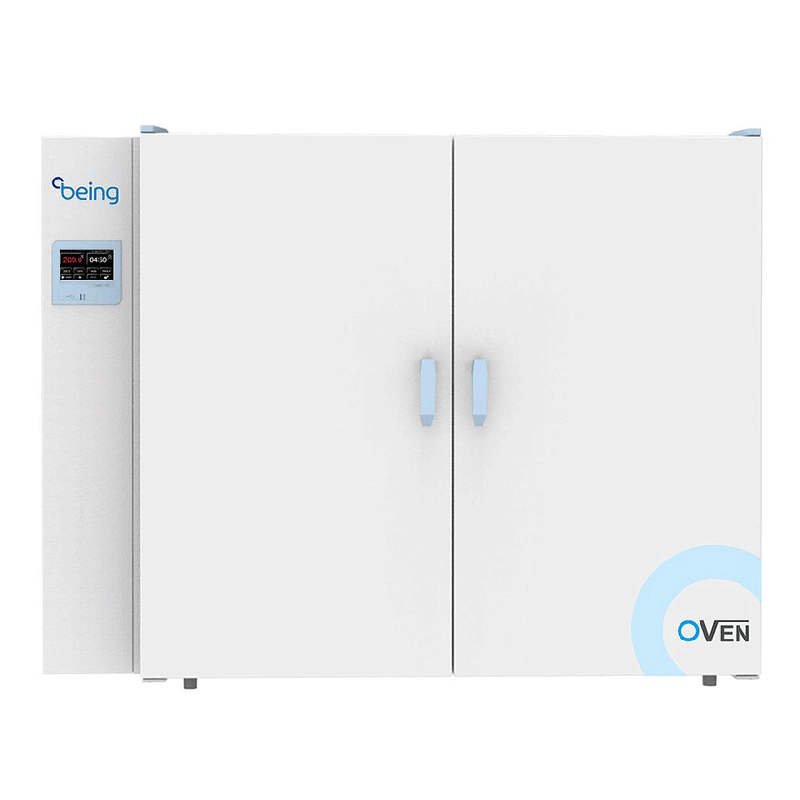

BEING BOF-400T Forced-Air Drying Oven – 400 L (14.1 cu ft) Laboratory Oven

$4,681.80
Sale $4,995.00 $4,681.80
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

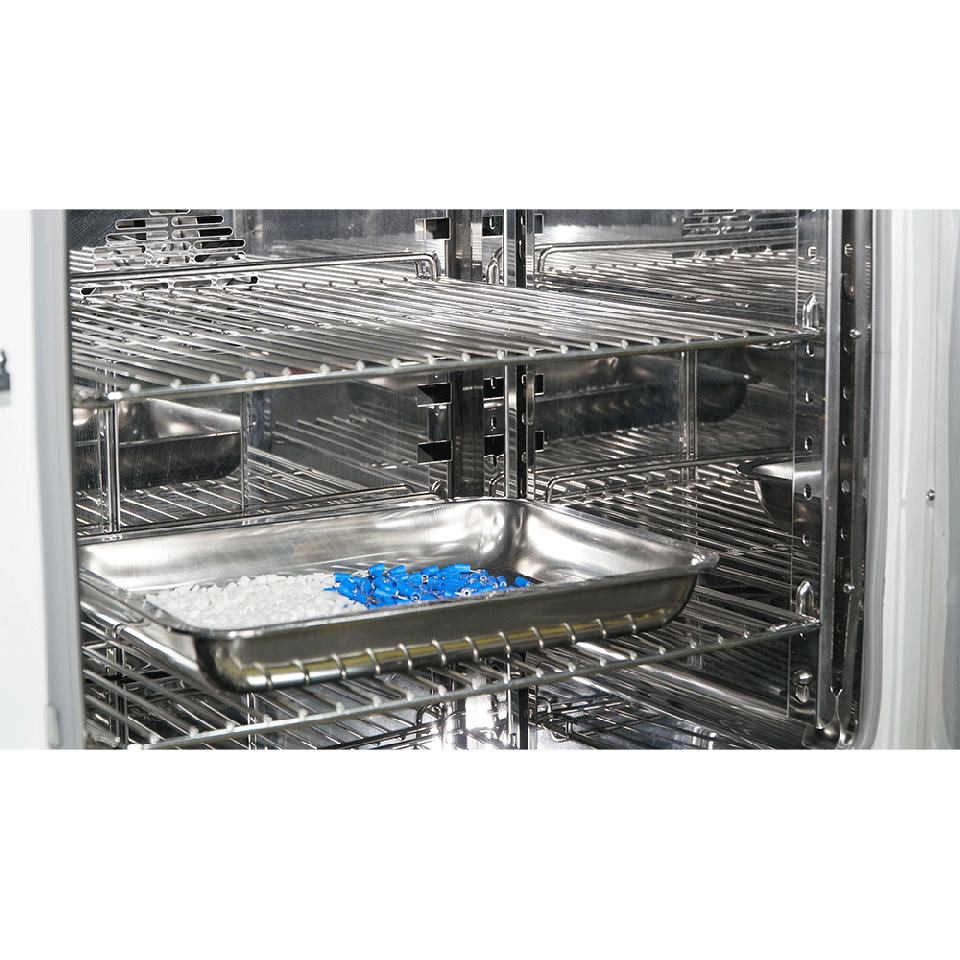

BEING BOF-400T Forced-Air Drying Oven, 400 L (14.1 cu ft) chamber capacity — designed for large-volume drying, sterilization, curing, sample preparation, or batch processing. Utilizes fan-driven mechanical convection to ensure uniform, stable heat circulation throughout the chamber. Temperature range from ambient +10 °C up to 300 °C, controlled by a PID touchscreen controller for accurate, repeatable performance. The interior chamber is corrosion-resistant stainless steel with rounded inner corners for easy cleaning and durability. Includes 3 adjustable stainless-steel shelves (expandable up to 16), each shelf supporting up to 20 kg. Chamber and controls tested — heating, fan operation, temperature control, and safety systems all functional. Oven features airtight door seal, silicone gasket, and adjustable exhaust vent for ventilation control.

Specifications

Spec Value
Chamber Volume 400 L (14.1 cu ft)
Temperature Range Ambient +10 °C to 300 °C (Ambient +18 °F to 572 °F)
Temperature Stability ±0.5 °C
Temperature Uniformity (at 100 °C) ±3.5 °C
Heating Rate to 100 °C ~40 minutes
Standard Shelves (Incl.) / Max Shelves 3 / up to 16 shelves
Max Load per Shelf 20 kg (≈ 44.1 lb)
Internal Dimensions (WxHxD) 1000 × 800 × 500 mm (39.3″ × 31.4″ × 19.6″)
External Dimensions (WxHxD) 1285 × 1060 × 750 mm (50.6″ × 41.7″ × 29.6″)
Power Consumption / Electrical Requirement 3200 W, 220–240 V AC, 50/60 Hz, 1-phase
Net Weight ~210 kg (≈ 463 lb)

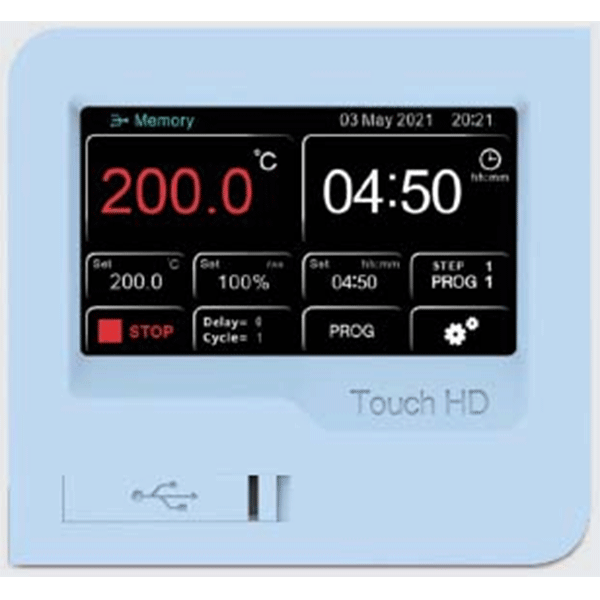

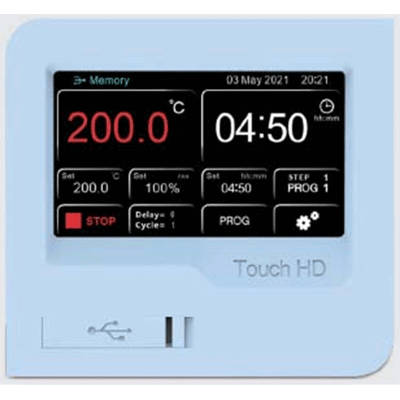

Controller & Timer Digital PID touchscreen; timer 00:01 – 99:59 (hh:mm)
Convection Type Mechanical (forced-air) fan convection for even heat distribution



Features

  • Forced-air mechanical convection — ensures rapid, uniform heat distribution and consistent temperature throughout chamber for reliable drying, curing, sterilization, or batch processing.

  • Large 400 L capacity — suitable for large sample loads, bulk glassware, or high-throughput batch processing.

  • Adjustable shelving — up to 16 shelves for flexible arrangement of labware or samples; each shelf rated to 20 kg.

  • Precision PID temperature control with touchscreen interface — accurate temperature settings and stable maintenance over long runs.

  • Temperature stability ±0.5 °C and uniformity ±3.5 °C at 100 °C — ensures reproducible results and uniform processing.

  • Stainless-steel chamber with sealed door and silicone gasket — durable, easy to clean, and thermally insulated to maintain stable internal temperature.

  • Safety & alarm features — over-temperature protection, temperature deviation alarm, over-current protection, and auto-restart after power loss to safeguard samples and equipment.

  • Adjustable exhaust/vent port — allows control over airflow and humidity during processes that require venting.

  • Wide application range — ideal for drying, sterilization, curing, heat treatment, glassware drying, batch sample prep, and industrial lab use.
