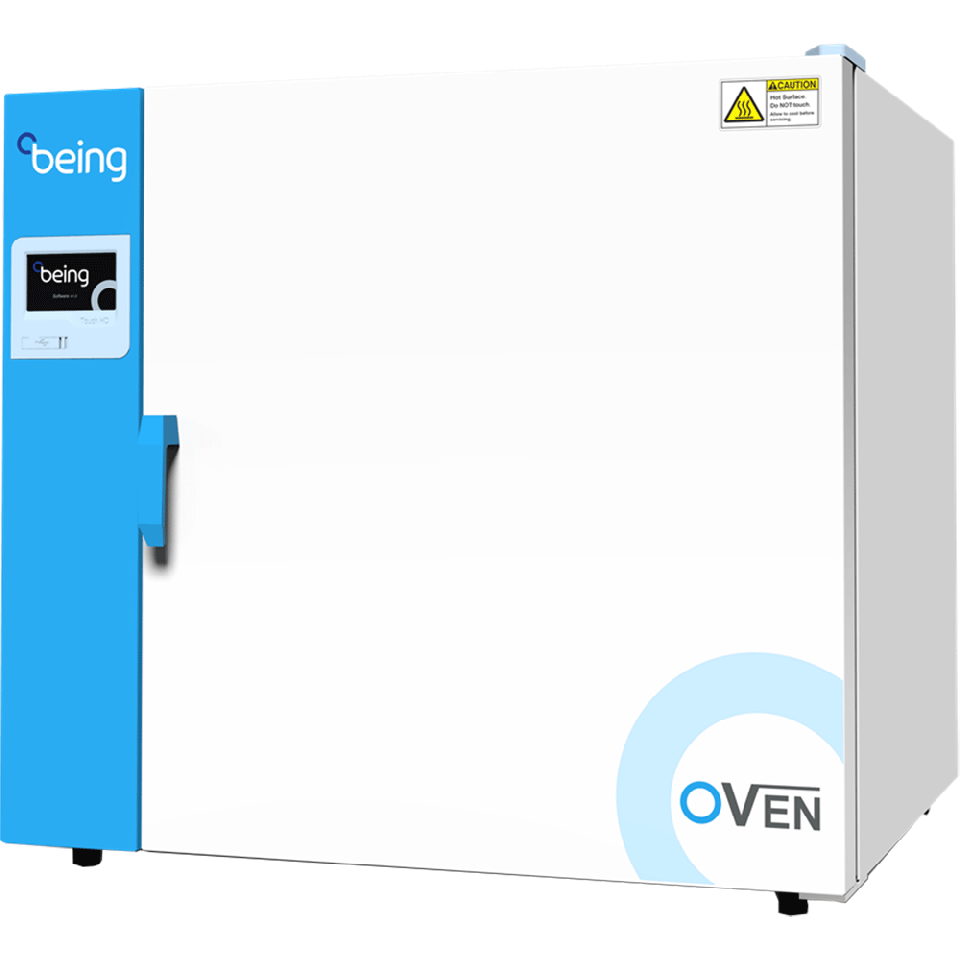

BEING BON-115T Natural Convection Oven, 115 L chamber capacity. Designed for drying, sterilization, curing, and sample preparation with consistent, uniform natural-convection heating. The interior chamber is built with corrosion-resistant, mirror-finished stainless steel for durability and easy cleaning. The digital PID controller with a touchscreen display supports programmable heating cycles; chamber temperature range runs from ambient +10 °C (or ambient +18 °F) up to 280–300 °C. Double-door seal and precise temperature control ensure stable and safe operation. Includes 2 shelves standard (expandable up to 10), each shelf supporting up to 20 kg. The unit has been tested; heating and temperature control function normally.

Specifications

• Chamber Volume: 115 L (4.1 cu ft)

• Temperature Range: Ambient +10 °C to 300 °C (Ambient +18 °F to 572 °F)

• Temperature Uniformity (at 100 °C): ± 3.0 °C

• Temperature Stability: ± 0.5 °C (steady-state)

• Chamber Material: 304 stainless steel, mirror-polished

• Shelves: 2 included (expandable up to 10); Max load per shelf 20 kg

• Internal Dimensions (W × H × D): 520 × 495 × 450 mm (≈ 20.5″ × 19.4″ × 17.7″)

• External Dimensions (W × H × D): 785 × 745 × 590 mm (approximate)

• Power Consumption: 1800 W (120 V / 60 Hz model)

• Timer: 1–5999 minutes programmable

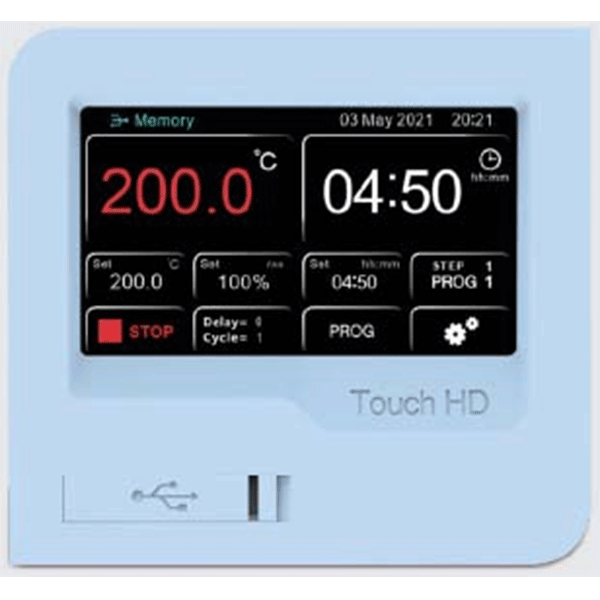

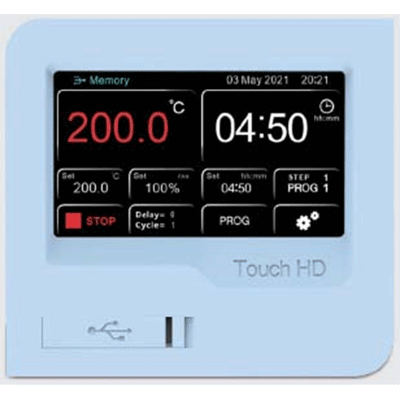

• Controller: Digital PID with touchscreen, USB data port, PT100 sensor

Features

• Natural convection heating — gentle, uniform airflow suitable for powders, glassware, heat-sensitive samples.

• Corrosion-resistant stainless steel interior with mirror polish and rounded corners — easy to clean and maintain.

• Programmable digital PID controller — allows custom heating cycles (time + temperature), with precise control and stable performance.

• Adjustable shelving — standard 2 shelves, expandable up to 10; each shelf supports up to 20 kg, giving flexibility in sample volume and types.

• Safety features — tight door seal gasket, over-temperature alarm and independent over-temperature limit controller, over-current protection and auto-start after power loss.

• Uniform temperature distribution and good stability — suitable for sensitive drying, sterilization, curing, or sample preparation workflows.

• Large capacity — 115 L chamber allows handling of multiple glassware, sample batches or larger items.
