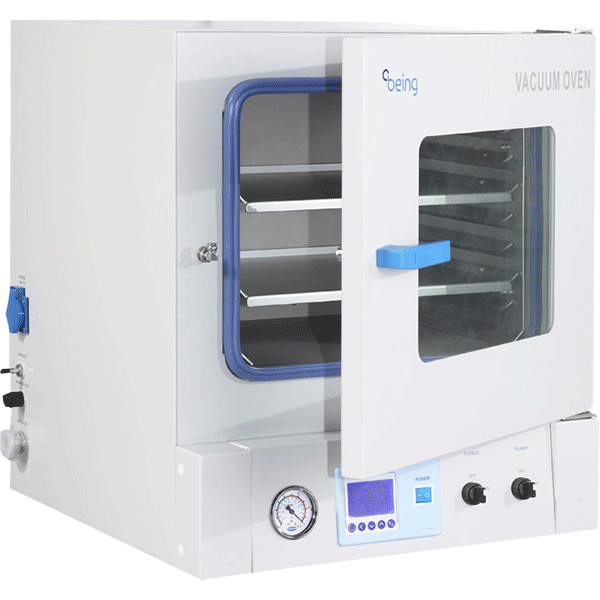

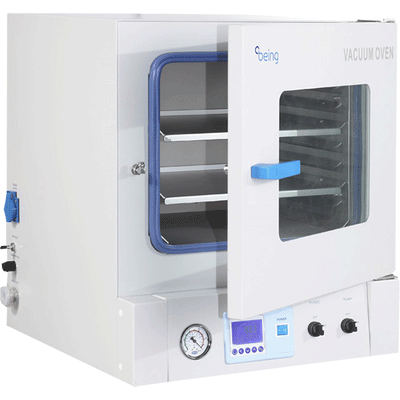

BEING BOV-20 Vacuum Oven – 24 L (0.9 cu ft) Laboratory Vacuum Drying Oven
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
BEING BOV-20 Vacuum Oven, 24 L (0.9 cu ft) chamber capacity. Built-in vacuum interface required (external vacuum pump sold separately). Temperature range from ambient +10 °C to 200 °C. Heating via 4-sided jacket heating ensures uniform temperature distribution. Chamber interior is corrosion-resistant stainless steel. Includes 2 adjustable shelves (expandable up to 5), each shelf supports up to 20 kg. Max vacuum level 133 Pa — ideal for gentle drying, outgassing, or processing heat-sensitive or oxidizable materials under reduced pressure. Equipped with PID temperature controller, silicone-sealed tempered-glass door for safe observation, inert-gas interface for optional inert-atmosphere drying, and full safety system (over-temperature limit, vacuum controls, alarms). Oven tested and verified — vacuum sealing, heating, door gasket, controls functioning properly.
Specifications
| Spec | Value |
|---|---|
| Chamber Volume | 24 L (0.9 cu ft) |
| Temperature Range | Ambient +10 °C to 200 °C (Ambient +18 °F to 392 °F) |
| Temperature Stability | ±0.5 °C |
| Temperature Uniformity (@100 °C) | ±1 °C (shelf) |
| Vacuum Range | Down to 133 Pa (max vacuum) |
| Shelves (Standard / Max) | 2 included / up to 5 total |
| Max Load per Shelf | 20 kg (≈ 44.1 lbs) |
| Internal Dimensions (W×H×D) | 11.8″ × 10.8″ × 11.8″ (300 × 275 × 300 mm) |
| External Dimensions (W×H×D) | 17.5″ × 24.4″ × 22.8″ (445 × 620 × 580 mm) |
| Power / Electrical | 110 V, 700 W (some spec pages show 960 W) |
| Controller / Timer | PID controller; digital timer 1–5999 min / 00:01–99:59 |
| Chamber Material | Sandblasted / corrosion-resistant stainless steel |
| Door & Window | Tempered glass (inner), Plexiglass (outer), silicone door seal, observation window for safe viewing |
Features
-
Vacuum drying environment — lowers boiling point, ideal for heat-sensitive, oxidizable, or easily decomposed materials.
-
4-sided jacket heating — ensures even temperature distribution and improved uniformity through chamber.
-
PID temperature controller + timer — accurate temperature control with timer for consistent drying cycles.
-
Corrosion-resistant stainless steel chamber — durable, easy to clean, long-lasting.
-
Observation window and tight silicone-sealed door — allows monitoring without breaking vacuum or temperature, adds safety and convenience.
-
Inert-gas interface + solenoid valve — allows purging or inert-gas filling, suitable for sensitive drying or processing under controlled atmosphere.
-
Shelf capacity 20 kg with adjustable shelves (up to 5) — flexible for various sample types or batch sizes.
-
Safety protections: over-temperature limit controller, vacuum controls, alarms — reduces risk of overheating or vacuum failure.
-
Compact and benchtop-sized (0.9 cu ft) — suitable for small labs or sample-scale vacuum drying without large footprint.
