Home » BEING BOV-90 Vacuum Oven – 91 L (3.2 cu ft) Laboratory Vacuum Drying Oven
Being

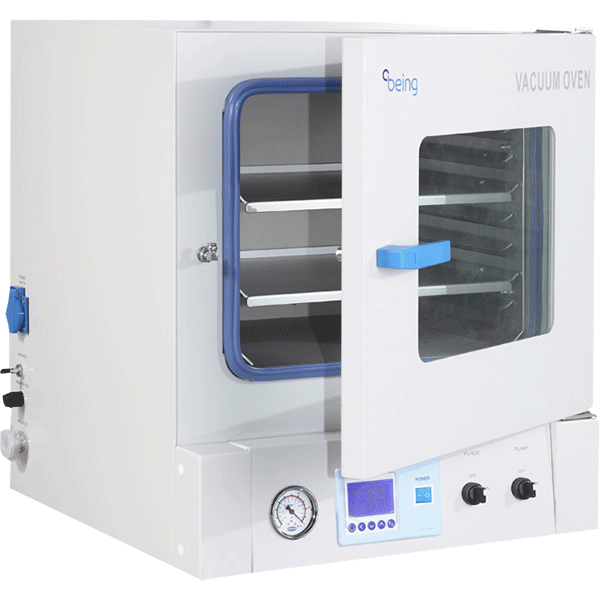

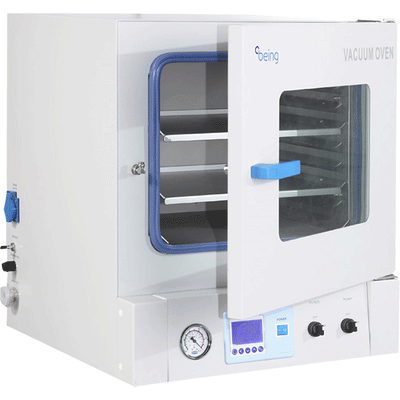

BEING BOV-90 Vacuum Oven – 91 L (3.2 cu ft) Laboratory Vacuum Drying Oven

$4,655.45
Sale $5,555.45 $4,655.45
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

BEING BOV-90 Vacuum Oven, 91 L (3.2 cu ft) chamber capacity — ideal for vacuum drying, outgassing, curing, or processing heat-sensitive or oxidation-prone samples under reduced pressure. Temperature range from ambient +10 °C up to 200 °C, controlled by a PID temperature controller with high resolution (0.1 °C). The interior chamber is made from corrosion-resistant stainless steel with mirror finish and includes a toughened glass door for safe observation of samples. Equipped with a solenoid-valve vacuum interface and inert-gas inlet for controlled-atmosphere drying or inert-gas purging. Comes with 3 adjustable shelves (expandable up to 9), each shelf rated for up to 20 kg load. Oven tested and verified — vacuum seal, heater, controls, and safety features are fully functional.

Specifications

Spec Value
Chamber Capacity 91 L (3.2 cu ft / 91 L)
Temperature Range Ambient +10 °C to 200 °C
Temperature Stability ±0.5 °C
Uniformity at 100 °C ±1 °C on shelf
Vacuum Range (Max) Down to 133 Pa (0–0.1 MPa)
Heating Type 4-sided jacket heating (uniform heat distribution)
Standard / Max Shelves 3 included / up to 9 shelves max
Shelf Load Capacity 20 kg per shelf
Interior Dimensions 450 × 450 × 450 mm (17.7″ × 17.7″ × 17.7″)
External Dimensions 610 × 810 × 805 mm (24.0″ × 31.8″ × 31.6″)
Power / Electrical 2000 W, 220 V (or 240 V depending on region)
Extras Inert-gas inlet, LED interior light, vacuum port (KF-25), solenoid valve for vacuum control, casters for mobility



Features

  • Vacuum-environment drying — ideal for heat-sensitive, oxidization-prone, or moisture-laden materials, by lowering boiling/evaporation points.

  • Uniform heat distribution via 4-sided jacket heating — ensures even temperature inside chamber for reproducible results.

  • Precise PID controller with 0.1 °C resolution and stable temperature ±0.5 °C — good for delicate processes needing accurate control.

  • Vacuum down to 133 Pa and controlled atmosphere option (inert-gas inlet) — useful for chemical, pharmaceutical, material drying, outgassing, polymer curing, or electronics sample prep under inert atmosphere.

  • Toughened glass door and LED interior lighting — lets you safely view contents without breaking vacuum or opening the chamber.

  • Adjustable shelving (up to 9) with 20 kg per shelf load — flexible configuration for varied sample sizes or batch loads.

  • Mobility — unit comes with casters, making relocation easier for lab settings.
