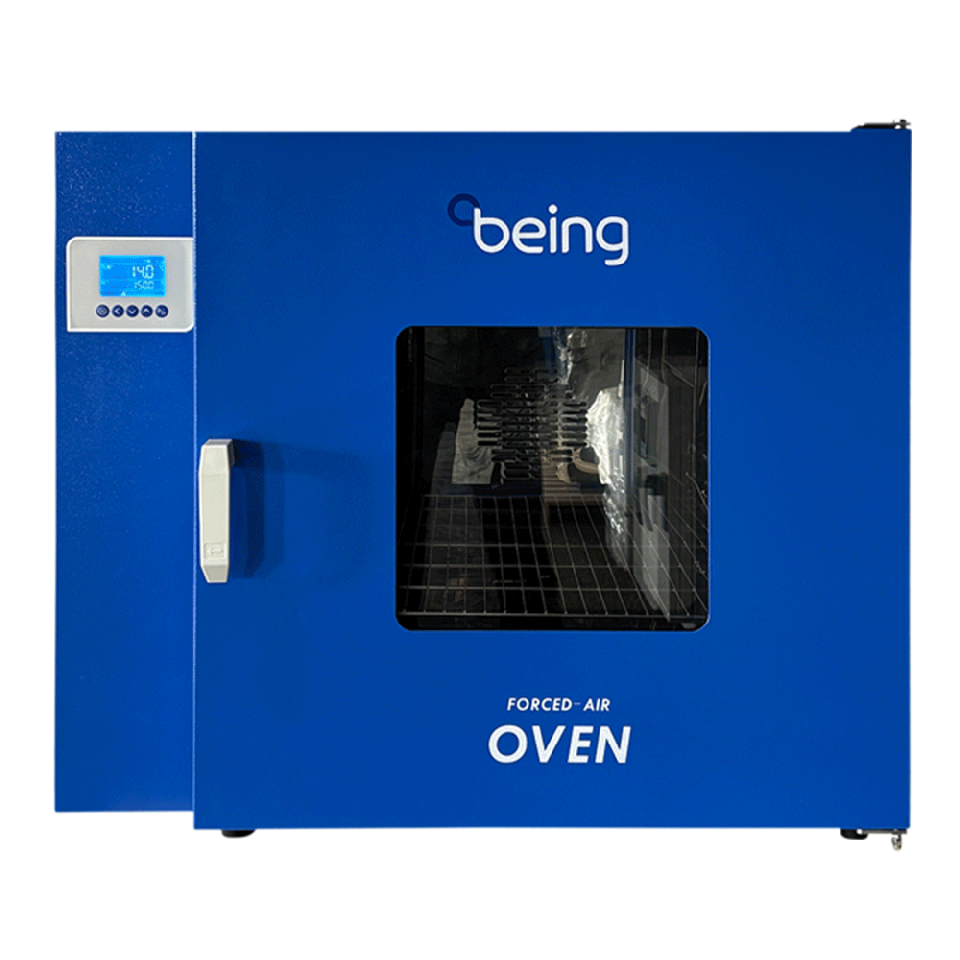

BEING EOF‑140 forced‑air convection oven with ~140 L (4.8 cubic feet) chamber — ideal for lab drying, sterilization, curing, or general heating tasks. Equipped with an integrated fan for forced‑air circulation to ensure uniform heat distribution and consistent temperature throughout the chamber. Inner chamber made from corrosion‑resistant stainless steel with airtight sealed door for efficient heat retention. Includes 2 adjustable wire shelves (expandable) to offer flexible loading configurations. Controlled by a digital PID temperature controller with LCD display, providing stable and precise temperature regulation. Oven tested — fan, heating element, PID controller, and door seal confirmed functional; suitable for lab work, sample drying, material conditioning, sterilization, and small-to-medium batch processing.

Specifications

• Chamber Volume: 4.8 cu ft (≈ 140 L)

• Convection Type: Forced‑air (fan‑driven) circulation

• Heating Element / Power: 2,150 W, 120 V (for the 120 V version)

• Number of Shelves (Included): 2 wire shelves

• Max Shelves: Up to 11 shelves (depending on configuration)

• Shelf Load Capacity: 33 lb (~15 kg) per shelf (as per 120 V version spec)

• Temperature Range (Typical for EOF Series): Ambient + ~10 °C up to ~250 °C–300 °C (depending on variant)

• Temperature Uniformity: ±2.5 °C at 150 °C (for 120 V/4.8 cu ft variant)

• Temperature Accuracy / Stability: ±0.5 °C via PID controller

• Preheat Time to 150 °C: Approx. 40 min (for 4.8 cu ft version)

• Timer Range / Control: PID digital controller with timer up to 5,999 minutes (or continuous)

• Interior Material: Stainless steel, corrosion‑resistant, easy‑clean finish

Features & Benefits

• Forced‑air convection with integrated fan — ensures even, uniform heat distribution and stable internal temperature throughout chamber, supporting faster drying, curing or sterilization.

• Digital PID temperature control — offers precise and stable temperature regulation with fine resolution and stability (±0.5 °C), suitable for lab protocols requiring accuracy.

• Stainless‑steel chamber — durable, corrosion-resistant interior that’s easy to clean and suitable for repeated lab use.

• Adjustable shelving (2 included, expandable up to 11) — flexible layout supports different sample sizes or multiple batches simultaneously.

• Compact 4.8 cu ft / 140 L capacity — offers a balance between capacity and footprint; appropriate for small-to-medium labs, sample prep, research workflows, sterilization, drying, curing.

• Safety & convenience features — airtight sealed door reduces heat loss, provides efficient heating; PID control and over‑temperature protection ensure safe operation.
