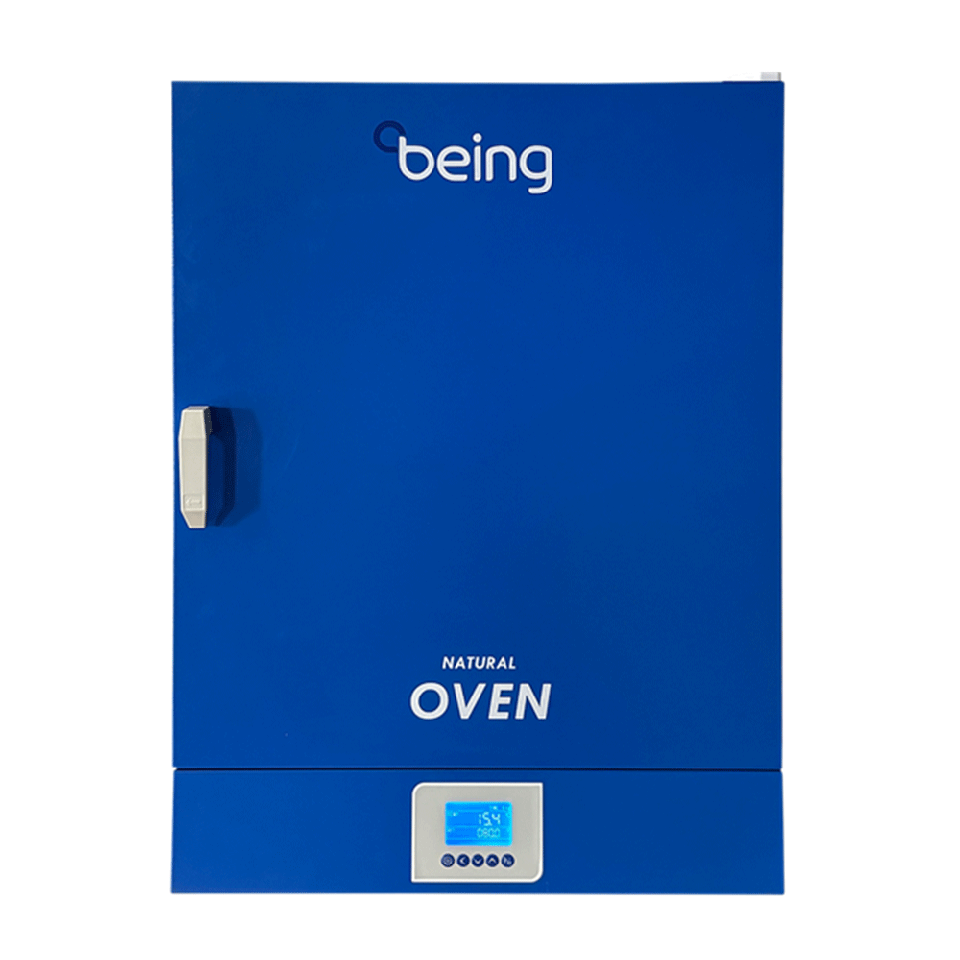

BEING EON-50 drying oven with 56 L (2.0 cu ft) chamber capacity. Convection-type heating (forced-air with fan) for even, uniform heat distribution — suitable for drying, sterilization, curing, or general lab heating tasks. Controlled by a PID controller with easy-to-read LCD display, allowing stable temperature regulation and accurate control. Chamber interior made of corrosion-resistant stainless steel. Door is airtight sealed for efficient heat retention. Oven includes 2 shelves (expandable up to 8) with adjustable height, each supporting a moderate load. Temperature range from ambient up to ~200 °C (as per manufacturer specification). Oven tested — heating, air circulation, temperature control, and door seal are all functional; appropriate for lab work, sample drying, material conditioning, and routine sample prep.

Specifications

• Chamber Volume: 2.0 cu ft / ~56 L

• Temperature Range: Ambient +10 °C up to 200 °C

• Temperature Stability: ±0.5 °C (steady state)

• Temperature Uniformity (at 150 °C): ±2.5 °C

• Heating / Convection: Forced-air (integrated fan for air circulation)

• Shelves: 2 standard, expandable up to 8 shelves

• Shelf Capacity: ~15 kg per shelf (≈ 33 lb)

• Internal Dimensions (W×H×D): ~400 × 415 × 330 mm (15.8″ × 16.3″ × 13.0″)

• External Dimensions (W×H×D): ~540 × 720 × 550 mm (21.3″ × 28.3″ × 21.7″)

• Power / Electrical: 120 V, 60 Hz, 1200 W

• Control System: Digital PID controller with LCD display; timer up to 99:59 (hh:mm) or manual control

Features

• Forced-air convection with integrated fan ensures uniform heat distribution and stable drying, reducing hot/cold zones.

• PID temperature control and digital display allow precise, reproducible temperature management — suitable for protocols needing accuracy.

• Stainless-steel chamber ensures durability, corrosion resistance, and easy cleaning.

• Adjustable shelving (up to 8) provides flexibility for different sample sizes or multiple batches.

• Compact 56 L capacity — ideal for small to medium-scale labs or benchtop setups needing reliable drying/curing oven.

• Airtight sealing door — maintains stable internal environment and efficient heating.

• Stable temperature uniformity (±2.5 °C at 150 °C) and stability ±0.5 °C — suitable for sensitive lab processes requiring consistency.

• Versatile use — sample drying, sterilization, curing, material conditioning, glassware drying, general lab heating, preparation, and storage.
