Benchmark Incuview Integrated Microscope Shelf for 180 Liter Incubators

Regular price $4,097.34
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at

Have questions or need Faster Shipping? Call 919-775-5596

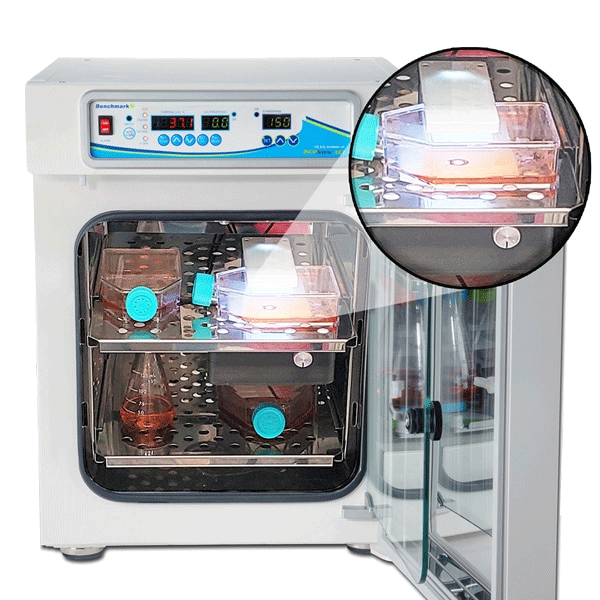

Benchmark Incuview Integrated Microscope Shelf for 180 Liter Incubator

Cell cultures depend on optimized growth conditions in order to thrive. With precise temperature and CO₂ control, Benchmark’s SureTherm™ Incubators provide the perfect environment for your cultures. All SureTherm™ Incubators feature a proprietary heat distribution system that combines six sided heating with a low speed internal fan. Air is circulated uniformly throughout the chamber without air exchange from the external environment. This results in a controlled, protected environment with minimal temperature fluctuations (within 0.1°C).

These are the first and only incubators equipped with our (patent pending) IncuView™ LCI (Live Cell Imaging)  technology for viewing cells in “real time”. An internal microscope and large, external display allow cells to be viewed without removal from the incubator, eliminating the inherent temperature fluctuations and risk of contamination. Cells are easily viewed on the large, integrated display or viewed locally or remotely with a wifi enabled phone, tablet or computer.*

* Cell viewing requires optional IncuView Integrated Microscope Shelf (Item H3565-45-LCI or H3565-180-LCI.)


Temperature Range: Ambient +5° to 60°C
Temperature Accuracy: ±0.1°C
Temperature Uniformity: ± 0.4°C*
Temperature Increments: 0.1°C
Temperature Stability: 0.1°C
CO₂ Range: 0 to 20%
CO₂ Increment: 0.1%
CO₂ Accuracy: ± 0.1%
CO₂ Sensor: Dual Beam IR CO₂ Sensor
Heat Decontamination: Yes (180HD & 180HDO2 Models ONLY)
O₂ Range: 0.5 to 20% (180HDO2 Model ONLY)
O₂ Accuracy: ±0.3% (180HDO2 Model ONLY)
Chamber Dimensions: (W x D x H) (45 Liter) 13.2 x 14.2 x 15.4 in. / 33.5 x 36.1 x 39.2 cm
Chamber Dimensions: (W x D x H) (180 Liters) 18.7 x 20.8 x 28 in. / 47.3 x 52.8 x 71 cm
Chamber Volume: 45 Liter / 180 Liter
Split Inner Door: 6 Compartments (180HDO2 Model ONLY)
Chamber Material Stainless Steel
Exterior Dimensions: (W x D x H) (45 Liter) 16.5 x 18.3 x 21.8 in. / 42 x 46.5 x 55.3 cm
Exterior Dimensions: (W x D x H) (180 Liters) 22 x 26.2 x 37.2 in. / 56 x 66.5 x 94.5 cm
Weight: (45 Liter) 77 lbs / 35kg
Weight: (180 Liters) 172lbs / 78kg
Electrical: 120V or 230V 50-60Hz
Power Consumption: 300W (H3565-45) / 420W (H3565-180) / 700W (H3565-180HD) / 700W (H3565-180HDO2)
Warranty: 2 years
