Benchmark Scientific BeadBug 6 Microtube Homogenizer
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596

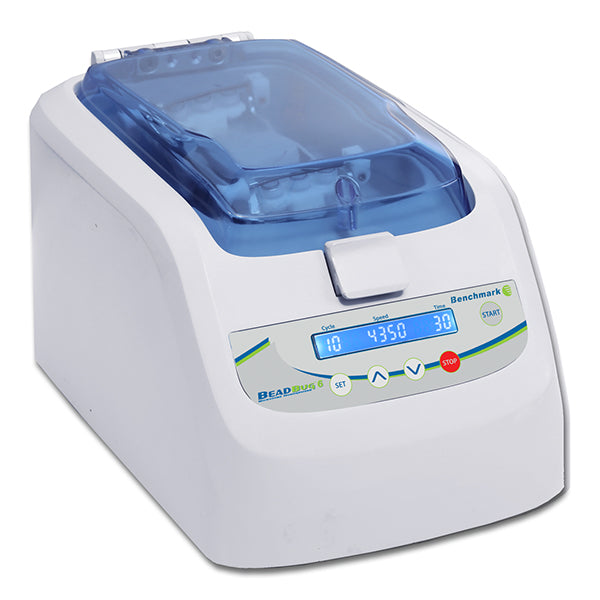

Benchmark Scientific BeadBug 6 Microtube Homogenizer Model # D1036
The BeadBug 6 joins the large capacity BeadBlaster 24 and personal sized BeadBug as the newest member of the Benchmark homogenizer line. Like the other members of the Benchmark Microtube Homogenizer family, the BeadBug 6 utilizes a three dimensional shaking motion to disrupt samples. This motion, when combined with beads of the appropriate size and material, causes high velocity impacts with the sample and is an extremely fast and efficient method for releasing cellular contents, including nucleic acids and proteins.
Many different sample types, from cells in culture to organ tissues and bone can be homogenized in the BeadBug 6, most within 45 seconds. Programming the unit is very simple - just set the speed, time, number of cycles and pause between cycles, then press start. For convenience, the last programmed parameters remain in memory for repeated runs. Sealed tubes prevent cross contamination in the BeadBug 6. Samples are simply loaded into the tubes along with the beads and placed in the unit for processing. After homogenization, tubes are spun briefly in a centrifuge, and the lysate removed with a pipette.
Designed to fit the needs of medium throughput laboratories, the BeadBug 6 can simultaneously process up to six samples in 2.0ml tubes. With optional adapters, the unit will also accept two 5.0ml tubes. A full range of bead materials and sizes are available in both prefilled tubes and in bulk to meet all your sample processing needs.
- Fast, efficient bead homogenization
- Process up to 6 samples simultaneously
- For all sample types, from soft tissue to bone
- Accepts 2.0ml or 5.0ml tubes
- Full range of bead materials and sizes are available
| Speed Range: | 4.0 to 7.0 m/s (0.05 m/s increments) |
| Capacity: | 6 x 2.0ml or 2 x 5.0ml* |
| Cycle Time: | 1 to 90 sec. (up to 90 sec.) |
| Pause between cycles: | 0 to 90 sec. (1 sec. increments) |
| Max, cycles per program: | 10 |
| Program Memorys: | up to 50 |
| Noise Level: | <65 db |
| Dimensions: | 8.6 x 14 x 8 in. 22 x 35.5 x 20.5 cm |
| Weight: | 20 lbs /9kg |
| Warranty: | Two Years |
| Electrical:: | 100 to 240V, 50-60Hz |
| * 5.0ml capacity requires optional adapters |
Additional parts may be required. Please refer to brochure and request a quote
Ordering Information
D1036* BeadBug 6 Microtube Homogenizer
D1036-A5 5ml adapters for BeadBug 6, set of 2
Tube Kits, prefilled with screw cap, 50 tubes/pack
D1032-01 Triple-Pure Zirconium, Ø 0.1mm, 2ml
D1032-05 Triple-Pure Zirconium, Ø 0.5mm, 2ml
D1032-10 Triple-Pure Zirconium, Ø 1.0mm, 2ml
D1032-15 Triple-Pure Zirconium, Ø 1.5mm, 2ml
D1032-30 Triple-Pure Zirconium, Ø 3.0mm, 2ml
D1033-28 Stainless steel, Ø 2.8mm, 2ml
D1032-60 Ceria based Zirconium, Ø 6.0mm, 2ml
D1034-MX Mixed format for soil, 2ml
D1034-28 Stainless Steel, Ø 2.8mm, 5ml**
Empty tubes
D1031-T20 2.0ml tubes, pk of 1000
D1031-RF 2.0ml tubes, pk 100, reinforced
C1005-SC5 5.0ml tubes, pk 500
Other bead types and bulk beads available. Call for details.
*115V with US plug. For EU plug, please add -E to cat no.
** Requires the use of 5ml adapters, sold separately
