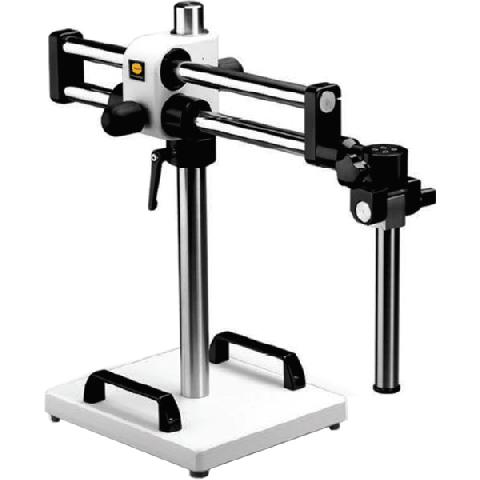

SMS20-31 Heavy Duty Boom Stand for Olympus SZX2-FO, SZX2-FOF, SZX2-FOFH, SZX2-AO2

This boom stand series is designed for support of large research grade stereo microscopes while providing them with fluid motion in a horizontal plane.

The horizontal arm is mounted on linear ball bearing units in the solid aluminum cross slider. Locking the arm in position is quickly accomplished with secure soft-grip knobs. The stereo microscope is mounted via the SPOT™ heavy duty tilt and swivel mount that allows smooth movement and rigid locking. Various base mounting options are: a weighted base, a rugged table clamp and a 1/4″-20 grid table mount system that can be used on standard tables.

Features

• Heavy duty linear ball bearing mounted horizontal arm provides smooth motion
• Solid aluminum cross slider block ensures superior rigidity
• Large 43.7mm (1.72″) diameter, precision ground, stainless steel vertical pole
• Anti-corrosion surfaces of stainless steel, anodized aluminum, plated steel and catalyzed epoxy
• 24″ tall vertical pole standard, custom lengths available
• 27.75″ long horizontal arm provides 22″ of travel to support inspection of large samples
• Heavy duty tilt and swivel mount for current and legacy stereo microscope models
• Variety of base mounting systems

Product Documents

• Brochure
