Features:

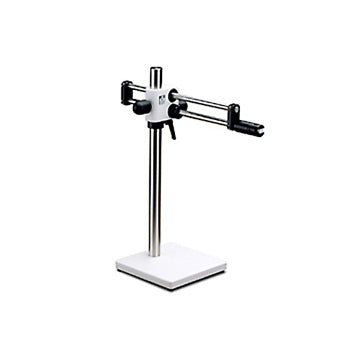

The SMS6B ball bearing boom stand is optimized for routine inspection of large samples where fluid motion in a horizontal plane is required.

The horizontal arm is mounted on linear ball bearing units in the solid aluminum cross slider. Locking the arm in position is quick and easy with the secure soft-grip knobs. The stereo microscope mounting is via the industry standard 5/8" bonder socket. Non-bonder style focus mounts are easily accommodated via tilting and non-tilting adapters. Weighted Base 10.25" square by 1" thick..

Key Features

• Linear ball bearing mounted horizontal arm provides smooth motion
• Solid aluminum cross slider block ensures superior rigidity
• Large 38mm (1.47") diameter, precision ground, stainless steel vertical pole
• Anti-corrosion surfaces of stainless steel, anodized aluminum, plated steel and catalyzed epoxy provide lasting durability
• 15.75" or 24" tall vertical pole standard, custom lengths available
• 22.4" horizontal arm provides 18.5" of travel to support inspection of large samples
• Standard 5/8" diameter bonder mount socket for standard stereo microscope focus mounts
• Adapters available for most current and legacy stereo microscope focus mounts, and for cameras with 1/4"-20 thread mounts
• Variety of base mounting systems
