Product Overview

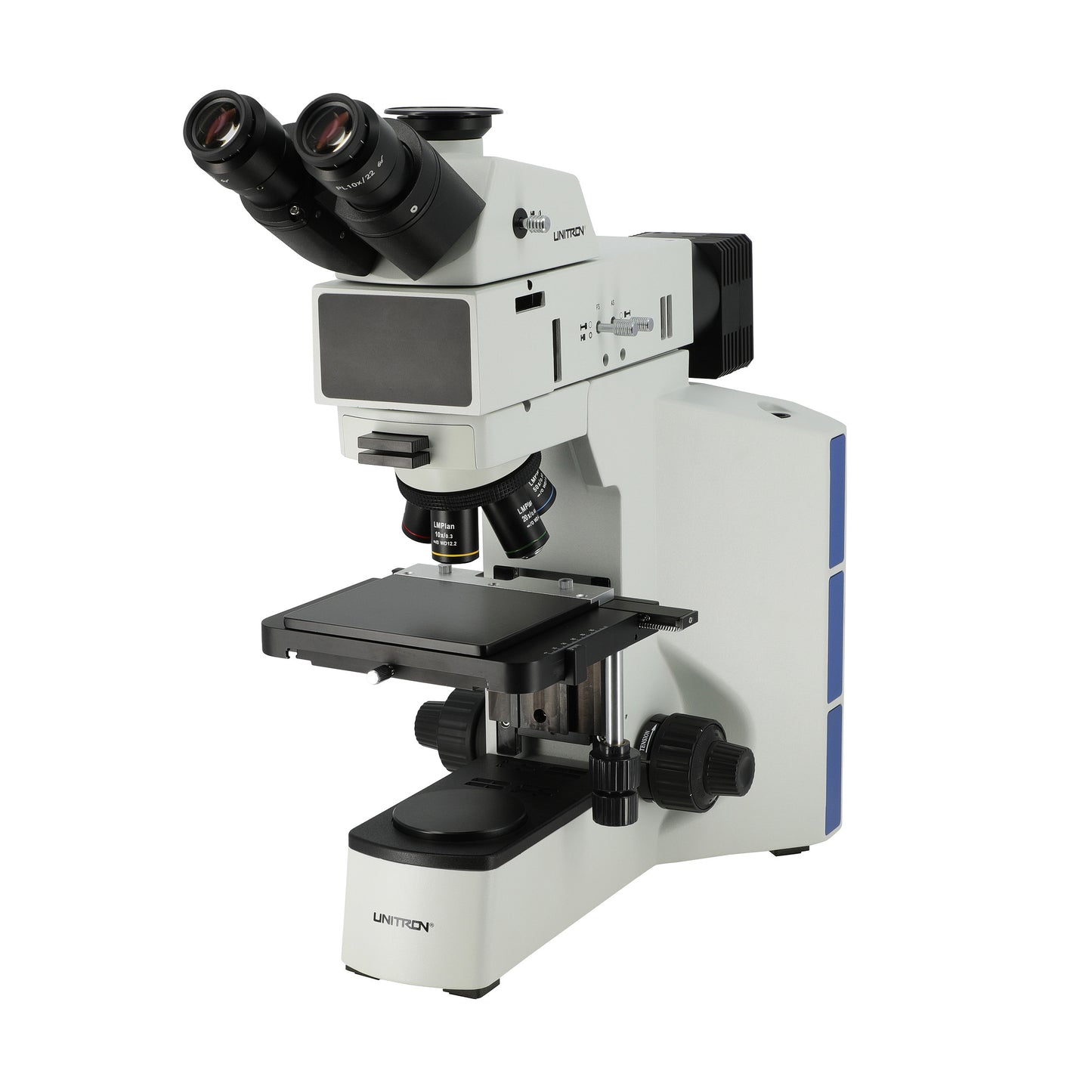

The UNITRON EXAMET-5 is an upright metallurgical microscope with reflected LED illumination for inspection of opaque materials.

Key Features

• Objectives: 5×, 10×, 20× LWD M Plan; 50× semi-Apo
• Viewing head: 30° trinocular
• Lighting: 5 W variable reflected LED
• Stage: 175 × 145 mm mechanical stage
• Observation height: Up to 50 mm

What Can This Product Be Used For?

• Metal surface inspection
• Manufacturing quality control
• Materials microstructure examination

Technical Specifications

Compatibility & Ordering

Confirm microscope and accessory configuration before ordering. Microscope Marketplace can assist with technical selection.

Manufacturer Resources

UNITRON official microscope information

Additional Product Details

Specifications

• Trinocular viewing head, inclined 30°; viewing split 100% binocular, or 50% binocular / 50% trinocular
• Widefield 10x eyepieces with a 23mm field of view
• Infinity LWD M Plan Achromat 5x, 10x, 20x objectives, Infinity LWD M Plan semi-Apo 50x objective
• Reversed quintuple nosepiece
• Interpupillary distance adjustment 54mm – 75mm
• Mechanical Stage (175mm x 145mm), 76mm (X) x 42mm (Y) movement range; slide holder not included
• Low position coaxial focusing system with tension adjustment
• Observation height of up to 50mm
• 5-watt variable LED reflected illuminator with field and aperture diaphragm
• Universal power supply (90v-240v)
• Shipping weight 40lbs.
