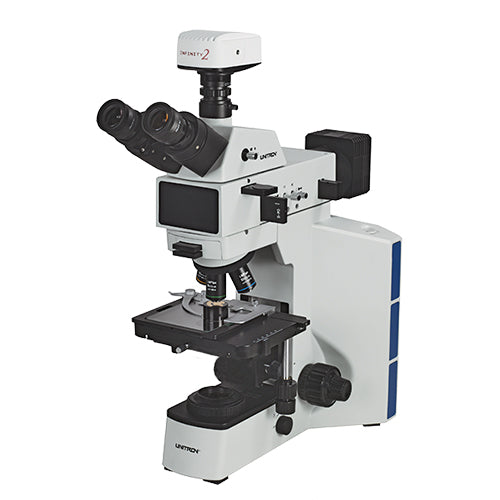

Unitron EXAMET-5 Metallurgical Microscope with Reflected & Transmitted Illumination
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The UNITRON EXAMET-5 is an upright metallurgical microscope with reflected and transmitted LED illumination for materials science and industrial inspection.
Key Features
- Objectives: 5×, 10×, 20× LWD M Plan; 50× semi-Apo
- Viewing head: 30° trinocular
- Lighting: 5 W reflected LED and 5 W transmitted LED
- Stage: 175 × 145 mm mechanical stage
- Observation height: Up to 30 mm
What Can This Product Be Used For?
- Metallurgical sample inspection
- Examining wafers and composites
- Industrial quality control
Technical Specifications
| Objectives | 5×, 10×, 20× LWD M Plan; 50× semi-Apo |
|---|---|
| Viewing head | 30° trinocular |
| Lighting | 5 W reflected LED and 5 W transmitted LED |
| Stage | 175 × 145 mm mechanical stage |
| Observation height | Up to 30 mm |
Compatibility & Ordering
Confirm microscope and accessory configuration before ordering. Microscope Marketplace can assist with technical selection.
Manufacturer Resources
UNITRON official microscope information
Additional Product Details
The EXAMET-5 is a new industrial metallurgical microscope designed for brightfield, material science applications, metal manufacturing, metallurgy, fabrics/textiles, wafers, optoelectronics, composites and microelectronics.
The advanced Semi-Apo LWD M Infinity Plan Optics, ergonomic design, and digital capabilities make the EXAMET-5 Series an outstanding and cost effective choice for today’s modern metallurgist. The EXAMET-5 Series is available with either reflected illumination or with reflected and transmitted illumination.
Specifications
- Trinocular viewing head, inclined 30°; viewing split 100% binocular, or 50% binocular / 50% trinocular
- Widefield 10x eyepieces with a 23mm field of view
- Infinity LWD M Plan Achromat 5x, 10x, 20x objectives, Infinity LWD M Plan semi-Apo 50x objective
- Reversed quintuple nosepiece
- Interpupillary distance adjustment 54mm – 75mm
- Mechanical Stage (175mm x 145mm), 76mm (X) x 42mm (Y) movement range
- Low position coaxial focusing system with tension adjustment
- Observation height of up to 30mm
- 5-watt variable LED reflected illuminator with field and aperture diaphragm
- 5-watt LED transmitted illuminator with field diaphragm
- Condenser with swing-out top lens, condenser iris diaphragm, N.A. 0.9
- Universal power supply (90v-240v)
- Shipping weight 43lbs.
