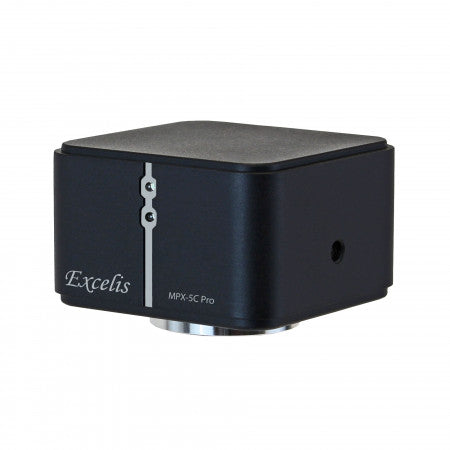

Accu-Scope Excelis™ MPX-5C Pro Camera
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The Excelis MPX-5C Pro combines a Sony Pregius global-shutter sensor with fast live viewing and sensitive color imaging. It is suited to routine laboratory documentation and applications involving moving specimens.
Key Features
CaptaVision+ imaging and measurements; exposures up to 15 seconds; one-year warranty.
What Can This Microscope Camera Be Used For?
- Capturing tissue and histology images
- documenting live specimens
- fluorescence imaging with appropriate optics
- teaching and laboratory presentations.
Application suitability depends on the microscope configuration, illumination, and accessories.
Technical Specifications
| Sensor | Sony Pregius IMX264LQR-C color CMOS |
|---|---|
| Resolution | 5 MP |
| Full-resolution live rate | 35 fps |
| Shutter | Global |
| Mount | C-mount |
| Recommended adapter | 0.65× |
| Connection | USB 3.0 |
Compatibility & Ordering
Confirm C-mount adapter, computer, software, and illumination compatibility before purchase. Microscope Marketplace can help you select an appropriate system.
Manufacturer Resources
Official ACCU-SCOPE manufacturer information
Related Microscopy Equipment
Ask our microscopy specialists about compatible cameras, adapters, lighting, and microscope accessories.
Camera Software Downloads
Download the manufacturer's ACCU-SCOPE Excelis camera software and manuals, including CaptaVision+ for supported Windows and macOS systems. Choose the version appropriate for your camera serial number and operating system; availability and compatibility vary by model.
