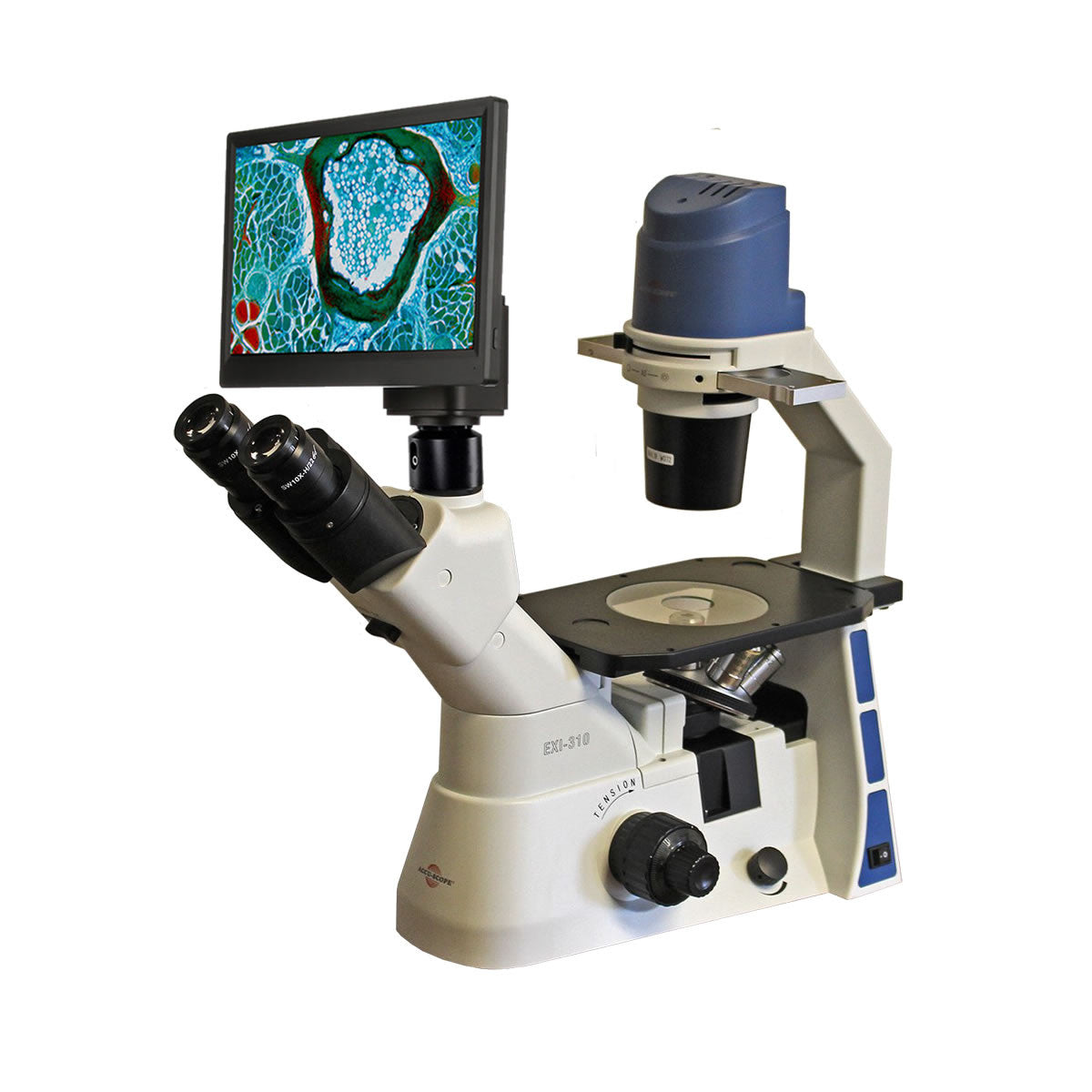

Specifications

• Optical System: AIS Infinity Optical System, anti-fungal.
• Observation Method: Brightfield, Phase Contrast.
• Viewing Body: Trinocular, inclined 45°; Interpupillary distance: 54-75mm, Siedentopf type; Eyepiece/camera port (standard): 100/0:80/20.
• Eyepieces: WF10x/22mm field of view focusable eyepieces with roll-down eyeguards; Optional 15x/16mm, 20x/12.5mm.
• Nosepiece: Side facing quintuple nosepiece.
• Objectives: LWD Plan Achromat 4x, LWD Plan Phase 10x and 20x.
• Stage: Fixed, plain stage, 160mm x 250mm with glass and aluminum insert plates; (Optional attachable mechanical stage right hand coaxial control, movement range 120mm x 78mm).
• Condenser: ELWD Condenser N.A. 0.3, W.D. 72mm.
• Slider: Pre-centered phase slider 4x/10x, 20x/40x annuli and BF position; secondary slider for filters for enhanced illumination techniques.
• Stand: Cast alloy aluminum
• Illumination: 5-watt LED with variable intensity control; LED bulb is rated for over 25,000 hours of continued use; universal power supply 1li-240v
• Focusing: Coaxial coarse and fine focus with adjustable tension control; all brass gears.
• Accessories: Green 550nm interference and ground glass, Dust cover and instruction manual.
• Certification: ISO 9001: 2018 and ISO 14001: 2018; UL approved; CE anti-mold.

The most distinctive feature of a tissue culture microscope is its inverted design. In traditional microscopes, the light source and objective lenses are located above the specimen stage, while in inverted microscopes, these components are located below the stage. This design allows for the examination of cells and tissues that are grown in culture dishes, flasks, or other containers.
