Product Overview

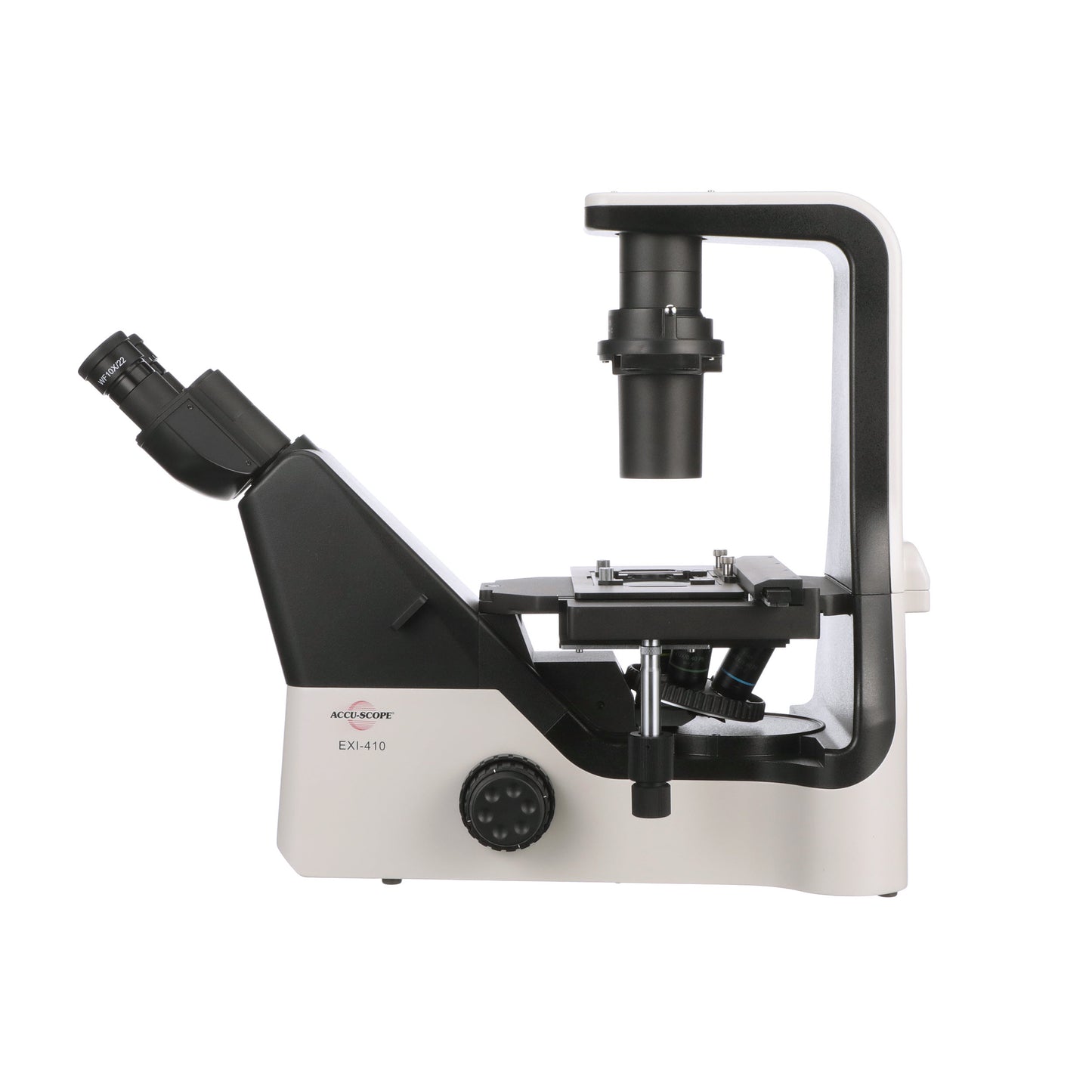

The ACCU-SCOPE EXI-410 is an inverted tissue-culture microscope configured with phase-contrast objectives for observing cells and specimens in culture vessels.

Key Features

• Objectives: Plan 4×; Plan Phase 10× and 20×
• Viewing head: 45° binocular with side camera port
• Eyepieces: WF10×/22 mm
• Condenser: ELWD NA 0.3; 75 mm working distance
• Illumination: Variable transmitted LED
• Stage: 170 × 250 mm fixed stage

What Can This Microscope Be Used For?

• Live-cell and tissue-culture observation
• Phase-contrast examination of transparent specimens
• Cell culture documentation with compatible camera

Technical Specifications

Compatibility & Ordering

The 40× phase objective is shown as optional in the original listing. Confirm selected objectives and camera compatibility before ordering; the original listing notes this phase-contrast configuration is not upgradeable to fluorescence.

Manufacturer Resources

Official manufacturer resources

Additional Product Details

• EXI-410 Binocular with Plan Phase Objectives
• Binocular viewing head, inclined 45°, with attachable side mounted camera port
• Binocular viewing head can be rotated to raise/lower eyetubes by 35mm
• Eyepiece/Camera Port: 100/0 or 0/100
• WF10x/22mm eyepieces with roll down eyeguards
• Side facing quintuple nosepiece
• Infinity Corrected Plan 4x, Plan Phase 10x & 20x objectives. Shown with optional 40x Plan Phase objective.
• Fixed plain stage, 170 x 250mm with glass insert plates - Ø30mm
• ELWD condenser, N.A. 0.3, Working Distance = 75mm
• Phase slider with 4x/10x/20x/40x phase annulli
• Variable LED diascopic illuminator
• Dust cover, power cord, Universal power supply 100 - 240v
• NOTE: The EXI-400-PH is not upgradable to fluorescence.
