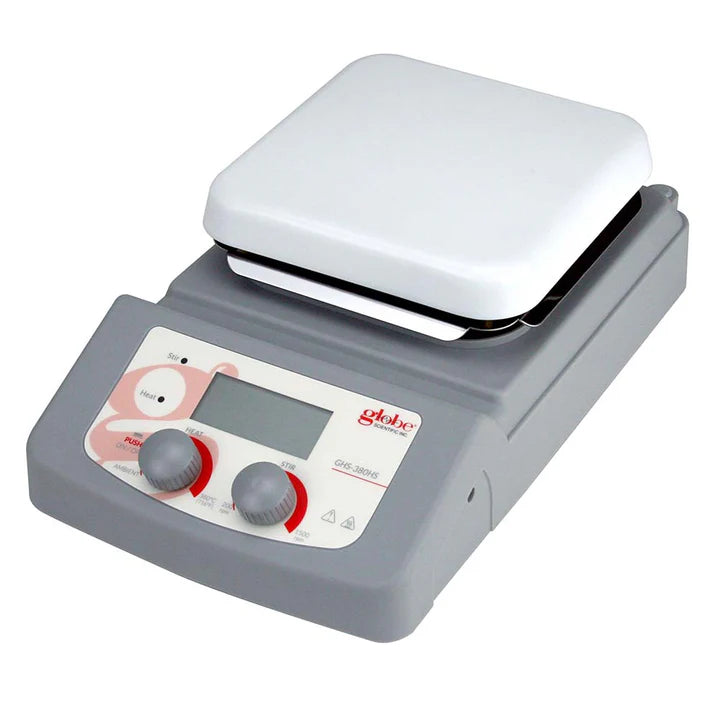

Globe Scientific GHS-380 Group Hotplates & Stirrers | GHS-380HS

The GHS-380 group of Hotplates, Magnetic Stirrers and Magnetic Stirrer Hotplates are reliable and easy to use.  The low profile and small footprint save valuable workspace.  Clean up is easy with a robust chemical resistant ceramic-coated 5.5-inch square surface to ensure years of service.

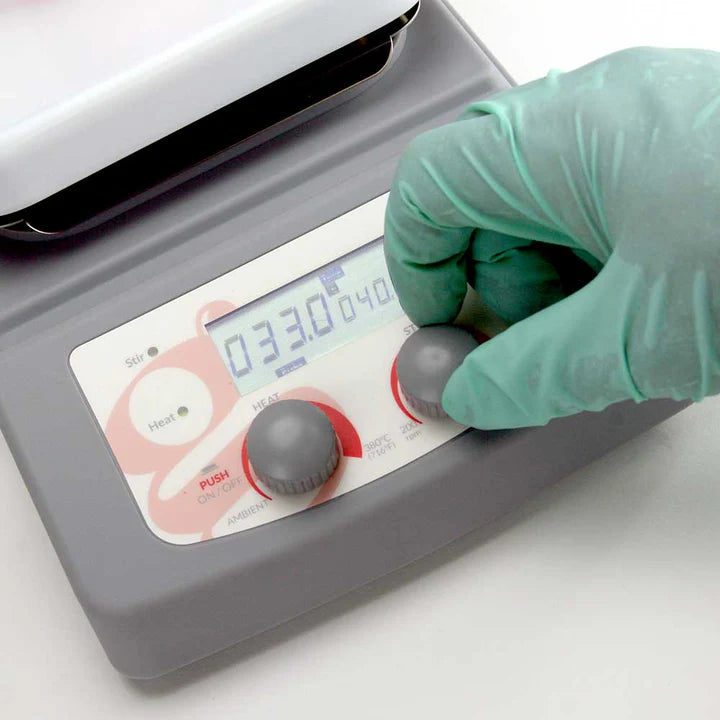

Selecting the heat and stirring speed is extremely intuitive with a digital LCD display and control knobs, inputting to a microprocessor-controlled circuit for accurate, stable control of heating and stirring.

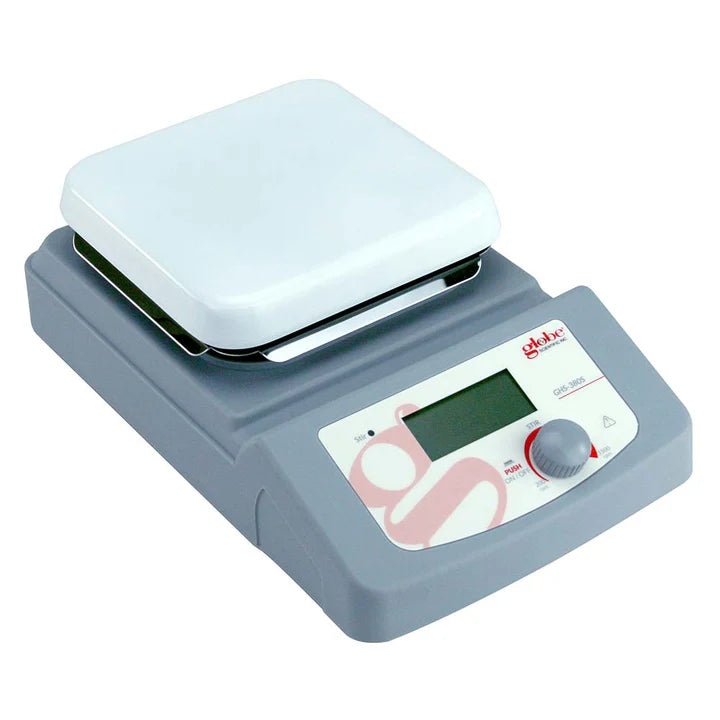

The Magnetic Stirrer and Hotplate Magnetic Stirrer Models are designed to provide a strong magnetic coupling for powerful mixing that is enabled by the maintenance free brushless DC motor.  The stirrers can mix up to 5 liters of water, which allows for excellent homogeneity of solutions.

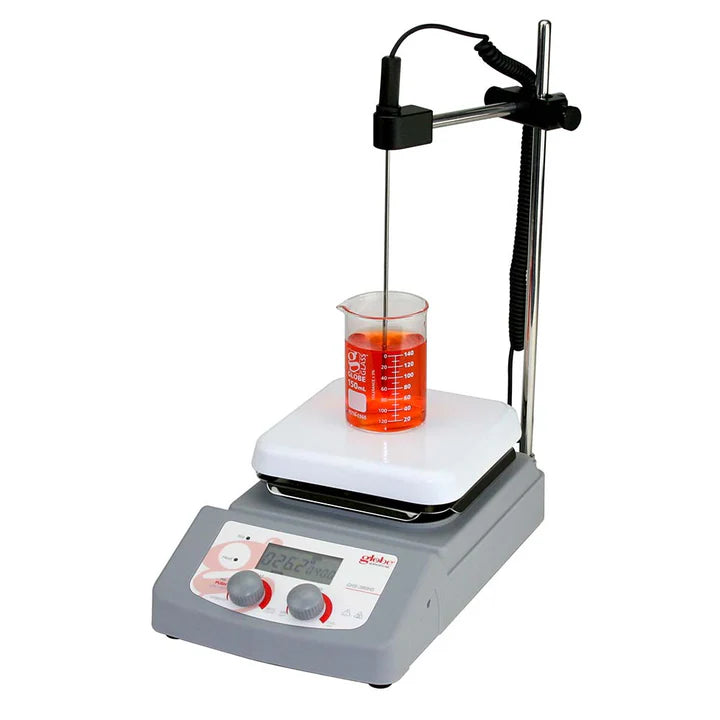

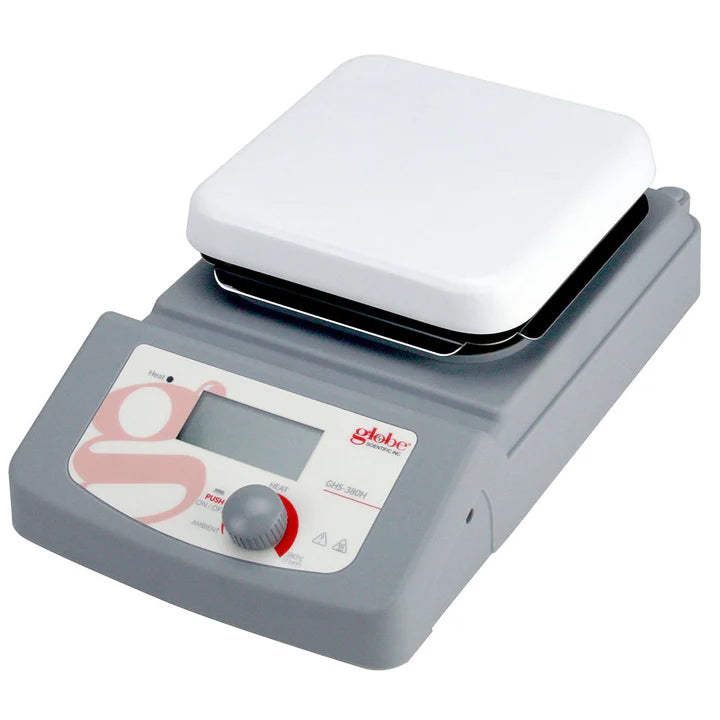

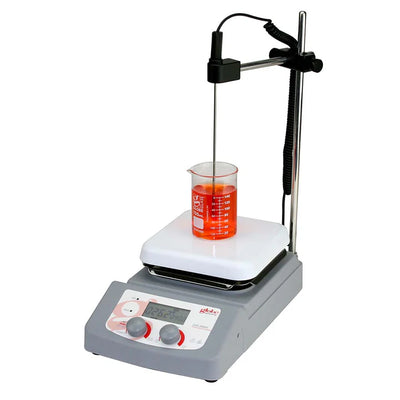

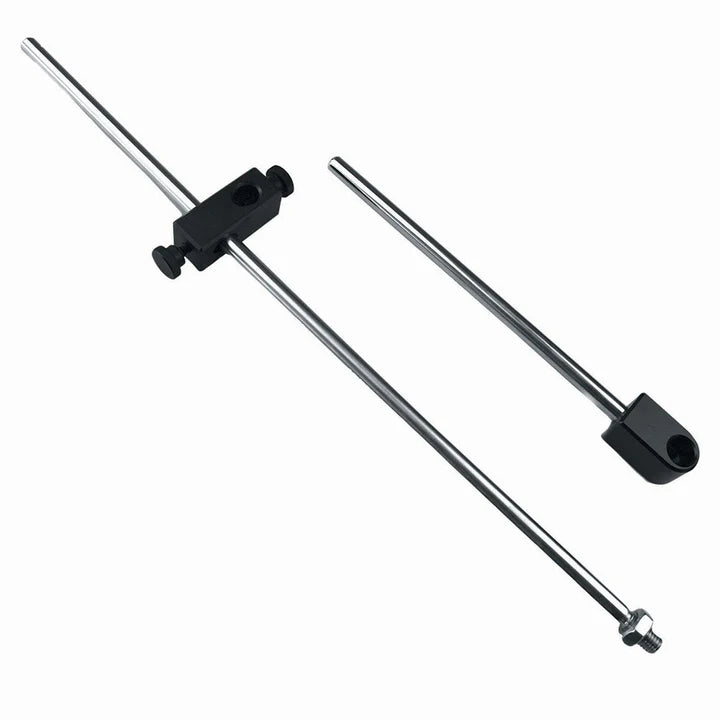

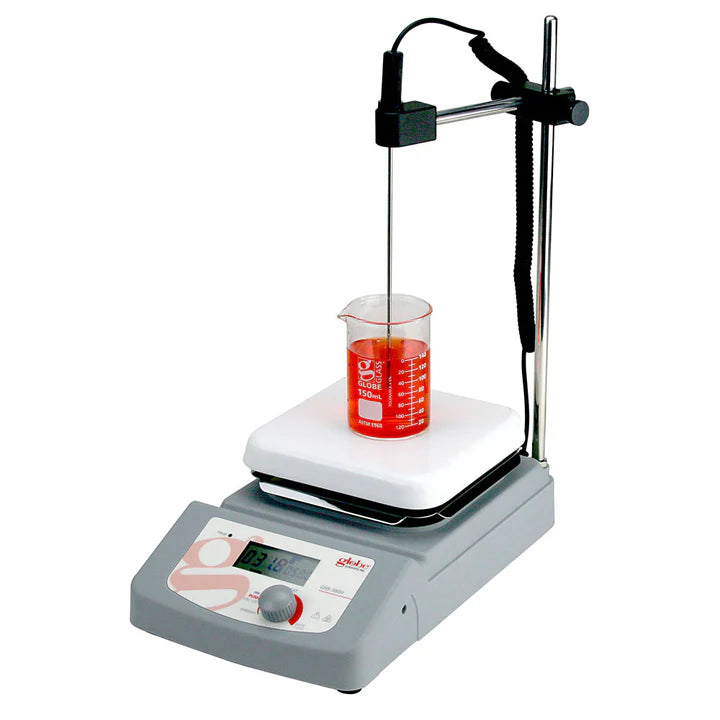

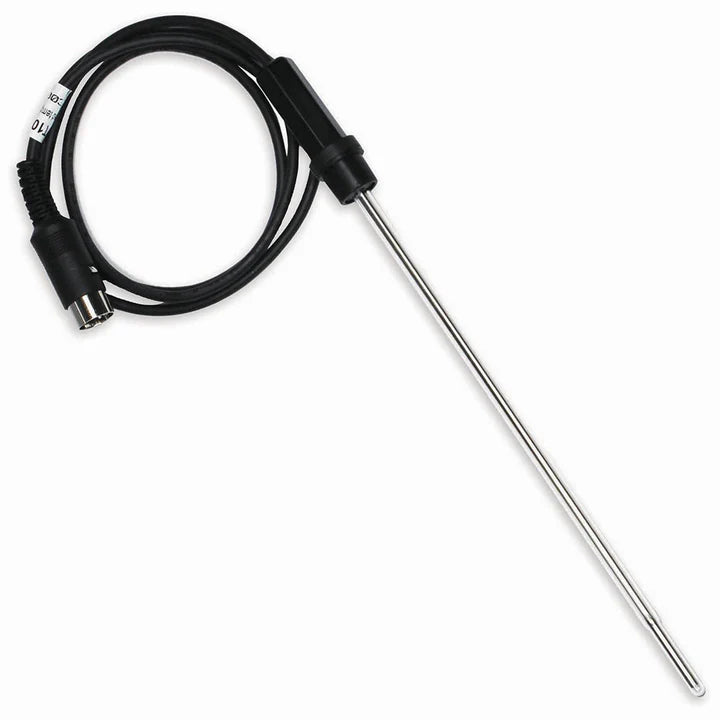

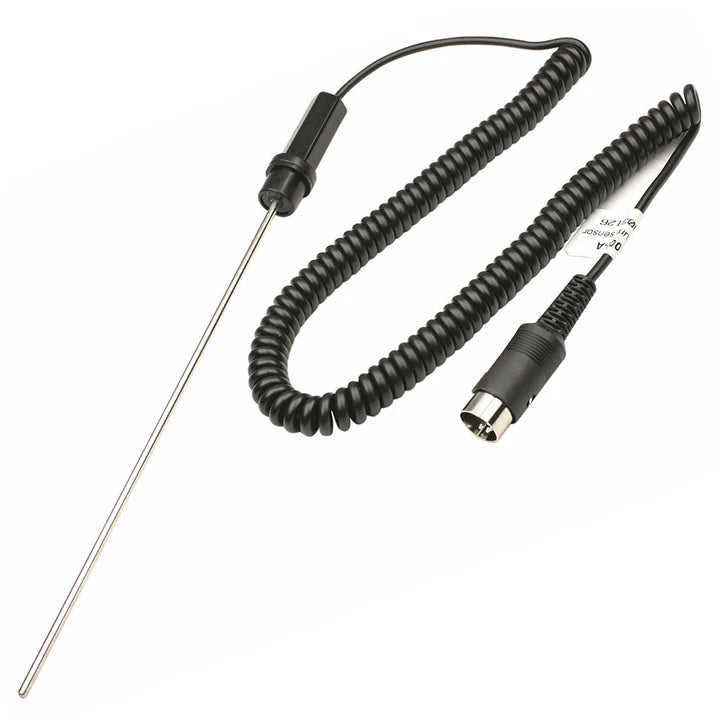

The Hotplate and Hotplate Magnetic Stirrer models are designed with a powerful 500-watt heater that provides temperatures up to 380°C.  For ultimate accurate temperature control within 0.5°C, an optional PT1000 sensor and retort stand are available to measure directly in the vessel.  Overtemperature protection is added should temperatures reach 420°C.

Features:

  • Simple, intuitive operation
  • Maintenance-free brushless DC motor
  • Small footprint saves valuable bench space
  • Powerful 500W heater
  • Easy-to-clean ceramic coated aluminum surface
  • Easy-to-read high resolution LCD display for simple, clear control
  • Powerful magnetic coupling for stirring up to 5L of water
  • Optional external temperature sensor control

Specifications:


Type

Hotplate Stirrer

Hotplate

Stirrer

Model

GHS-380HS

GHS-380H

GHS-380S

Working area

140mm W x 140mm D (5.5in W x 5.5in D)
Working area material ceramic-coated aluminum
Heating power 500W 500W -
Temperature range Ambient +5°C to 380°C Ambient +5°C to 380°C -
Maximum stir volume 5L - 5L
Stirring speed range 200-1500rpm - 200-1500rpm
Stir bar length 50mm (2in) - 50mm (2in)
Voltage 100-120v 60Hz or 200-240v 50Hz
Power 510W
Dimensions [WxDxH] 320×180×108mm / 12.6 x 7.1 x 4.3in
Weight 2.2kg / 4.9lbs
Operating temperature 5-40°C
Permissible relative humidity 80%RH (non-condensing)
Protection Class IP21
