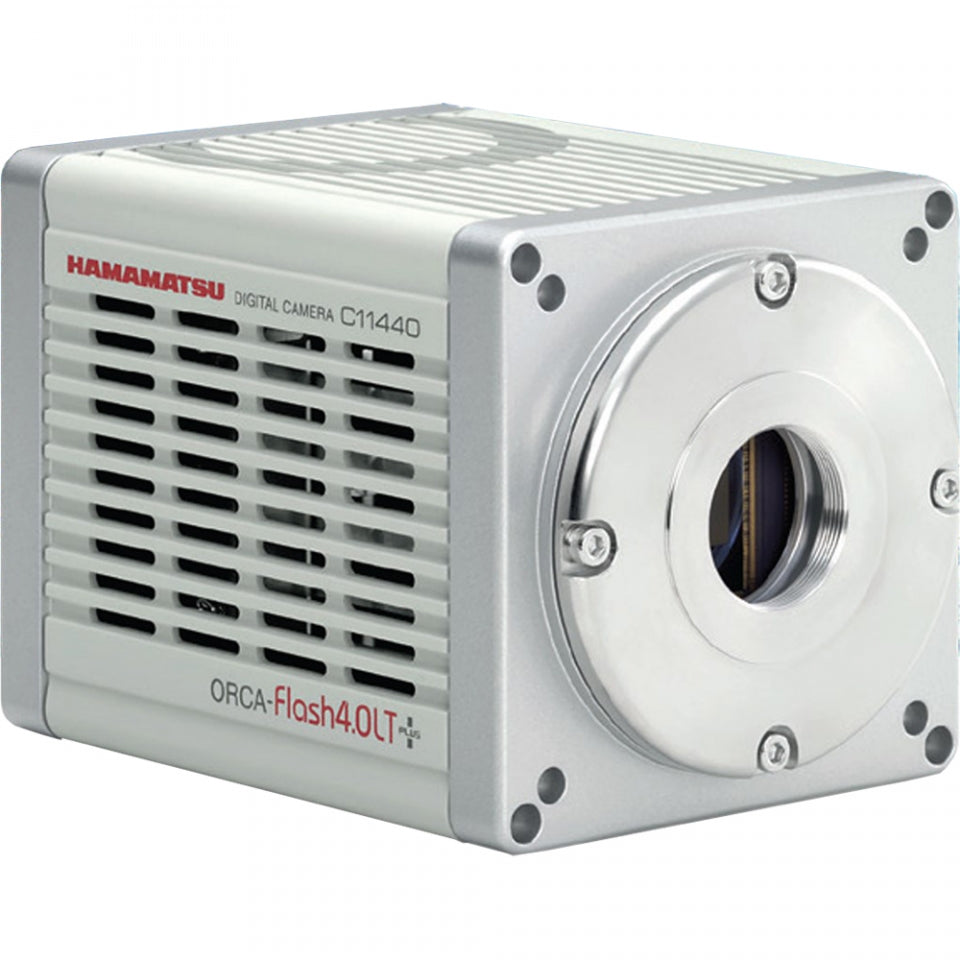

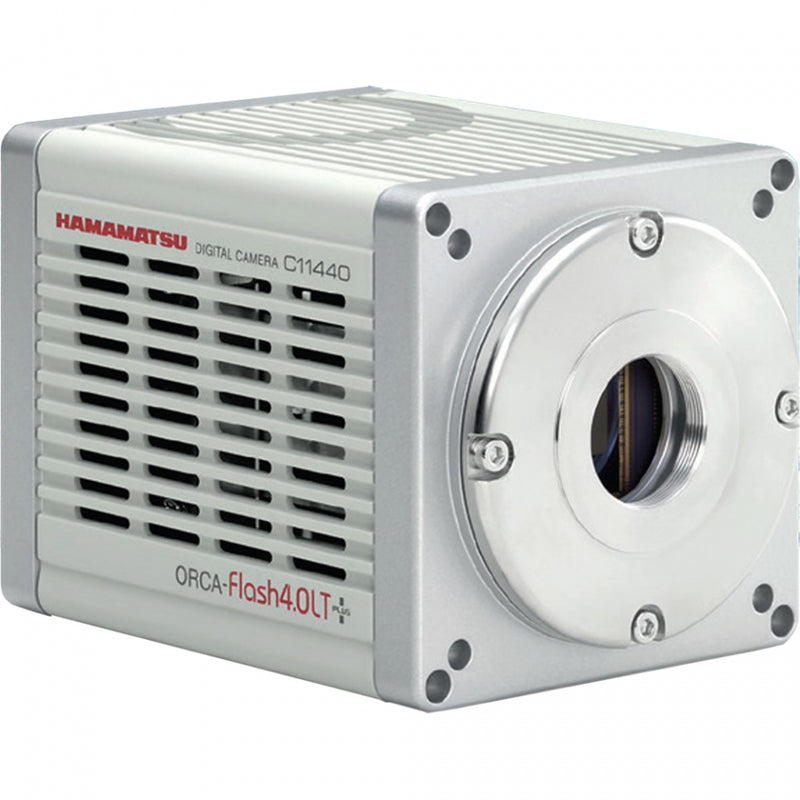

Hamamatsu ORCA-Flash4.0 LT C11440-42U
Explore more with sCMOS
Want to make the jump from a traditional CCD but need both the increased flexibility and sensitivity of a scientific CMOS (sCMOS) camera? With established performance and an affordable price, the newly re-designed ORCA-Flash4.0 LT+ featuring 82 % peak quantum efficiency fits into any experiment that needs simple connectivity, moderately fast frame rates, and great sensitivity. The ORCA-Flash4.0 LT+ is designed to bring all the advantages of sCMOS technology―wide field of view, low-light sensitivity, and large dynamic range―to every research lab. Easy connectivity and powerful performance help you explore your pressing biological questions. Think of all that LT+ can help you discover.
Application
- Multi-dimensional imaging
- 3D imaging
- Ca2+imaging
Specifications
| Type number | C11440-42U30 |
|---|---|
| Imaging device | Scientific CMOS image sensor |
| Effective no. of pixels | 2048 (H)×2048 (V) |
| Cell size | 6.5 μm×6.5 μm |
| Effective area | 13.312 mm×13.312 mm |
| Full well capacity | 30 000 electrons |
| Readout speed | 30 frames/s |
| Readout noise | 1.5 electrons (rms) 0.9 electrons (median) |
| Cooling temperature | +10 ℃ (Passive-air cooled, Ambient temperature: +25 °C) |
| Dark current | 0.6 electrons/pixel/s (typ.) (Air cooled, Cooling temperature: +10 °C) |
| Dynamic range | 33 000:1 (typ.) |
| Sub-array | Yes |
| Binning | 2×2, 4×4 |
| External trigger input | Edge, Level, Synchronous readout, Start trigger Global reset (Edge/Level) W-View mode with different exposure time (Edge/Start) |
| Trigger output | Global exposure output, Trigger ready output Output Signal Ports (3) Continuous High/Low output Multi-channel sync |
| Interface | USB 3.0 |
| A/D converter | 16 bit |
| Lens mount | C-mount |
Spectral response
Dimensions
